Hobo TidbiT MX Temp 400 Quick Start

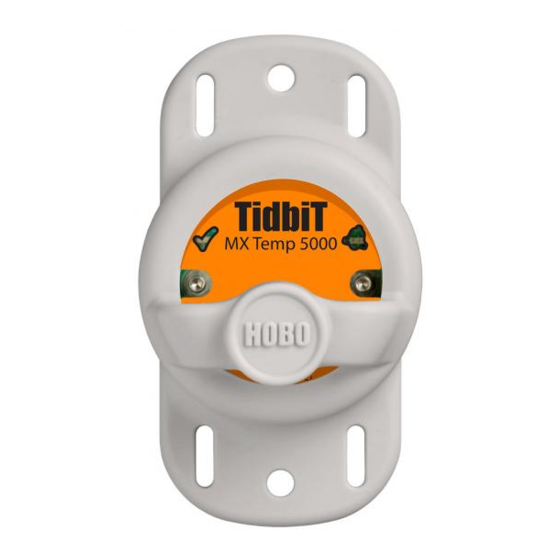

Quick Start for the HOBO® TidbiT® MX Temp 400 (MX2203) & Temp 5000 (MX2204) Logger
• Download HOBOconnect® to a phone or tablet from the App
1
Store® or Google Play™.
• Download HOBOconnect to a Windows® computer from
www.onsetcomp.com/products/software/hoboconnect.
2
Open the app. Enable Bluetooth® in your device settings if
prompted.
3
Firmly press the magnetic HOBO button
near the center of the logger to wake it up.
Both LEDs on the logger will blink once
when it wakes up. Tap Devices in the app.
Tap the logger in the app to connect to it. If
the logger does not appear in the list, make
sure the logger is within range of your
phone, tablet, or computer.
4
Tap to set up the logger. Choose your logger settings.
Note that the default Bluetooth setting for the logger is Bluetooth
Always On, which means it will "advertise" or regularly send out a
Bluetooth signal for the phone, tablet, or computer to find via the
app. This setting uses battery power. You can change this to one
of the following power saving modes:
21539-H MAN-MX2203-MX2204-QSG
Quick Start for the HOBO® TidbiT® MX Temp 400 (MX2203) & Temp 5000 (MX2204) Logger
• Download HOBOconnect® to a phone or tablet from the App
1
Store® or Google Play™.
• Download HOBOconnect to a Windows® computer from
www.onsetcomp.com/products/software/hoboconnect.
2
Open the app. Enable Bluetooth® in your device settings if
prompted.
3
Firmly press the magnetic HOBO button
near the center of the logger to wake it up.
Both LEDs on the logger will blink once
when it wakes up. Tap Devices in the app.
Tap the logger in the app to connect to it. If
the logger does not appear in the list, make
sure the logger is within range of your
phone, tablet, or computer.
4
Tap to set up the logger. Choose your logger settings.
Note that the default Bluetooth setting for the logger is Bluetooth
Always On, which means it will "advertise" or regularly send out a
Bluetooth signal for the phone, tablet, or computer to find via the
app. This setting uses battery power. You can change this to one
of the following power saving modes:
21539-H MAN-MX2203-MX2204-QSG
Firmly press this button for
1 second to wake up the logger
Firmly press this button for
1 second to wake up the logger
• Bluetooth Always Off. The logger will only advertise when you
press the HOBO button on the protective logger boot to wake
it up.
• Bluetooth Off Water Detect. The logger will only advertise
when it is out of water. When it is in water, the Bluetooth
signal is automatically disabled.
Tap to save the settings to the logger.
The logger will begin logging data based on the settings you
selected. Press the HOBO button for 3 seconds If you configured
the logger to start logging with a button push (logger LEDs will
blink 4 times).
Press this button for
3 seconds to start
the logger (if
configured with a
button push)
• Bluetooth Always Off. The logger will only advertise when you
press the HOBO button on the protective logger boot to wake
it up.
• Bluetooth Off Water Detect. The logger will only advertise
when it is out of water. When it is in water, the Bluetooth
signal is automatically disabled.
Tap to save the settings to the logger.
The logger will begin logging data based on the settings you
selected. Press the HOBO button for 3 seconds If you configured
the logger to start logging with a button push (logger LEDs will
blink 4 times).
Press this button for
3 seconds to start
the logger (if
configured with a
button push)
