Summary of Contents for Prorack K765

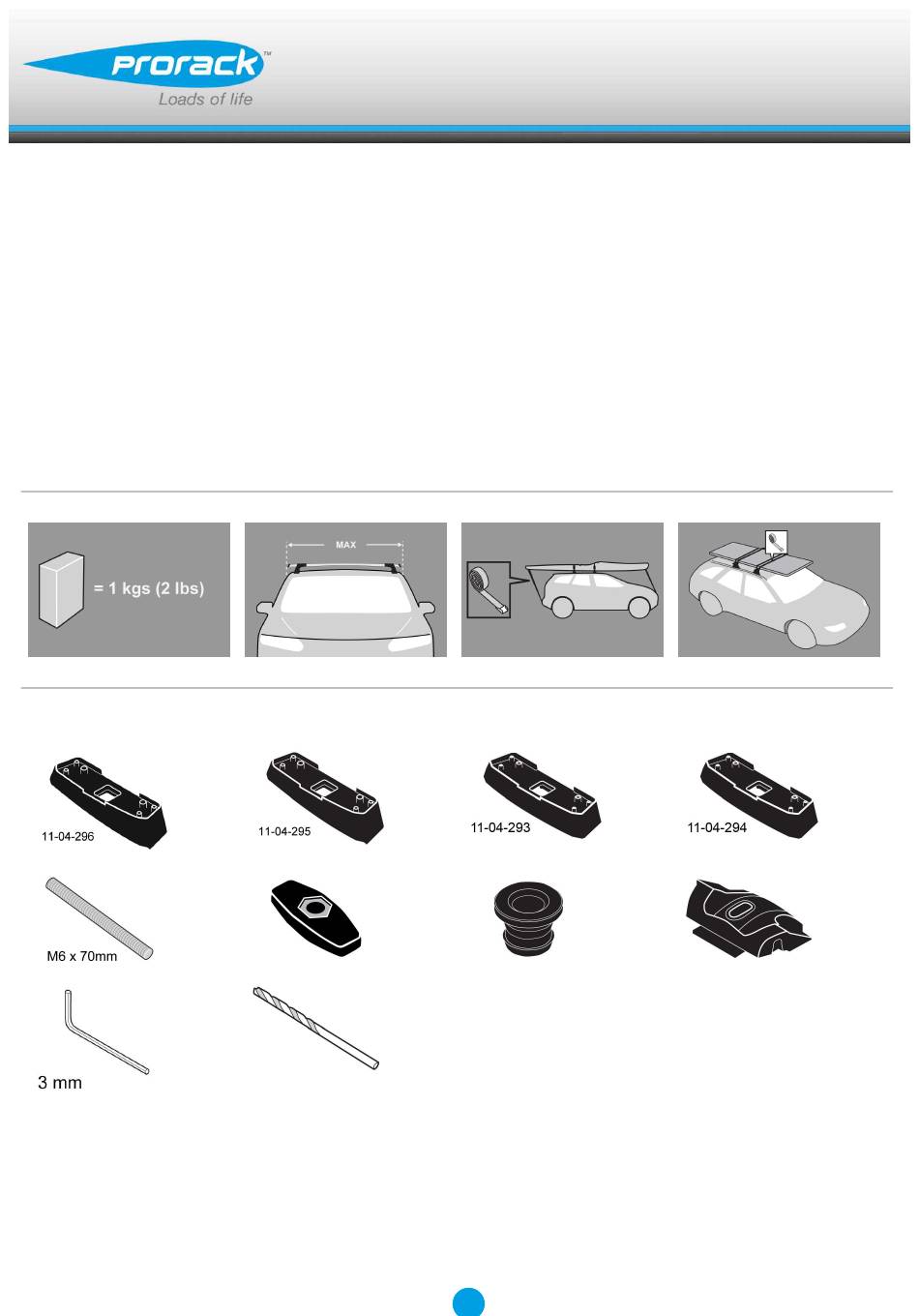

- Page 1 K765 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 6F...
- Page 2 Fitting Kit K765 MAX kgs (lbs) Mazda 3, 5dr Hatch Oct 13-+ 75 kgs (165 lbs) 75 kgs (165 lbs) 3, 5dr Hatch Oct 13-+ 75 kgs (165 lbs) 75 kgs (165 lbs) 3, 5dr Hatch Oct 13-+ 75 kgs (165 lbs)
- Page 3 Fitting Kit K765 3, 5dr Hatch Oct 13-+ (NZ) -250mm 440mm 940mm 880mm -9 -13/16ths" 17 5/16ths" 37" 34 5/8ths" 3, 5dr Hatch Oct 13-+ (AU) -250mm 440mm 940mm 880mm -9 -13/16ths" 17 5/16ths" 37" 34 5/8ths" 3, 5dr Hatch Oct 13-+ (EU)
- Page 4 Fitting Kit K765 i30, 5dr Hatch 15-+ (AU) -195mm 590mm 870mm 836mm -7 -11/16ths" 23 1/4ths" 34 1/4ths" 32 15/16ths" i30, 5dr Hatch 15-+ (CN) -195mm 590mm 870mm 836mm -7 -11/16ths" 23 1/4ths" 34 1/4ths" 32 15/16ths" i30, 5dr Hatch 15-+ (EU)
-
Page 5: First Time Installation
Fitting Kit K765 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 6 Fitting Kit K765 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Attaches to factory-fitted mounting points...
- Page 7 Fitting Kit K765 Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 8 Fitting Kit K765 Fitment Hyundai Only Open or remove fixed-point covers. Fitment Lift and pull ditch moulding back towards you and remove from the vehicle. Mark a reference point for the front and rear mounting points with a pen as shown.
- Page 9 Fitting Kit K765 Use drill bit supplied, to drill holes in marked positions. Re-install rubber ditch mould back into roof channel and click into place. Select grubscrews and screw into the vehicle's fixed points. Do not over tighten. Repeat for all four positions.

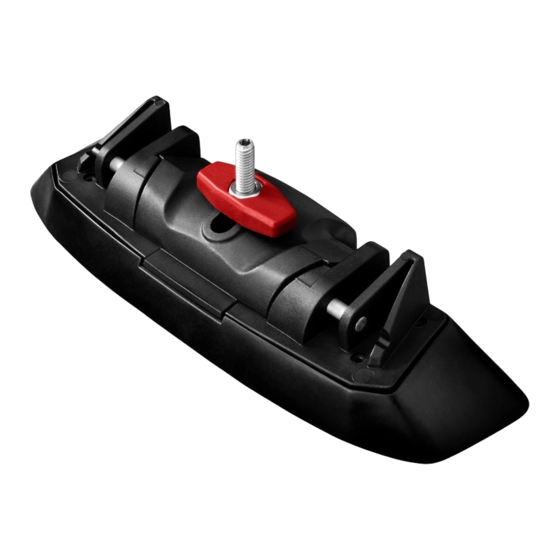

- Page 10 Fitting Kit K765 Refer to the underside of the pad for the part number. It is important to put the pads in the correct position on the vehicle. Letters refer to the pad part numbers and position. Pad Part Number:...
- Page 11 Fitting Kit K765 Tighten the plastic knob. The side with the nut showing should be facing up. Ensure the plastic knob is in the position shown when fully tightened. Repeat for all legs. Check crossbar is securely attached to the vehicle.
- Page 12 Fitting Kit K765 If crossbars are removed, please install the rubber plugs into the ditch moulding. CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 13: Maintenance
Fitting Kit K765 Maintenance Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use. Make sure all loose parts are stored safely. - Page 14 Fitting Kit K765 Set crossbars a minimum distance of 700mm (27 1/2") apart where no other distance is specified in the fitting instructions. This is especially important when carrying long loads. Check unit is securely attached whenever you refit it to the vehicle. If the unit feels loose, refer to the fitting instructions and readjust.
-
Page 15: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 16 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
