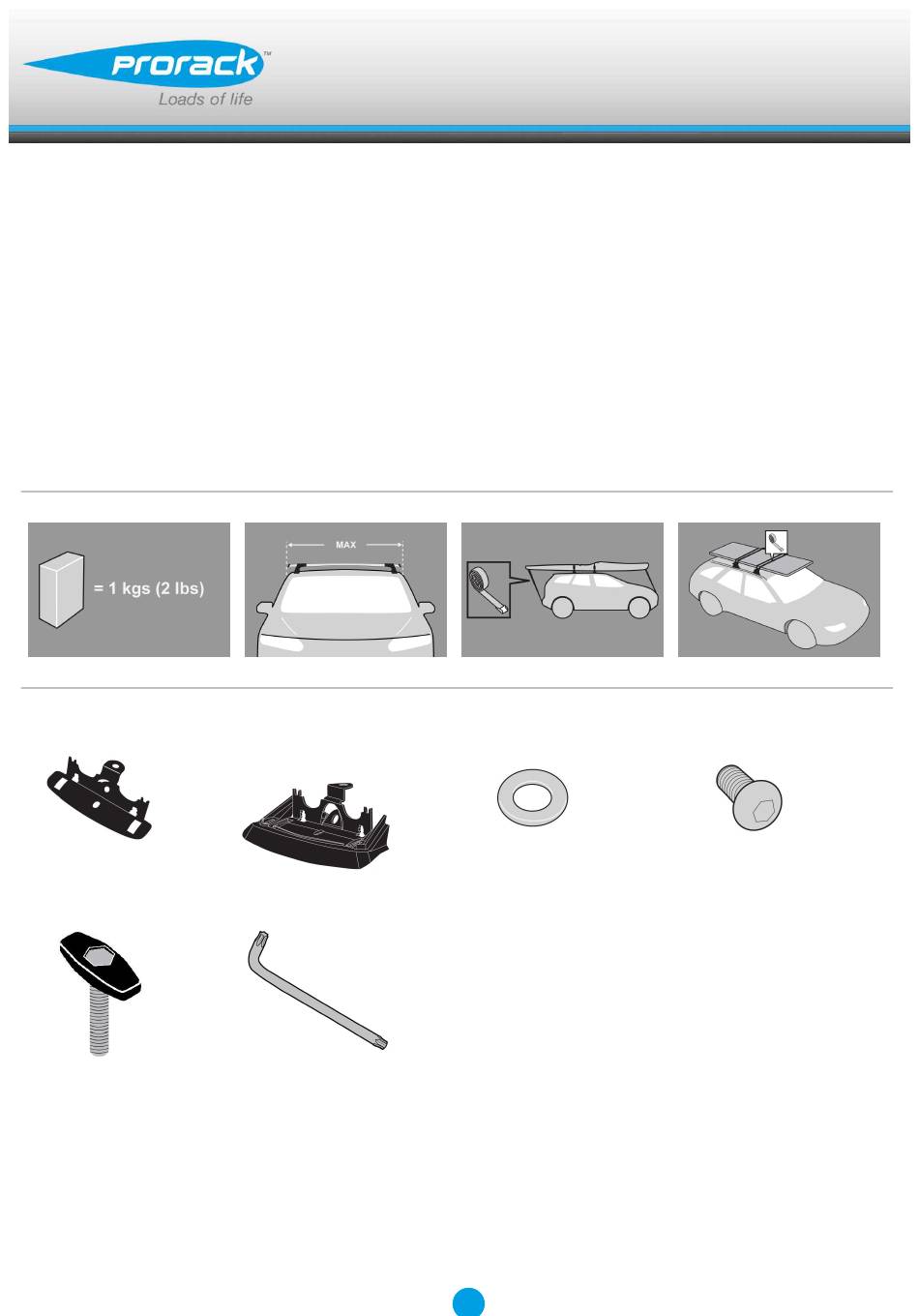

- Page 1 K710 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 2A...
- Page 2 Fitting Kit K710 MAX kgs (lbs) Isuzu MU-X , 5dr SUV 14-+ 75 kgs (165 lbs) 75 kgs (165 lbs) MU-X , 5dr SUV Dec 13-+ 75 kgs (165 lbs) 75 kgs (165 lbs)
-
Page 3: First Time Installation
Fitting Kit K710 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. Torx T25 socket bit (not provided) may be required to remove screws. This kit fits type A, B, C and D. - Page 4 Fitting Kit K710 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Please check the rear of this manual for information relating specifically to your vehicle.
- Page 5 Fitting Kit K710 Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Remove both pins from each leg. Use tapered end of spanner located inside left hand cover to assist.
- Page 6 Fitting Kit K710 Assemble metal loadplate and rubber pad from the fitting kit. Repeat for all four items. Assemble metal loadplate into leg. Ensure loadplate interlocks with the leg. Using short capscrew and washer, secure assembly onto leg (use Hex Screwdriver supplied with crossbar to assist) Repeat for all legs.
- Page 7 Fitting Kit K710 Tighten adjusting screw to 3 Nm (2.2 ft lb) hand tight. Locate vehicle's fixed points. Open or remove fixed-point covers.
- Page 8 Fitting Kit K710 Remove screws from the vehicle's fixed points Using the bolts with plastic knobs, attach crossbars to the nuts by fitting the bolt through the internal block on the foot and screwing it into the nut. Ensure the plastic knob is in the position...
- Page 9 Fitting Kit K710 Use keys to fit and lock covers Check crossbar is securely attached to the vehicle. CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 10: Maintenance
Fitting Kit K710 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 11 Fitting Kit K710 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 12 Fitting Kit K710 MU-X, 5dr SUV 14-+ (NZ) 165mm 865mm 860mm 835mm 6 1/2ths" 34 1/16ths" 33 7/8ths" 32 7/8ths" MU-X, 5dr SUV Dec 13-+ (AU) 165mm 865mm 860mm 835mm 6 1/2ths" 34 1/16ths" 33 7/8ths" 32 7/8ths"...
-
Page 13: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 14 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
