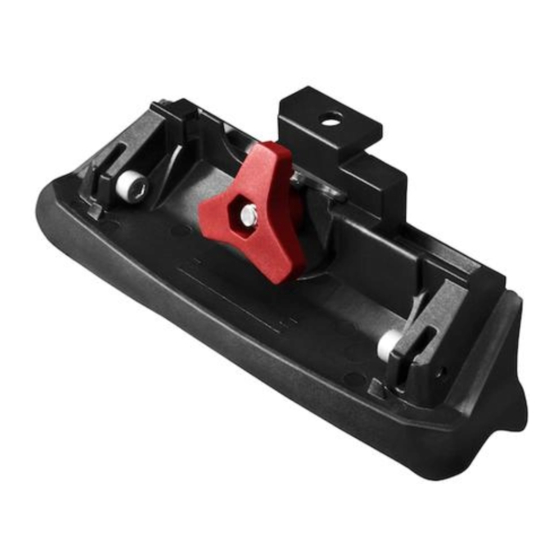

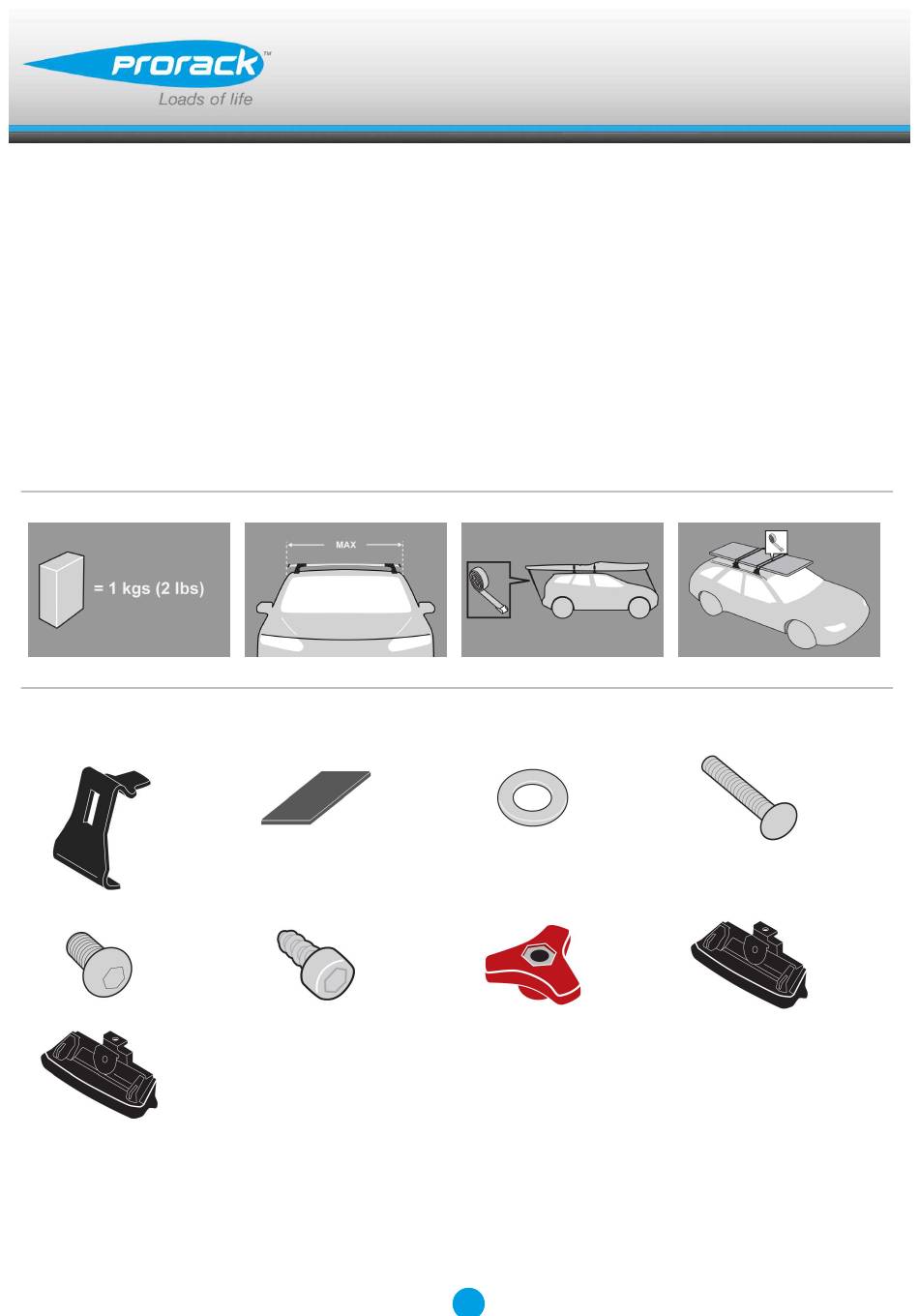

- Page 1 K774 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 1A...
- Page 2 Fitting Kit K774 MAX kgs (lbs) Citroen C4 Grand Picasso, 5dr MPV 13-+ 75 kgs (165 lbs) 75 kgs (165 lbs) C4 Grand Picasso, 5dr MPV 14-+ 75 kgs (165 lbs) 75 kgs (165 lbs) C4 Grand Picasso, 5dr MPV 14-+...
-
Page 3: First Time Installation
Fitting Kit K774 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type B crossbar fitted. They also apply to type A, C and D. - Page 4 Fitting Kit K774 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Set bars to length (revert to rear of these instructions).
- Page 5 Fitting Kit K774 Firmly tighten (3 Nm) adjusting screw. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Remove both pins from each leg. Use tapered end of spanner located inside left...
- Page 6 Fitting Kit K774 Detach foot from leg. Store loose parts in a safe place. Select four feet assemblies and match the left and right assemblies to the left and right roof rack legs. Assemble foot from kit into leg by pressing it down.
- Page 7 Fitting Kit K774 Apply protective strip as shown. Trim if required. Use two M5 x 12 mm self tapping screws to secure the assembly onto the leg. Do not over tighten. Repeat for all legs. Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated).
- Page 8 Fitting Kit K774 Slide clamp through opening in leg. Ensure the clamp engages correctly in slot inside of roof rail. Thread the coach bolt through the clamp and the leg.
- Page 9 Fitting Kit K774 Tighten the plastic knob. Ensure the plastic knob is in the position shown when fully tightened. Repeat for all legs. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers...
- Page 10 Fitting Kit K774 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 11: Maintenance
Fitting Kit K774 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K774 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 13 Fitting Kit K774 C4, 5dr MPV 13-+ (EU) -190mm 505mm 982mm 958mm -7 -1/2ths" 19 7/8ths" 38 11/16ths" 37 11/16ths" C4, 5dr MPV 14-+ (NZ) -190mm 505mm 982mm 958mm -7 -1/2ths" 19 7/8ths" 38 11/16ths" 37 11/16ths" C4, 5dr MPV 14-+ (AU)
-
