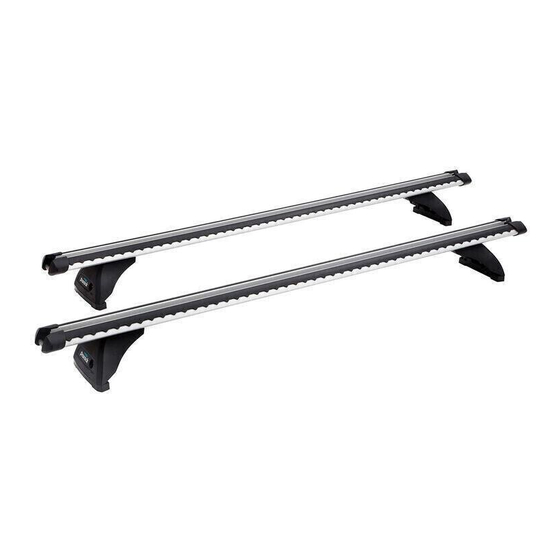

- Page 1 K777 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 5E...
- Page 2 Fitting Kit K777 MAX kgs (lbs) Mercedes C-Class, 2dr Coupe 12-14 75 kgs (165 lbs) 75 kgs (165 lbs) C-Class, 2dr Coupe 12-15 75 kgs (165 lbs) 75 kgs (165 lbs) C-Class, 2dr Coupe 12-15 75 kgs (165 lbs) 75 kgs (165 lbs)
- Page 3 Fitting Kit K777 C-Class, 2dr Coupe 12-14 (EU) -435mm 325mm 800mm 795mm -17 -1/8ths" 12 13/16ths" 31 1/2ths" 31 5/16ths" C-Class, 2dr Coupe 12-15 (NZ) -435mm 325mm 800mm 795mm -17 -1/8ths" 12 13/16ths" 31 1/2ths" 31 5/16ths" C-Class, 2dr Coupe 12-15 (AU)
-
Page 4: First Time Installation

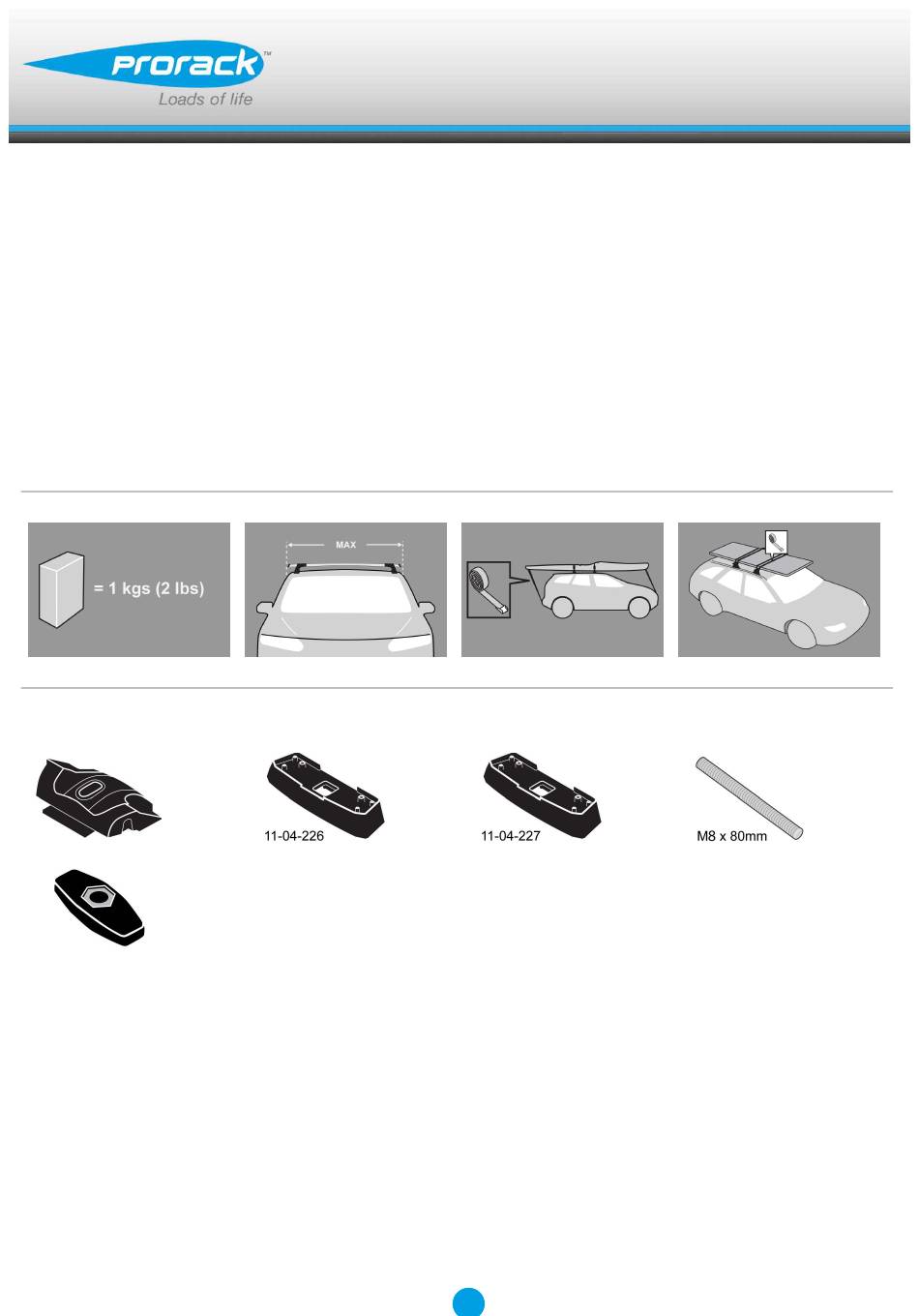

Fitting Kit K777 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K777 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Attaches to factory-fitted mounting points...
- Page 6 Fitting Kit K777 Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 7 Fitting Kit K777 Fitment Open or remove fixed-point covers. Select grubscrews and screw into the vehicle's fixed points. Do not over tighten. Repeat for all four positions. Refer to the underside of the pad for the part number.
- Page 8 Fitting Kit K777 Letters refer to the pad part numbers and position. It is important to put the pads in the correct position on the vehicle. Pad Part Number: A = 226 B = 227 Ensure the fixed-point covers sit vertically in the recess in the pads.
- Page 9 Fitting Kit K777 Tighten the plastic knob. The side with the nut showing should be facing up. Ensure the plastic knob is in the position shown when fully tightened. Repeat for all legs. Check crossbar is securely attached to the vehicle.
- Page 10 Fitting Kit K777 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 11: Maintenance
Fitting Kit K777 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K777 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 13: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 14 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
