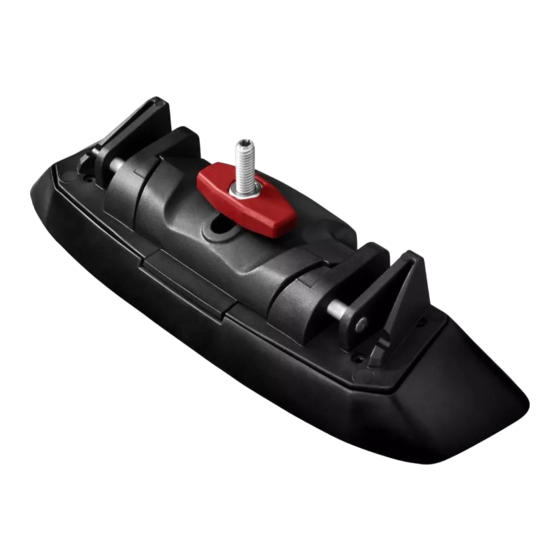

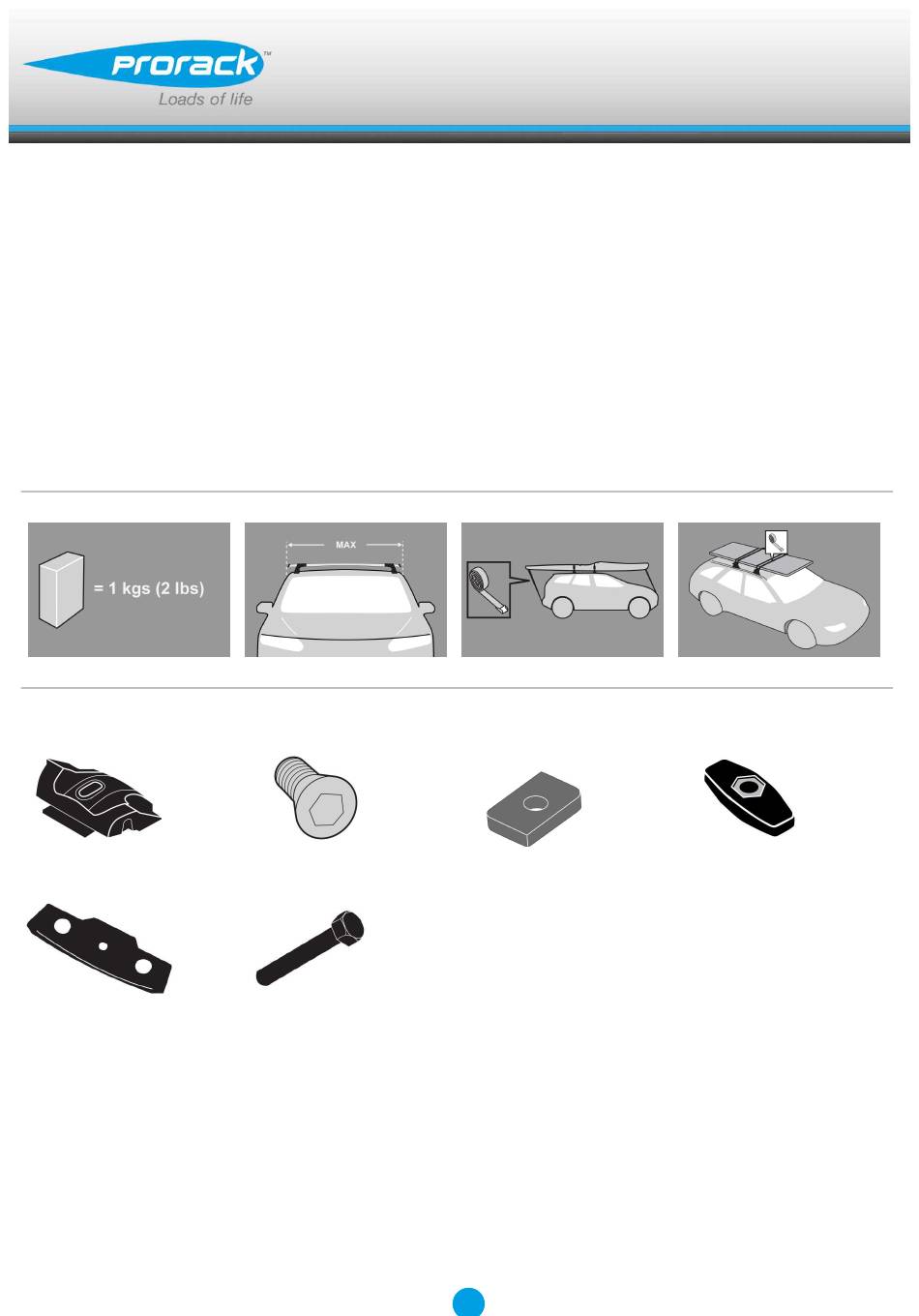

- Page 1 K723 Fitting Kit Fitting Instructions for Basic Carrier x 12 x 12 Revision No: 5E...
- Page 2 Fitting Kit K723 MAX kgs (lbs) Nissan 100 kgs (220 lbs) Primastar SWB, 5dr Van 06-May 15 75 kgs (165 lbs) 100 kgs (220 lbs) Primastar SWB, 5dr Van 07-May 15 75 kgs (165 lbs) 100 kgs (220 lbs) Primastar SWB, 5dr Van 07-May 15...
- Page 3 Fitting Kit K723 Primastar SWB, 5dr Van 06-May 15 (EU) 645mm 1430mm 1920mm 1240mm 1240mm 1240mm 25 3/8ths" 56 5/16ths" 75 9/16ths" 48 13/16ths" 48 13/16ths" 48 13/16ths" Primastar SWB, 5dr Van 07-May 15 (AU) 645mm 1430mm 1920mm 1240mm 1240mm 1240mm 25 3/8ths"...
-
Page 4: First Time Installation
Fitting Kit K723 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K723 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Set bars to length (revert to rear of these instructions).
- Page 6 Fitting Kit K723 Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 7 Fitting Kit K723 For a two bar setup, use position 2 and 3. For a three bar setup, use position 2,3 and Screw bolt in base plate, make sure the number is on the top side. Use the spanner from inside the cover to fully tighten the bolt.
- Page 8 Fitting Kit K723 Place mounting block into position as shown. Place screws into position. Tighten both screws evenly. Place crossbar foot over grubscrews.
- Page 9 Fitting Kit K723 Tighten the plastic knob. Ensure the plastic knob is in the position shown when fully tightened. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers...
- Page 10 Fitting Kit K723 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 11: Maintenance
Fitting Kit K723 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K723 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 13: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 14 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
