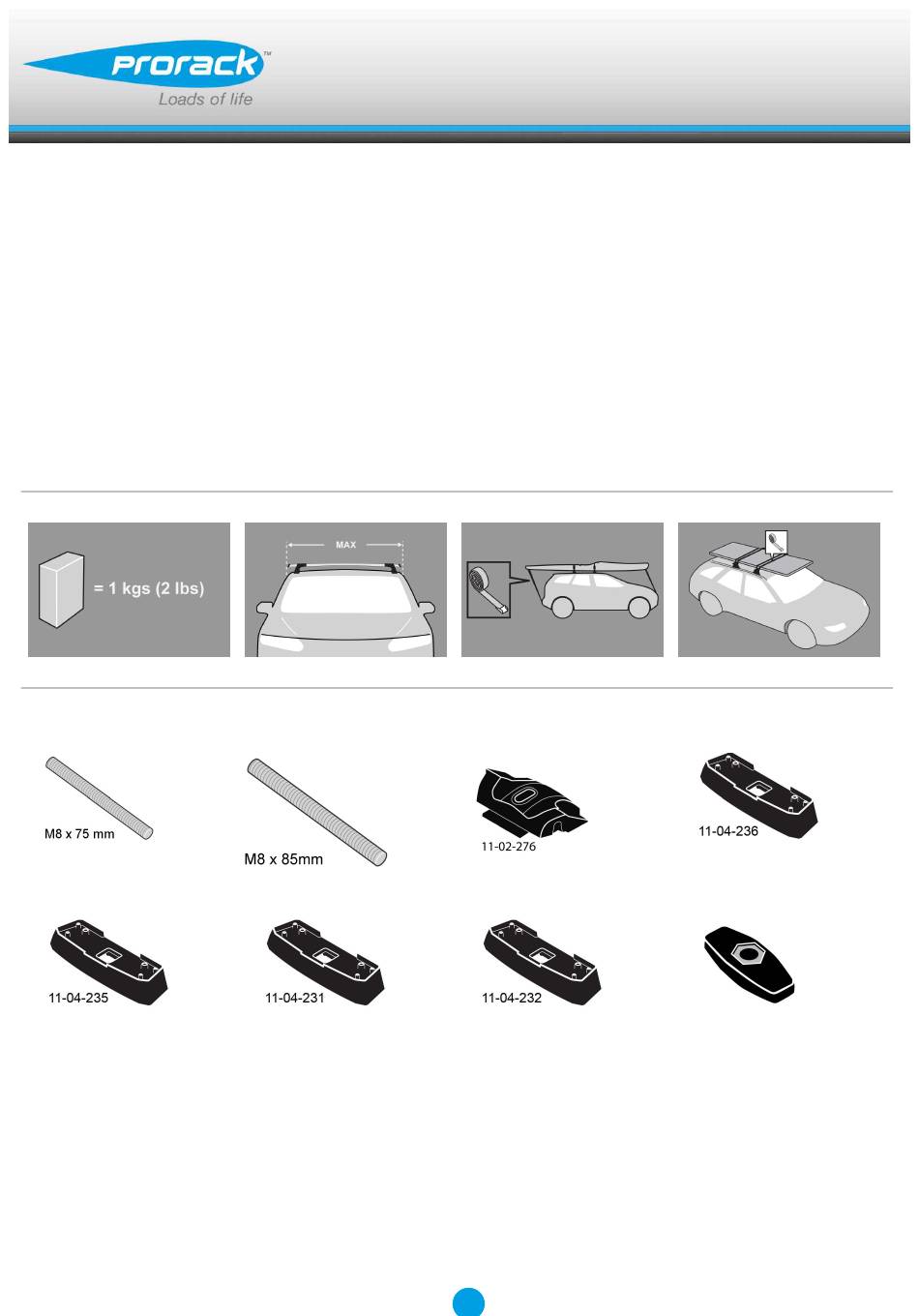

- Page 1 K769 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 4D...
- Page 2 Fitting Kit K769 MAX kgs (lbs) Mercedes E-Class W212 GR, 4dr Sedan 09-Aug 16 75 kgs (165 lbs) 75 kgs (165 lbs) E-Class W212 GR, 4dr Sedan 09-May 16 75 kgs (165 lbs) 75 kgs (165 lbs) E-Class W212 GR, 4dr Sedan 09-May 16...
- Page 3 Fitting Kit K769 E-Class W212 GR, 4dr Sedan 09-Aug 16 (ZA) -380mm 380mm 930mm 880mm -14 -15/16ths" 14 15/16ths" 36 5/8ths" 34 5/8ths" E-Class W212 GR, 4dr Sedan 09-May 16 (NZ) -380mm 380mm 930mm 880mm -14 -15/16ths" 14 15/16ths" 36 5/8ths"...
-
Page 4: First Time Installation
Fitting Kit K769 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K769 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Adjust crossbar in or out to suit vehicle.
- Page 6 Fitting Kit K769 Tighten adjusting screw to 3 Nm (2.2 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 7 Fitting Kit K769 Fitment Open or remove fixed-point covers. Select grubscrews and screw into the vehicle's fixed points. Do not over tighten. Note: Use longer [85mm (3 3/8")] grubscrew at the front and shorter [75mm (3")] at the rear fixed points.
- Page 8 Fitting Kit K769 Letters refer to the pad part numbers and position. Pad Part Number: A = 231A B = 232A C = 235A D = 236A Ensure the fixed-point covers sit vertically in the recess in the pads. Place crossbars on pads ensuring the pads...
- Page 9 Fitting Kit K769 Tighten the plastic knob. The side with the nut showing should be facing up. In the fully tightened position, the knobs should be parallel with the vehicle. Repeat for all four positions. Check crossbar is securely attached to the vehicle.
- Page 10 Fitting Kit K769 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 11: Maintenance
Fitting Kit K769 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K769 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
