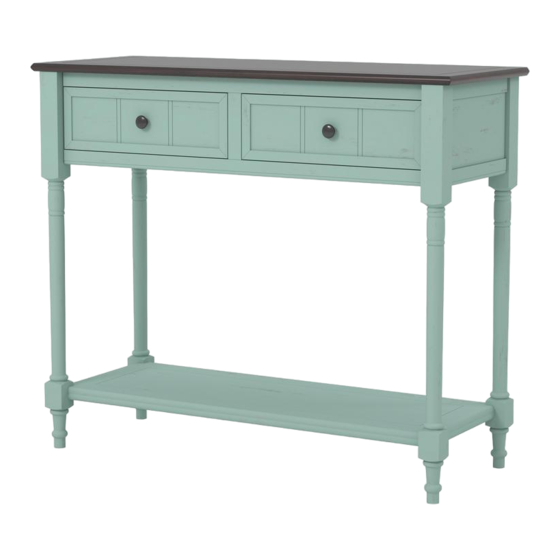

Furniture of America CM-DK5208 Assembly Instructions

Download this manual

For more information contact our team: service.ec@foagroup.com

ASSEMBLY RATING

The Assembly Rating is a 5-point system that

shows the degree of effort needed in

assembling a specific product (with 1 being

easy and 5 being difficult). For some

products, two persons are recommended.

EASY

Assembly Instructions

CM-DK5208

DIFFICULT

Tools Required For Assembly:

Allen Wrench

Phillips Screwdriver

2 PERSONS RECOMMENDED

Page 1 of 5

(Included)

(Not Included)

Rev: 19-06-12

Need help?

Do you have a question about the CM-DK5208 and is the answer not in the manual?

Page 1 Assembly Instructions For more information contact our team: service.ec@foagroup.com CM-DK5208 ASSEMBLY RATING Tools Required For Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Allen Wrench (Included) assembling a specific product (with 1 being easy and 5 being difficult).
Page 2 LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE SERIOUS INJURY. FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY RESULT IN INJURY AND/OR PROPERTY DAMAGE. FURNITURE OF AMERICA.ALL RIGHTS RESERVED. Page 2 of 5...
Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #1 x 1pc #A x 8pcs Side Table Bolt Ø1/4" x 2" #2 x 1pc #B x 8pcs Spring Washers Ø1/4'' Shelves #3 x 4pcs...
Page 4 Remove drawers from top (#1). Align legs (#3) to the top (#1), then secure by using bolts (#A) with washers (#B,C). # A x 8pcs # B x 8pcs # C x 8pcs Please do not fully tighten screws until all screws are in place Page 4 of 5...
Page 5 #E x 8pcs #F x 4pcs Align shelf (#2) to the legs (#3). Align brackets (#F) to the shelf (#2) and legs (#3), then secure by using screws (#E). Insert drawers into top (#1). Page 5 of 5...
