CONGRATULATIONS
Congratulations in choosing a unique product to enhance your slot car track
diorama. This can truly be described as a product born from a love for slot cars.
Buying this product have made you a member of a very special family, yes you are
not dealing with a faceless business, but rather a family of slot car fanatics.
We put hours of skill and more importantly love into our product and it is wonderful to
share our love for slot cars with you. May you enjoy the build and have years of joy
having it as part of your trackside diorama.

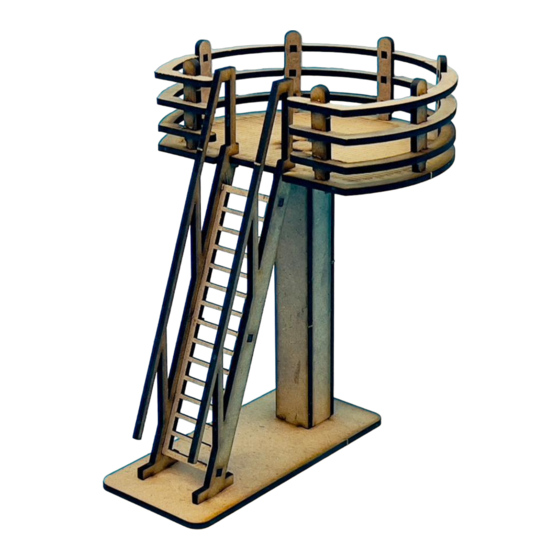

This product is not a replica of a specific trackside camera nest, but there are many
look alike nests to be seen at most raceways. You don't have to use this structure as
a camera nest, but can also use it as a flagman's post, a spotter tower or a marshal
platform.
WARRANTY
This product is covered by a comprehensive money-back warranty to ensure your
absolute satisfaction with your purchase.
WHO ARE WE?
This product is brought to you by racetrackscenics.com. If you have not done so
already, please visit our website today. You are also most welcome to visit the
Facebook pages
"Race Track Scenics Slot Car Scenery" and "Johan Malan" to
keep up to date with the latest developments and the launching of exciting new
products that may be in the pipeline.
You can contact Kevin Sharpe on
Email: racetrackscenics@gmail.com
Text in the USA 586 549 2879
WhatsApp 1-586-549-2879
for any assistance that you might require. Your feedback and a photo or two of your
trackside addition will really be appreciated. We love to share in your joy!
ASSEMBLY INSTRUCTIONS
RTS 2T12 LIQUI MOLY CAMERA NEST
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RTS 2T12 LIQUI MOLY CAMERA NEST
Summary of Contents for RTS 2T12 LIQUI MOLY CAMERA NEST
- Page 1 ASSEMBLY INSTRUCTIONS RTS 2T12 LIQUI MOLY CAMERA NEST CONGRATULATIONS Congratulations in choosing a unique product to enhance your slot car track diorama. This can truly be described as a product born from a love for slot cars. Buying this product have made you a member of a very special family, yes you are not dealing with a faceless business, but rather a family of slot car fanatics.
- Page 2 WHAT IS IN THE KIT? In this kit you will find all the laser cut pieced needed to assemble this product. The pieces are still intact in the sheets as they were cut to ensure that all the parts are there.
- Page 3 FAMILIARIZE YOURSELF Have a look at the photo of the finished product. Now have a look at the next diagram where all the laser cut parts are showed and numbered from A to H and try to identify which is which and where they fit in.
- Page 4 The structure has a base plate (C) and the four sides of the column (A1 & A2) and (B1 & B2) fit into this base plate, as well as the two legs of the ladder (G1 & G2). The floor (D) fits onto the four sides of the column. Note that the engraving of the floor faces upwards.
- Page 5 PAINTING YOUR PRODUCT We would strongly advise you to finish the product with paint or wood stain to make them as appealing as possible. The parts should be primed (2 coats) and painted before final assembly. Spray paint can also be used to get a very smooth finish. Oil or water-based paint can be used and specialised paints like chalk paint can be used to give unique finishes.
- Page 6 The assembly of the ladder of this kit is really easy as the threads are combined into a single piece (H) with nubs on both sides that must be glued into the slots in the sides (G1 & G2) of the ladder. Apply some gentle pressure to ensure a snug fit. The nubs at the bottom of the ladder must be glued into the slots of the base plate (C).
