ASSEMBLY INSTRUCTIONS
RTS 2T13 BRANDS HATCH LEADER BOARD
CONGRATULATIONS
Congratulations in choosing a unique product to enhance your slot car track
diorama. This can truly be described as a product born from a love for slot cars.
Buying this product have made you a member of a very special family, yes you are
not dealing with a faceless business, but rather a family of slot car fanatics.
We have put hours of skill and more importantly love into this product and it is
wonderful to share our love for slot cars with you. May you enjoy the build and have
years of joy having it as part of your trackside diorama.

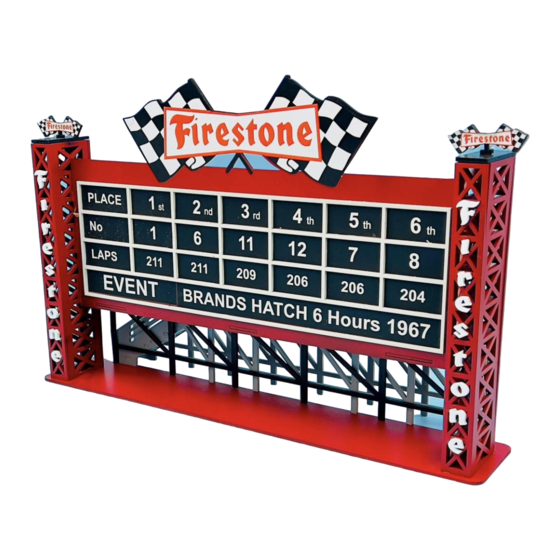

This product is a replica of the Brands Hatch Leader Board dating back to 1967. The
artwork that forms part of this kit is the results of the Brands Hatch 6 Hours of 1967.
The available photos and lack of information once more necessitates various design
assumptions, but we believe that we have captured the ambiance of this iconic
structure and is proud that we can give it a second life on many a slot car trackside.
WARRANTY
This product is covered by a comprehensive money-back warranty to ensure your
absolute satisfaction with your purchase.
1
Advertisement
Related Manuals for RTS 2T13 BRANDS HATCH LEADER BOARD
Summary of Contents for RTS 2T13 BRANDS HATCH LEADER BOARD
- Page 1 ASSEMBLY INSTRUCTIONS RTS 2T13 BRANDS HATCH LEADER BOARD CONGRATULATIONS Congratulations in choosing a unique product to enhance your slot car track diorama. This can truly be described as a product born from a love for slot cars. Buying this product have made you a member of a very special family, yes you are not dealing with a faceless business, but rather a family of slot car fanatics.
-
Page 2: What Is In The Kit
WHO ARE WE? This product is brought to you by racetrackscenics.com. If you have not done so already, please visit our website today. You are also most welcome to visit the Facebook pages “Race Track Scenics Slot Car Scenery” and “Johan Malan” to keep up to date with the latest developments and the launching of exciting new products that may be in the pipeline. -
Page 3: Familiarize Yourself
see what works best for you, there are no right or wrong, both types will produce a sturdy structure. You will only need a small amount of glue and remember to look for the surfaces that will be in contact in the end and do not only apply glue to the lugs and sleeves. The latter restrict movement in one plane, but the glue fix it in the perpendicular plane. - Page 5 Now have a look at the next diagram where all the laser cut parts are shown and numbered from A to S. We will indicate which is which and where they fit in.
- Page 6 The main element of this structure is the main billboard (A) where the results are shown. This billboard is supported by two columns that are made up of two narrow (C 1-4) and two wide (B 1-4) sides. These columns are fixed to the foundation (D). To the rear of the billboard is a vertical girder (E).
- Page 7 must not be painted or sprayed with the same colour can be a tedious process. Pre- painting will avoid this process. Please ensure that no paint clog a sleeve where a lug must fit in later. The tolerances are often so tight that too thick a layer of paint may cause problems. It is our experiences that a small foam roller instead of a brush, will produce a better finish and far less clogging of sleeves.
- Page 8 Study the second photo to see the direction of the staircase and also the openings in the side at the level of the landings. The staircase side with the openings must be closest to the rear of the billboard. Also make sure that the openings in the vertical girder (E) matches the openings in the side of the staircase.
- Page 9 CONCLUSION We sincerely hoped you have enjoyed this assembly and finishing. Please remember to give us some feedback and either send or post some pictures of this product on your track.
