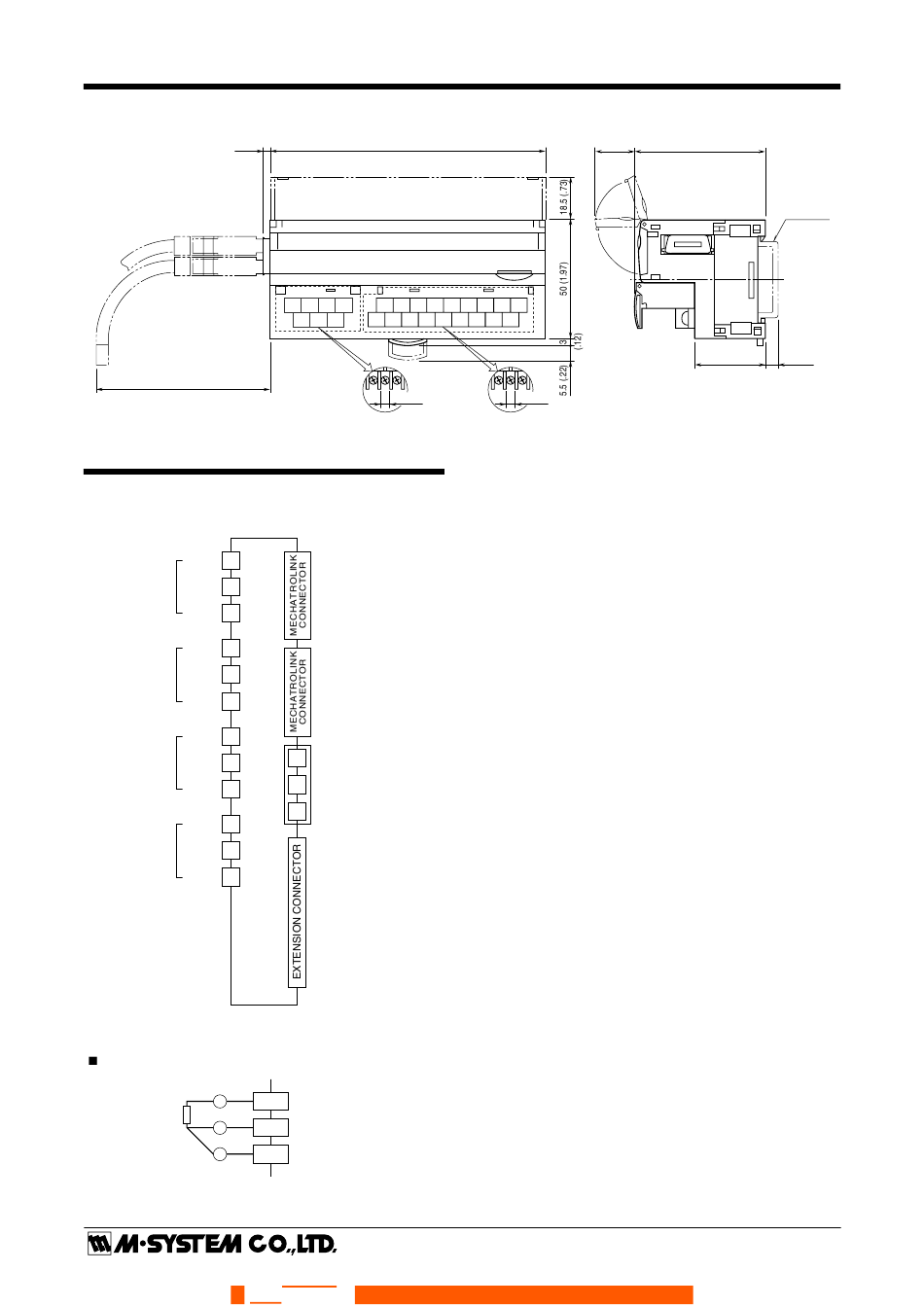

EXTERNAL DIMENSIONS

3 (.12)
75 (2.95)

CONNECTION DIAGRAM

Connect the unit as in the diagram below.
INPUT 0
10
INA0
2
INB0
11
INb0
INPUT 1
12
INA1
4
INB1
13
INb1
INPUT 2
15
INA2
7
INB2
16
INb2
INPUT 3
17
INA3
9
INB3
18
INb3
* MECHATROLINK connectors are internally connected.
The network cable can be connected to either one.
Input Connection Example
RTD
INAn
A
INBn
B
INbn
B
SEN TRONIC
unit: mm (inch)
115 (4.53)
4 5 6 7
10 11 12 13 14 15 16 17 18
1 2 3
1 2 3 4 5 6
6 (.24)
7–M3 SCREW
TERMINALS for POWER
*
*
3
FG
6
24VDC
7
0V
056 222 38 18 mailbox@sentronic.com
AG
17 (.66)
9
7 8
6 (.24)
18–M3 SCREW
TERMINALS for INPUT
www.sentronic.com
R7ML-RS4
54 (2.13)
DIN RAIL
35mm wide
30 (1.18)
[5 (.20)]
