User manual
Dishwasher
GV693E62UVAD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV693E60UVAD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gorenje GV693E60UVAD

Summary of Contents for Gorenje GV693E60UVAD

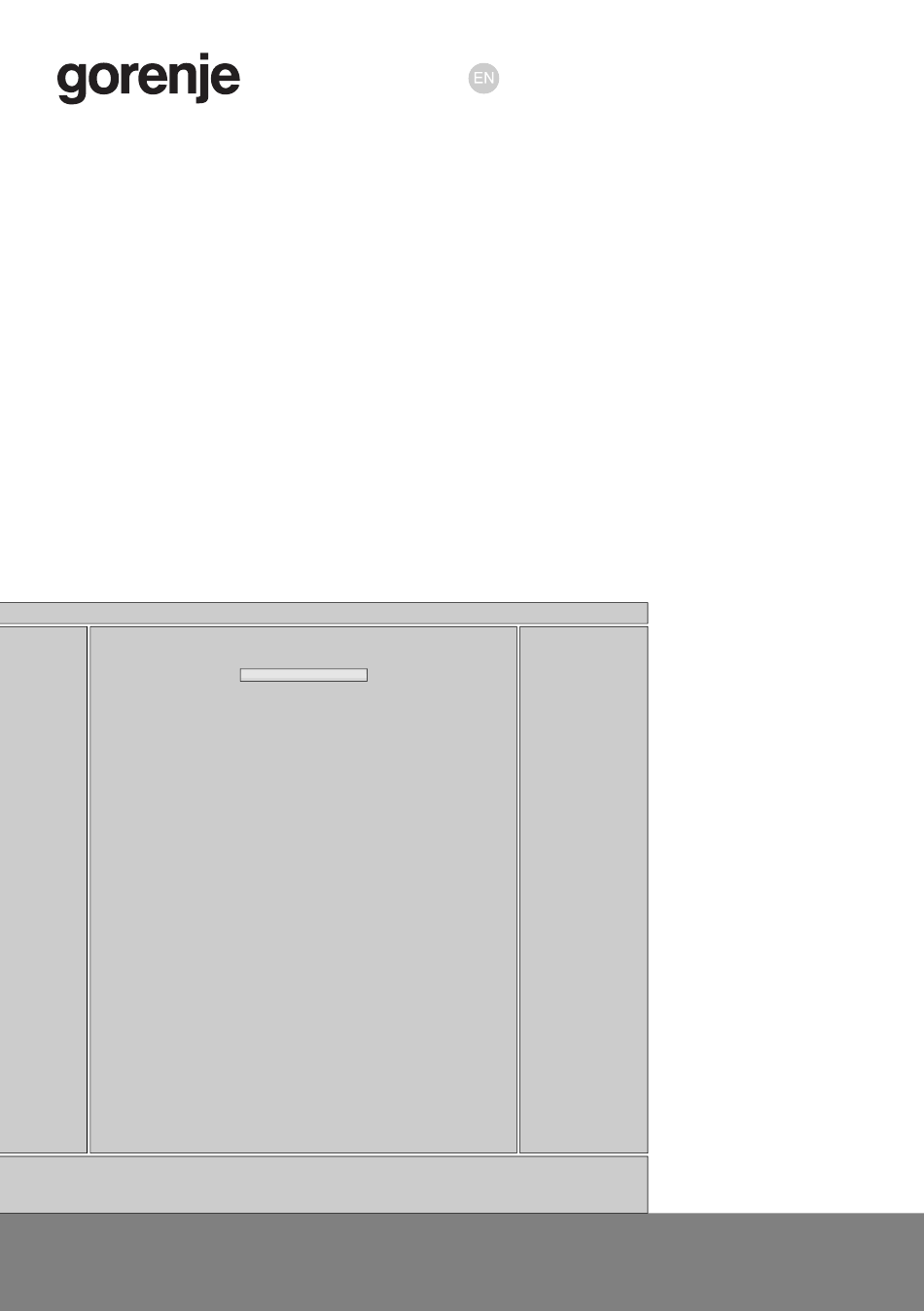

  • Page 1 User manual Dishwasher GV693E62UVAD...

  • Page 2: Table Of Contents

    Contents Your dishwasher ........................Enclosed parts .......................... Safety instructions ........................Installation ..........................Overflow guard function ......................Winter storage/transport ......................Packaging ..........................Disposal ............................ Symbols ............................ Before washing for the first time ................... Water hardness ......................... Basic settings ........................... Top up with rinse aid ........................ Top up with salt ........................
  • Page 3 Deactivate/activate WiFi connection ..................Remove devices ........................Settings ............................ Care and cleaning ........................Top up with rinse aid ........................ Top up with salt ........................Top up dishwasher detergent for automatic dosing ..............Clean the filter ........................... Cleaning the spray arms ......................Clean the outside of the dishwasher ..................

  • Page 4: Your Dishwasher

    Your dishwasher Install the dishwasher, see the chapter Installation. Then open the door and press The first time the dishwasher is switched on, it is important that you choose the right settings to ensure good dishwashing results. See the chapter Before washing for the first time. On/Off WiFi Start/Stop...
  • Page 5 Screw 42x25 Lens, status light Screw T20 4x38 User manual Wood screw 4x15 Installation instructions Distance sleeve 8x12 Warranty card Guide plug...

  • Page 6: Safety Instructions

    Safety instructions Read the operating instructions and keep them in a safe place! Number of standard place settings: 16 Never use the dishwasher for any purpose other than that specified in these operating instructions. Do not load the dishwasher door or dishwasher baskets with anything other than dishes.

  • Page 7: Installation

    A damaged or defective UVC light source may only be replaced by the manufacturer's service centre or someone similarly professionally qualified. WARNING! Knives and other pointed items must be placed with the points down in the cutlery basket or horizontally in other baskets.

  • Page 8: Packaging

    Packaging The outer packaging protects the product during transport. The packaging material is recyclable. Separate the different packaging materials to help reduce raw material use and waste. Your dealer can take the packaging for recycling or direct you to the nearest recycling centre. The packaging is comprised of: Corrugated cardboard made from up to 100% recycled material.

  • Page 9: Before Washing For The First Time

    Before washing for the first time Water hardness In order to achieve good dishwashing results, the dishwasher needs soft water (water with low mineral content). Hard water leaves a white coating on dishes and the dishwasher. Checking water hardness Water hardness is specified using German degrees of water hardness (°dH), French degrees of water hardness (°fH), English degrees of water hardness (°eH) or millimoles per litre (mmol/l).

  • Page 10: Basic Settings

    Basic settings The first time the dishwasher is switched on, it is important that you choose the right settings to ensure good dishwashing results. See page 26. Set up: Rinse aid Water hardness TAB (All-in-one detergent) Automatic detergent dispensing Top up with rinse aid Drying is faster and a better result is achieved if you use rinse aid.

  • Page 11: Top Up Dishwasher Detergent For Automatic Dosing

    Top up dishwasher detergent for automatic dosing Fill the automatic dosing compartment with dishwasher detergent gel if you have activated the Automatic detergent dispensing setting. Lift up to open 1. Open the lid of the automatic dosing compartment for dishwasher detergent gel. 2.

  • Page 12: Greener Dishwashing

    Greener dishwashing Save energy and water When using a dishwasher in a residential setting, less energy and water are generally used compared to washing the dishes by hand. Do not rinse under running water Do not rinse the dishes under running water as this will lead to increased energy and water consumption. Simply scrape off large food particles before loading the dishwasher.

  • Page 13: Loading The Dishwasher

    Loading the dishwasher Fragile dishes Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot withstand high heat, others can be damaged by dishwasher detergent. Exercise caution with, for example, handmade items, fragile decoration, crystal/glassware, silver, copper, tin, aluminium, wood and plastic.

  • Page 14: Upper Basket

    Upper basket Place glasses, cups, bowls, side plates and saucers in the upper basket. All dirty surfaces should face inwards and downwards! Wine glasses are placed on the wine glass shelf and knives are placed in the knife stand on the right. 3 positions Knife stand Raising and lowering the upper basket...

  • Page 15: Lower Basket

    Adjustable plate supports The adjustable plate supports can be folded down to make it easier to load pots, bowls and glasses. Lower basket Place plates, side plates, serving dishes, pots and cutlery (in the cutlery basket) in the lower basket. Adjustable plate supports The adjustable plate supports can be folded down to make it easier to load pots and bowls.
  • Page 16 Cutlery basket with lid The cutlery basket lid can be removed. Flexible cutlery basket The cutlery basket is flexible and can be separated into two parts, which can then be attached to the side of the lower basket.

  • Page 17: Using The Dishwasher

    Using the dishwasher Add detergent You have two options for adding detergent – manual or automatic. To activate Automatic detergent dispensing, see the chapter Settings. The manual detergent compartment can be used as a supplement even when Automatic detergent dispensing is activated (for bleach, for example, or if the automatic dosing compartment is empty).

  • Page 18: On/Off

    On/Off WiFi Start/Stop Display NOTE! The control panel only reacts to use when the door is open. On/Off Open the door and press . Also turn on the water tap if it is turned off. Select program Select a program to suit the type of dishes and how dirty they are. Press the desired program until it is activated, which is indicated by an indicator light.

  • Page 19: Select Option

    Hygiene 70° This program is ideal to use where demands on hygiene are extra high, e.g. for baby bottles and cutting boards. The temperature is high both in the main wash and in the final rinse. Night 55° A quieter dishwashing program, suitable for running at night. The program time is extended. WiFi You can remote control this dishwasher with your smartphone/tablet.

  • Page 20: Start/Stop

    SmartDry The dishwasher's fan, together with the automatic door opening function, shortens the program time and improves the drying results. Wait until the dishwasher indicates that the program has ended and the dishes have cooled before unloading the dishwasher. The drying time of the SmartDry option varies (from 5 to 90 minutes) depending on the model, program and temperature of the final rinse.

  • Page 21: Status Ledlight

    Stopping or changing a program Open the door. If you want to interrupt or change the program after starting the dishwasher, press and hold for three seconds. Top up with new detergent if the lid of the detergent dispenser has opened. Then select a new program, press and close the door.

  • Page 22: The Best Drying Results

    The dishwasher switches off automatically after the program ends. Shut off the water tap after each use. The best drying results Fully load the dishwasher. Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important for plastic items.

  • Page 24: Wifi Connection

    WiFi connection ConnectLife You can remote control this dishwasher with your smartphone/tablet. Connect the dishwasher to your wireless network to be able to remote control and start the dishwasher using the ConnectLife app. The app can be used to find information, change settings, start a program and monitor the dishwasher. (The dishwasher can always be used without the app.) On/Off WiFi...

  • Page 25: Remote Control The Dishwasher

    Network symbol on the display Flashing 0.5 sec on/off The dishwasher is ready to be connected to your wireless network or paired with your smartphone/tablet. Flashing 1.0 sec on/off The dishwasher is connected to your wireless network. Glows The dishwasher is connected to your wireless network and the cloud. Remote control the dishwasher The dishwasher's network symbol is shown on the display when the dishwasher is paired with a...

  • Page 26: Settings

    Settings 1. Open the door and press 2. To open the dishwasher's settings menu, press and hold until SEt is shown on the display. 3. Press to step through the settings menu. 4. Press to step through the alternatives. 5. Confirm the selected setting by pressing 6.
  • Page 27 Settings Alternatives This setting reduces the rinse aid dosage and affects how often the dishwasher's built-in softener is regenerated. Pre-selected at factory: 5:00 Automatic detergent 6:00 - 6:40 Activate this setting if you want to use automatic dosing of dispensing (6:00 Off) detergent.

  • Page 28: Care And Cleaning

    Care and cleaning Top up with rinse aid When the rinse aid needs topping up, the above symbol lights on the display. Lift up to open Press to close 1. Open the rinse aid compartment lid. 2. Carefully top up with rinse aid to the level marked MAX. 3.

  • Page 29: Top Up Dishwasher Detergent For Automatic Dosing

    Top up dishwasher detergent for automatic dosing When the dishwasher detergent gel has run out and needs to be refilled, the above symbol appears on the display. (You can run 1-2 programs before the compartment is completely empty.) Lift up to open 1.

  • Page 30: Clean The Filter

    Clean the filter The filter traps larger food particles, which cannot get past the drainage pump. Empty the filter when necessary. It should be cleaned at regular intervals depending on how often the dishwasher is used. 1. Turn the locking ring anticlockwise and lift the filter straight up. 2.

  • Page 31: Clean The Outside Of The Dishwasher

    Lower spray arm Pull the lower spray arm straight up to release it. Clean the outside of the dishwasher Door and door seal Open the door. Clean the sides of the door and the door seal regularly with a slightly damp cloth. Clean the door seal at the lower front edge of the dishwasher with a washing-up brush.
  • Page 32 6. Refit the drainage pump stop along with the fine and coarse filters. 7. Plug the machine in again. Drainage pump stop NOTE! Do not forget to refit the drainage pump stop. Unblocking the inlet hose filter If the water supply contains small particles, the outer filter on the inlet hose may become blocked, which results in the Water inlet fault error message.

  • Page 33: Troubleshooting

    Troubleshooting Error messages Action Overfilling water Unblocking the drainage pump. See the chapter Care and cleaning. If the problem persists, contact your nearest service centre. Water outlet fault See "Water remains in the dishwasher" under "Problem" in the table below. If the problem persists, contact your nearest service centre.
  • Page 34 Problem Possible causes Action Check that the dishes are not blocking the baskets from slid- ing properly into place. The door lock does not click in- Check the door lock. If it does to place and lock. not click into place and lock, open the door.
  • Page 35 Problem Possible causes Action Old detergent. Detergent is a Avoid large packages. perishable product. Automatic detergent dispensing To check that detergent is dis- is activated, but dishwasher pensed, press and hold detergent gel is not dispensed. for five seconds. The symbol will flash on the display and the status light will turn on.
  • Page 36 Problem Possible causes Action Incorrect water softener setting. See Water hardness in the chapter Settings. The water softener is leaking Check that the salt compart- salt. ment lid is properly tightened. Otherwise contact your nearest service centre. Too high temperature and/or Wash crystal at a low temperat- too much detergent can cause ure and with a conservative...
  • Page 37 Problem Possible causes Action Bad odour in dishwasher. Dirt around the seals and in Clean with washing-up brush corners. and low foaming cleaner. Low temperature programs Run a program with a high tem- have been selected for a pro- perature once or twice a month. longed period.

  • Page 38: Wifi

    WiFi Problem Possible causes Action The dishwasher's network sym- The dishwasher is not connec- Connect the dishwasher to your ted to your wireless network. wireless network. See the does not appear on the chapter WiFi connection. display. The WiFi connection is deactiv- Activate the WiFi connection.

  • Page 39: Installation

    Installation It is important that you read through and follow the instructions and directions below. Conduct installation and connection in accordance with the separate installation instructions. [mm] Remove the plastic strips if the recess dimension is 596-598 mm. Exercise caution! The edges may be sharp. Wear protective gloves! Cover door length.

  • Page 40: Setup

    NOTE! Each dishwasher is tested before delivery. Some water may remain inside the machine, which can leave a bad odour. Install the dishwasher and run a dishwashing program to remove any such odour. Setup The recess and connection dimensions are included in the separate installation instructions. Check that all dimensions are correct before starting the installation.

  • Page 41: Electrical Connection

    Connection to hot water supply Connect the dishwasher to the hot water supply (max. 70 °C) if the building is heated using an energy-efficient means such as district heating, solar power or geothermal power. Choosing a hot water connection reduces the dishwasher's energy consumption. NOTE! Do not exceed the permitted water supply temperature.

  • Page 42: Service

    Service Read the chapter Troubleshooting before contacting the service centre. If you have encountered a problem that you cannot resolve, please contact your nearest service centre for professional help. Phone: 400 808 8899 When making contact, provide the details on the serial number plate. Include the article number (1) and the serial number (2).

  • Page 43: Technical Information

    Technical information Technical data Height: 816-890 mm Width: 598 mm Depth: 555 mm Weight: 30 kg Number of place settings: Water pressure: 0.03-1.0 MPa Electrical connection: See the serial number plate Rated power: See the serial number plate 1) Weight can vary due to different specifications.
  • Page 44 GORENJE gospodinjski aparati, d.o.o. Naslov: Partizanska 12, 3320 Velenje, Slovenija Telefon: +386 (0)3 899 10 00 Faks: +386 (0)3 899 28 00 www.gorenje.com 881005-a1 We reserve the right to make changes.
