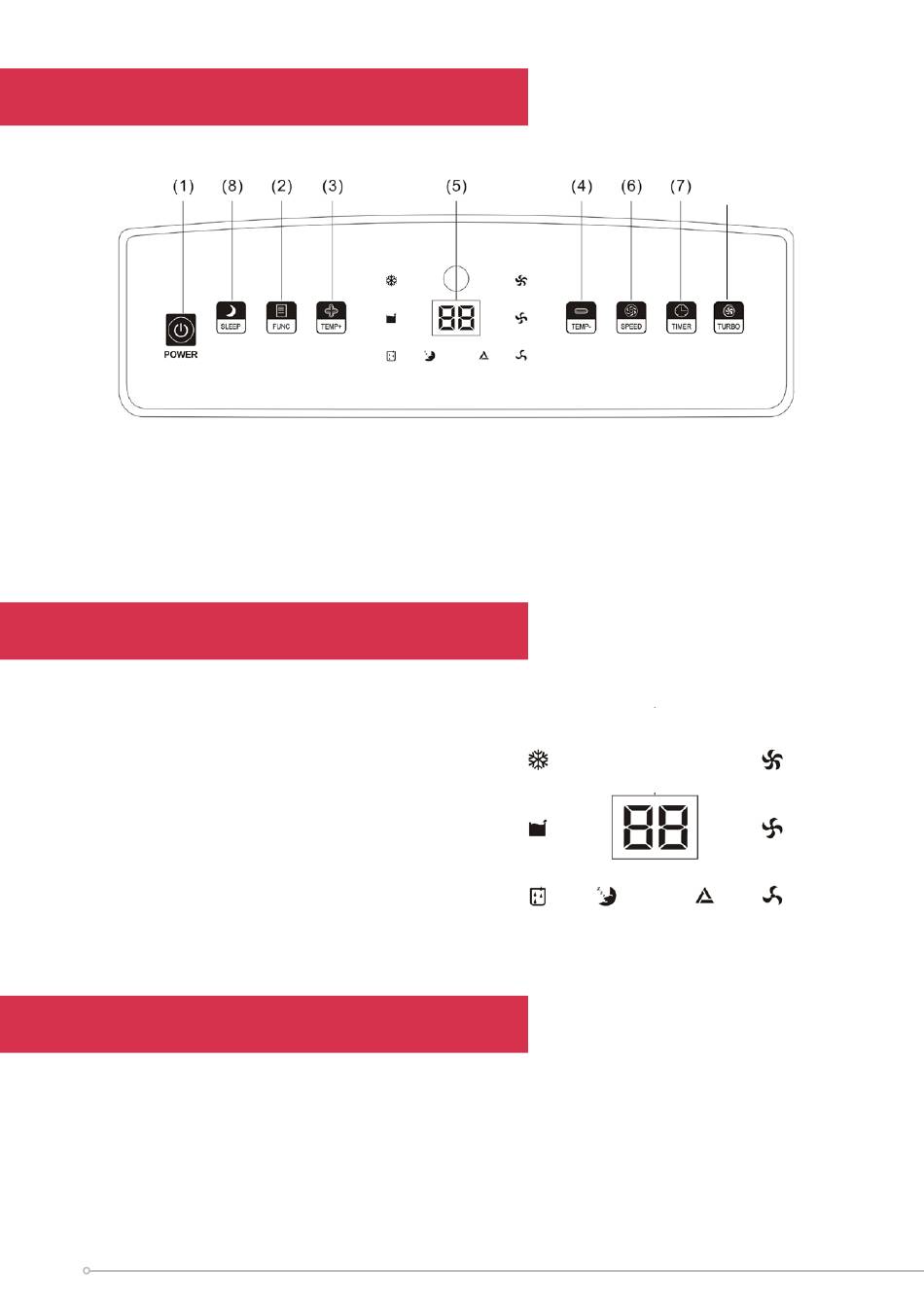

Control Panel

(1) Power button
(2) Function button
(3) Temp increase (+) button
(4) Temp decrease (-) button
(5) LED display screen

Indicator Lights

In order - counter clockwise:
• Cool mode
• Tank full
• Dry (dehum) mode
• Sleep mode
• Auto mode
• Low fan speed
• Med fan speed
• High fan speed

LED Display

• The LED display indicates the current set temperature or the timer setting.
• When the set temperature or the timer is adjusted, the new setting is shown on the
display.
• The LED display is also used to show error codes should a fault occur.
12
(6) Speed button
(7) Timer button
(8) Sleep button
(9) Turbo button
(9)
