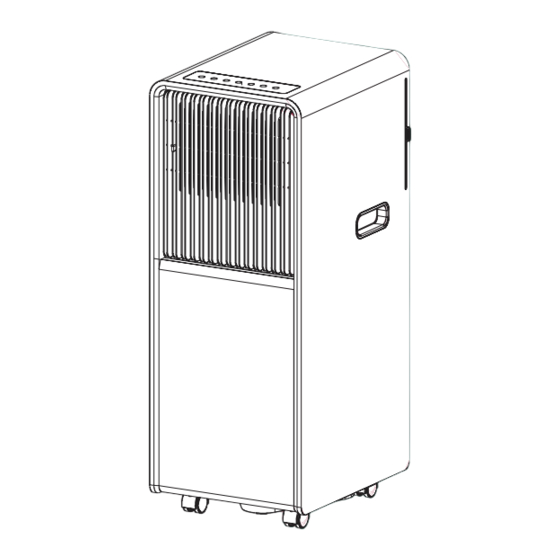

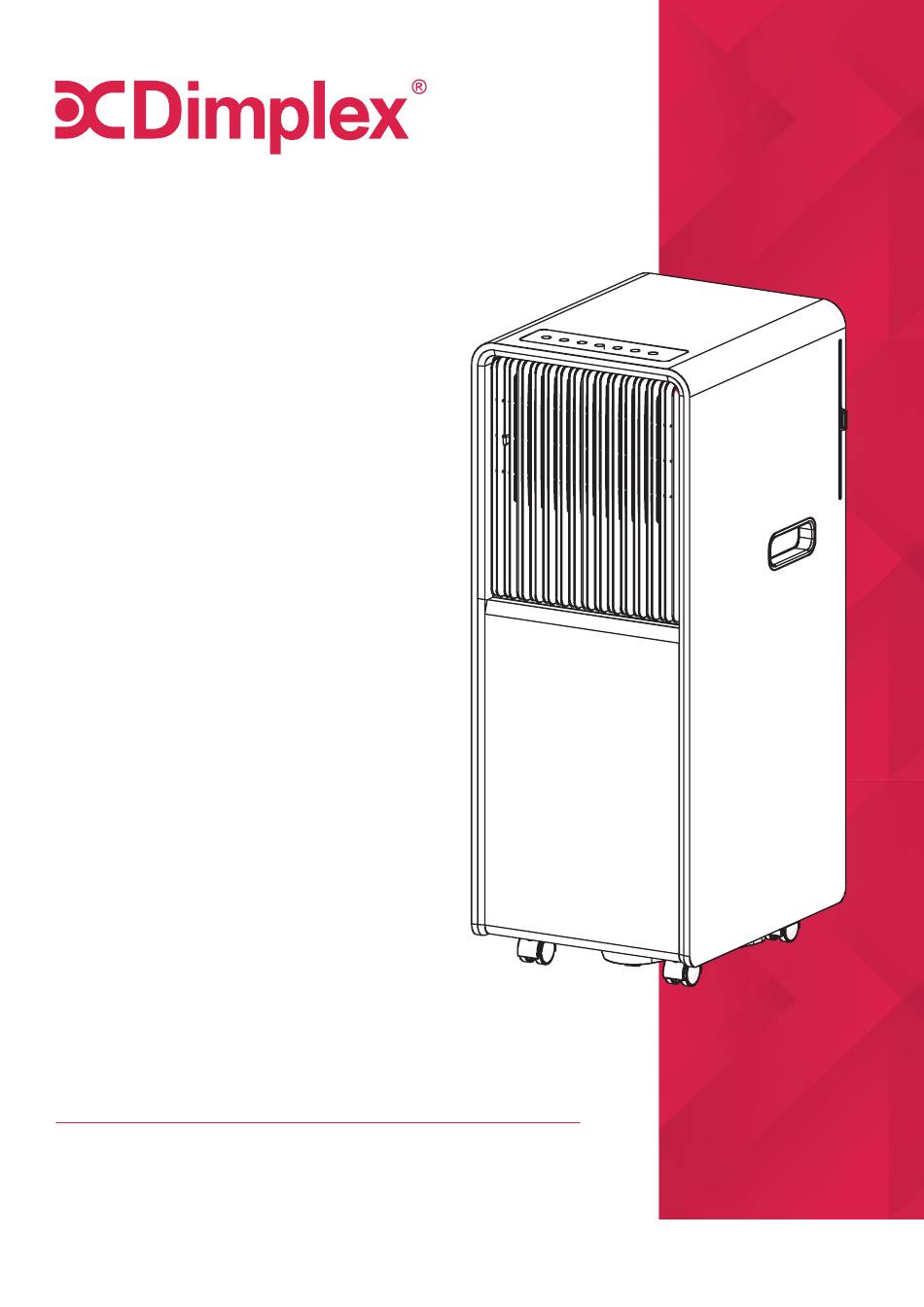

- Page 1 INSTRUCTION MANUAL Recycled Portable Air Conditioner Model: DCP26EB, DCP33EB For domestic household use only.
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your Portable Air Conditioner for the first time and keep them in a safe place.
- Page 3 This product should not be used for commercial or industrial or leisure applications or in small enclosed spaces. • To avoid a fire or electrocution hazard, NEVER put the cord near heat registers, radiator, stoves or heaters. • DO NOT cover cord with carpeting, throw rugs, runners, or similar coverings.
- Page 4 WARNING: For using R290 refrigerant. ThIs symbol shows that this appliance uses a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire. CAUTION: RISK OF FIRE/FLAMMABLE MATERIALS. THE APPLIANCE MUST BE INSTALLED, USED &...
- Page 5 • Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants. • Please follow the instruction carefully to handle, install, clear, service the air conditioner to avoid any damage or hazard.
- Page 6 Checks to the refrigeration equipment • Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance.
- Page 7 Cabling • Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.
- Page 8 Decommissioning • Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant.
- Page 9 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children No extension leads or Where the power may be left unattended power boards cable may be damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 10: Specification
• For greater precision, please always refer to the rating label placed on the product. **Note: Wi-Fi requires the Glen Dimplex Connect app to be installed on your smart device. Search for 'Glen Dimplex Connect' in the Apple App Store or Google Play Store. - Page 11 Parts Control panel Power Cord Adjustable Louvre Air Outlet Front Panel Drainage Outlet Castors Air Inlet 1 x Housing Adaptor 1 x Exhaust hose 1 x Window Slider Kit 1 x Housing adaptor 1 x Remote control 1 x Window connector...
-
Page 12: Control Panel
Control Panel Power on/off Water full indicator Function button Cooling Temp decrease (-) button Dehumidifying Timer on/off Temp increase (+) button Wi-Fi Fan speed Low fan speed Sleep mode High fan speed Sleep LED Display • The LED display indicates the current set temperature or the timer setting. •... -
Page 13: Exhaust Hose Installation
Installation PREPARATION NOTE: All the illustrations in the manual are for explanation purpose only. Your machine may be slightly different. The unit can be controlled by the control panel or with the remote control. EXHAUST HOSE INSTALLATION The exhaust hose and adapter must be installed or removed in accordance with the set function. - Page 14 Installation EXHAUST HOSE INSTALLATION 1. Twist the housing adapter and the window connector to the ends of the exhaust hose. 2. Insert the fixing clip of the housing adapter into the openings at the back of the air conditioner. 3. Put the other end of the exhaust hose to the near windowsill NOTE: This unit has a self evaporative system which removes excess condensation by means of evaporating water collected in the tank.
-
Page 15: Window Kit Installation
Installation WINDOW KIT INSTALLATION The window slider kit has been designed to fit most standard vertical and horizontal window applications, however it may be necessary for you to modify some aspects of the installation procedures for certain types of windows. The window slider kit can be fastened with screws (not supplied) if required. -
Page 16: Cooling Mode
Functions POWER Press the POWER ON/OFF button to turn the unit ON or OFF. FUNCTION Press the MODE button to select between COOL, DEHUMIDIFY, or FAN modes. COOLING MODE 1. The exhaust hose needs to be installed for this mode. 2. -
Page 17: Setting The Timer
3. When the WI-FI indicator light begins to flash quickly, the unit is in setup mode. If the indicator light is flashing slowly, the unit is in the AP mode. 4. Turn on Bluetooth and location on your smart device, and allow the Glen Dimplex Connect application to access your location if prompted. Bluetooth permission may also be required. -
Page 18: Error Codes
Error Codes ERROR CODES E0 - Indicates the room temperature sensor has failed. E1 - Indicates the condenser temperature sensor has failed E2 - Indicates the internal water container is full. Refer to the Water Drainage section below. E3 - Evaporator temperature sensor has failed TROUBLESHOOTING Issue Possible Causes... -
Page 19: Water Drainage Method
Water Drainage WATER DRAINAGE METHOD When there is excess water condensation inside the unit, the unit will stop running and the "Water Full indicator" light will illuminate. This indicates that the water needs to be drained using the following procedure: Manual Drainage: 1. -
Page 20: Remote Control
Remote Control The remote control can be used to perform all functions. Refer to the below diagram and table. 1. Power On/Off 2. Timer On/Off 3. Function button 4. Temperature decrease 5. Temperature increase 6. Fan speed 7. Sleep mode... - Page 21 Remote Control Using the Remote Control 1. Open the battery cover of the remote control, and insert 2 x AAA batteries. 2. Please point to the receiver and be within 5m when using the remote control. 3. If the battery voltage is low, please open the battery cover as per the diagram and replace with a new batteries (2 x AAA).
-
Page 22: Safety Precautions
Cleaning SAFETY PRECAUTIONS • Always unplug the unit before cleaning or servicing. • DO NOT use flammable liquids or chemicals to clean the unit. • DO NOT wash the unit under running water. Doing so causes electrical danger. • DO NOT operate the machine if the power supply was damaged during cleaning. -
Page 23: Maintenance
Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 8 Lakeview Drive, 38 Harris Road, East Tamaki,... - Page 24 Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
