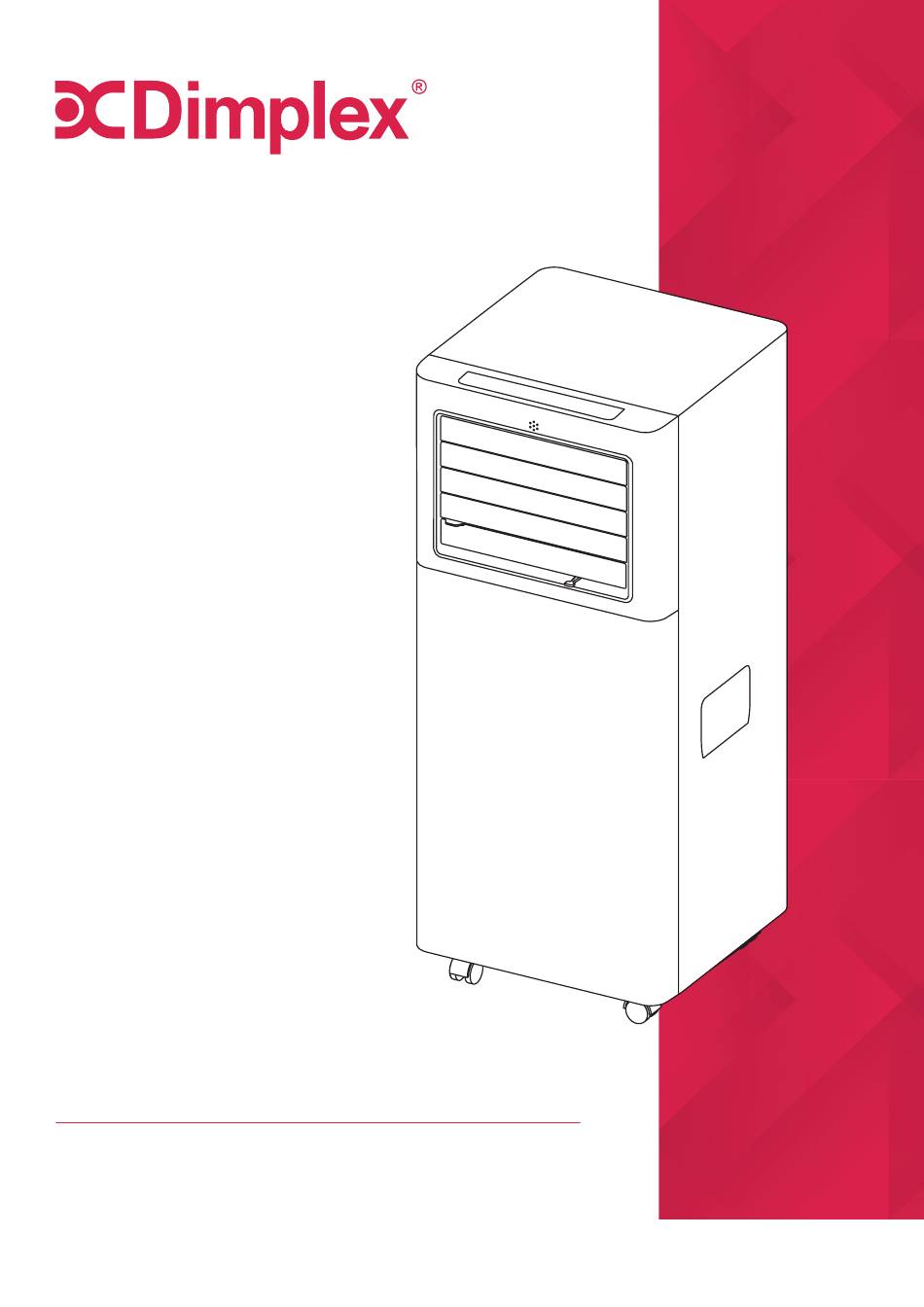

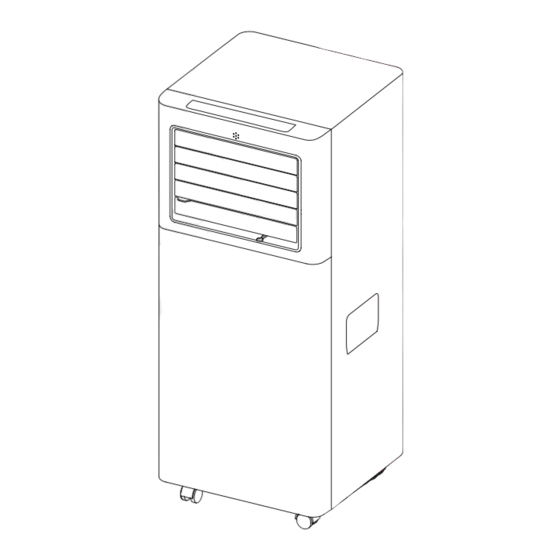

- Page 1 INSTRUCTION MANUAL 2.6kW Portable Air Conditioner Model: DCP9C For domestic household use only.
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/ OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your Portable Air Conditioner for the first time and keep them in a safe place.
- Page 3 may lead to a risk of fire or electric shock. • Only operate this appliance with a minimum of 50cm clearance all around i.e. away from walls, furniture and overhanging objects such as curtains or a shelf. • WARNING: To avoid danger of suffocation please remove all packaging materials particularly plastic and EPS and keep these away from vulnerable people, children and babies.
- Page 4 WARNING: For using R290 refrigerant. ThIs symbol shows that this appliance uses a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire. CAUTION: RISK OF FIRE/FLAMMABLE MATERIALS. THE APPLIANCE MUST BE INSTALLED, USED &...
- Page 5 1. Transport of equipment containing flammable refrigerants - see transport regulations 2. Marking of equipment using signs - see local regulations 3. Disposal of equipment using flammable refrigerants - see national regulations. 4. Storage of equipment/appliances - The storage of equipment should be in accordance with the manufacturer's instructions.
- Page 6 • Checks to the refrigeration equipment Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance.
- Page 7 • Repair to intrinsically safe components Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere.
- Page 8 • Charging procedures In addition to conventional charging procedures, the following requirements shall be followed. Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them. Cylinders shall be kept upright.
- Page 9 • Recovery When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available.
- Page 10 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children Where the power No extension leads or may be left unattended cable may be power boards damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 11: Specification
Specification Model no. DCP9C Colour White Power supply 220-240V~50Hz Operating temperature 17-35°C Thermostat range 17-30°C Rated Input Power 1.3kW Cooling Capacity 2.6kW Noise Level Minimum (Lo) 51dB(A) 54dB(A) Noise Level Maximum (Hi) 260/320 Air Volume (Lo/Hi) Refrigerant R290 Fan speeds Modes Cool, Dry &... - Page 12 Parts Control panel Remote control receiver Deflector Handle Castors Remote Upper air intake Plug fixer Air outlet Lower air intake Drain outlet Power cord...
-
Page 13: Control Panel
Control Panel Temp Adjustment Up (+) and Down (-) Mode Timer Indicators Indicator Timer Display Mode On/Off Screen Cool, Fan, Dry Remote Control On/Off Mode Sleep Increase Decrease Fan speed control Timer Unit switch... -
Page 14: Exhaust Hose Installation
Installation PREPARATION NOTE: All the illustrations in the manual are for explanatory purposes only. Your machine may be slightly different, but the actual shape will be similar. The unit can be controlled by the unit control panel alone or with the remote controller. NOTE: Open the deflecter before first time use EXHAUST HOSE INSTALLATION The exhaust hose and adaptor must be installed or removed in accordance with the... -
Page 15: Tools Needed
Installation NOTE: To ensure proper function, DO NOT overextend or bend the hose. Make sure that there is no obstacle round the air outlet of the exhaust hose (in the range of 500mm) in order to the exhaust system works properly. All the illustrations in this manual are for explanatory purposes only. - Page 16 Installation WINDOW INSTALLATION KIT Preparing the Exhaust Hose assembly • Extend either side of the hose (Fig. 1) and screw in the inlet (Fig. 2) • Extend the other side of the hose and screw it to the hose outlet (Fig. 3) Install the Exhaust hose assembly to the unit •...
- Page 17 Installation Preparing the Adjustable Window Slider • Depending on the size of your window, adjust the size of the window slider and (optionally) secure it with screws. • If the length of the window is less than the minimum length of the window kit, cut the end without the opeing short enough to fit.
-
Page 18: Fan Mode
Functions ON/OFF Press to turn the unit on/off. MODE Press the MODE button to select the appropriate operating MODE. The modes that can be selected, follow this sequence COOL > FAN and DRY. The selected mode indicator light will illuminate on the control panel. FAN MODE Press the MODE button until the FAN indicator light comes on. -
Page 19: Programming Shut Down
Functions PROGRAMMING START UP 1. Turn on the appliance, choose the desired mode (e.g. COOL, 24°C, high fan speed). Turn off the appliance. 2. Press the TIMER button, the Timer symbol and number of hours will flash. 3. Press the UP/DOWN buttons until the desired time is displayed. 4. -
Page 20: Led Display
Functions LED DISPLAY The LED display shows the set temperature while on COOL or AUTO MODE. While in DRY and FAN MODE, it shows the ambient room temperature. ERROR CODES - PROBE FAILURE (sensor damaged): if this is displayed, please contact your local authorised service centre - FULL TANK (water tank is full): Empty the internal water tank, following the instructions in the Functions section. -
Page 21: Air Flow Direction Adjustment
Functions WAIT 3 MINUTES BEFORE RESUMING OPERATION After the unit has been turned off, it can not be restarted in the first 3 minutes. This is to protect the unit & compressor. Operation will automatically start after 3 minutes. AIR FLOW DIRECTION ADJUSTMENT The vertical louvres need to be adjusted manually. - Page 22 Functions CONTINUOUS DRAINING (Fig 25) While using the unit in dry mode, continuous drainage is recommended. 1. Unplug the unit from the power source. 2. Remove the drain plug. While doing this operation some residual water may spill, a pan is recommened to collect the water. 3.
-
Page 23: Safety Precautions
Cleaning SAFETY PRECAUTIONS • Always unplug the unit before cleaning or servicing. • DO NOT use flammable liquids or chemicals to clean the unit. • DO NOT wash the unit under running water. Doing so causes electrical danger. • DO NOT operate the machine if the power supply was damaged during cleaning. -
Page 24: Maintenance
Maintenance Storage If not using the unit for an extended period of time. After cleaning please: • Turn the unit off, unplug and take care of the mains lead & plug. • Drain the unit’s water collection tray according to the instructions in the following section. -
Page 25: Warranty
Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 8 Lakeview Drive, 38 Harris Road, East Tamaki,... - Page 26 Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
