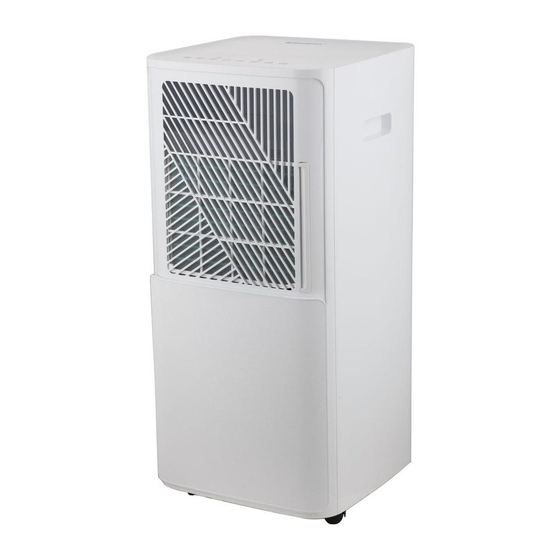

- Page 1 INSTRUCTION MANUAL Dimplex Ductless Model: DCP5DUCTLESS For domestic household use only.
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your Spot Cooler for the first time and keep them in a safe place.
- Page 3 This product should not be used for commercial or industrial or leisure applications or in small enclosed spaces. • To avoid a fire or electrocution hazard, NEVER put the cord near heat registers, radiator, stoves or heaters. • DO NOT cover cord with carpeting, throw rugs, runners, or similar coverings. •...
- Page 4 WARNING: For using R290 refrigerant. This symbol shows that this appliance uses a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire. CAUTION: RISK OF FIRE/FLAMMABLE MATERIALS. THE APPLIANCE MUST BE INSTALLED, USED &...
- Page 5 • Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants. • Please follow the instruction carefully to handle, install, clear, service the air conditioner to avoid any damage or hazard.
- Page 6 Checks to the refrigeration equipment • Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance.
- Page 7 Cabling • Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.
- Page 8 Decommissioning • Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant.
- Page 9 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children No extension leads or Where the power may be left unattended power boards cable may be damaged On a slope or Where there is risk Where it may be uneven surface...
- Page 10 Specification Model no. DCP5DUCTLESS Colour Optic White Power supply 220-240V~, 50Hz Operating temperature 16-35°C 16-31°C Thermostat range Rated Input Power 580W Cooling Capacity 1400W Dehumidification Capacity 27L/day Air Volume (m3/h) Noise Level 55dB(A) Refrigerant R290 Fan speeds Remote Yes (AAA*)
- Page 11 Parts Control Panel Air Outlet Carry handle Air Inlet Filter Air inlet Protective cover/ Water tank Castors Air outlet Carry handle Air inlet Drainage outlet Cord storage hook Power cord...
- Page 12 Control Panel The fan is in high setting mode Turbo function The fan is in low setting mode Sleep mode Timer switch indicator light Air speed button Power indicator Temperature/Timer decrease Celsius unit indicator Temperature/Timer increase Fahrenheit unit indicator Mode selection button Cooling mode indicator Timer function Dry mode indicator...
- Page 13 Remote Control The remote control can be used to perform all functions. Refer to the below diagram and table. Turbo function On/Off Dry mode Cooling mode Sleep mode Fan speed Temperature/ Temperature/ Timer decrease Timer increase BATTERY INSTALLATION (BATTERIES NOT INCLUDED) 1.
- Page 14 Operation ADDING WATER TO THE TANK If the water tank is short of water, the fault code LA will display on the control panel and the unit will automatically stop running. The user needs to unplug the power cord, remove the water tank and add water to the water tank. NOTE: Water must be added to the water tank prior to initial operation.
- Page 15 Operation 3. Replace the water tank and the decorative panel. Please use both hands to insert the water tank with appropriate force. If the water tank is not inserted properly, the device will report the fault code LA and cannot function properly. NOTE: The water tank under normal operation is expected to last ~4 hours before needing to be refilled.
- Page 16 Water Drainage 2. Connect the water outlet pipe. Insert the water pipe into the drainage adapter to ensure that the water does not leak out. The horizontal height of the water pipe should not be higher than the drainage outlet, nor should it be blocked, so that the condensation can be discharged smoothly.
- Page 17 Functions DRY MODE When the device is turned on, press the MODE button to cycle to the DRY mode. While in Dry mode, the unit will remove excess moisture in the air. The fan speed will be operate at low speed. NOTE: It is recommended to install the provided drain hose when operating in Dry mode, as the hose will continuously drain the excess water in the tank.
- Page 18 Functions SETTING THE TIMER The timer can be set to scheduled the unit to turn ON or to schedule the unit to turn OFF. To set the unit to automatically turn ON, follow the below instructions: 1. While the unit is OFF press the TIMER button and select the desired time. The timer can be set in 1 hour increments up to 24 hours.
- Page 19 Error Codes ERROR CODES FU - Indicates the internal water container is full. Refer to the Water Drainage section. LA - Water shortage protection. After continuous detection of water shortage, the compressor immediately stops working. After a few minutes, the error code 'LA' is reported before shutting down / - Anti-freeze protection.
- Page 20 Cleaning SAFETY PRECAUTIONS • Always unplug the unit before cleaning or servicing. • DO NOT use flammable liquids or chemicals to clean the unit. • DO NOT wash the unit under running water. Doing so causes electrical danger. • DO NOT operate the machine if the power supply was damaged during cleaning. A damaged power cord must be replaced with a new cord from the manufacturer.
- Page 21 Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 8 Lakeview Drive, 38 Harris Road, East Tamaki,...
- Page 22 Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
