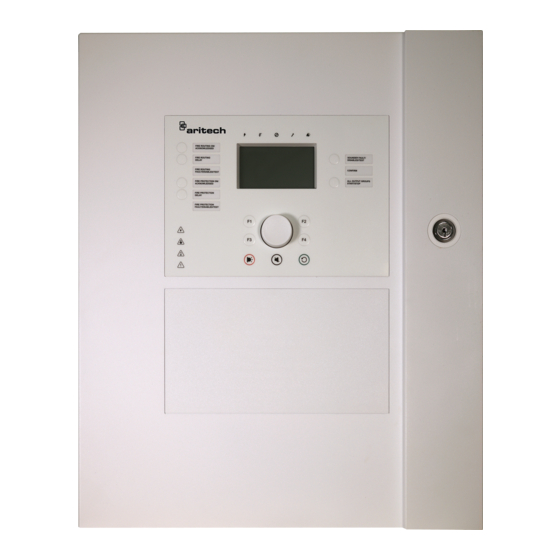

Aritech 2X-A Series Quick Operation Manual

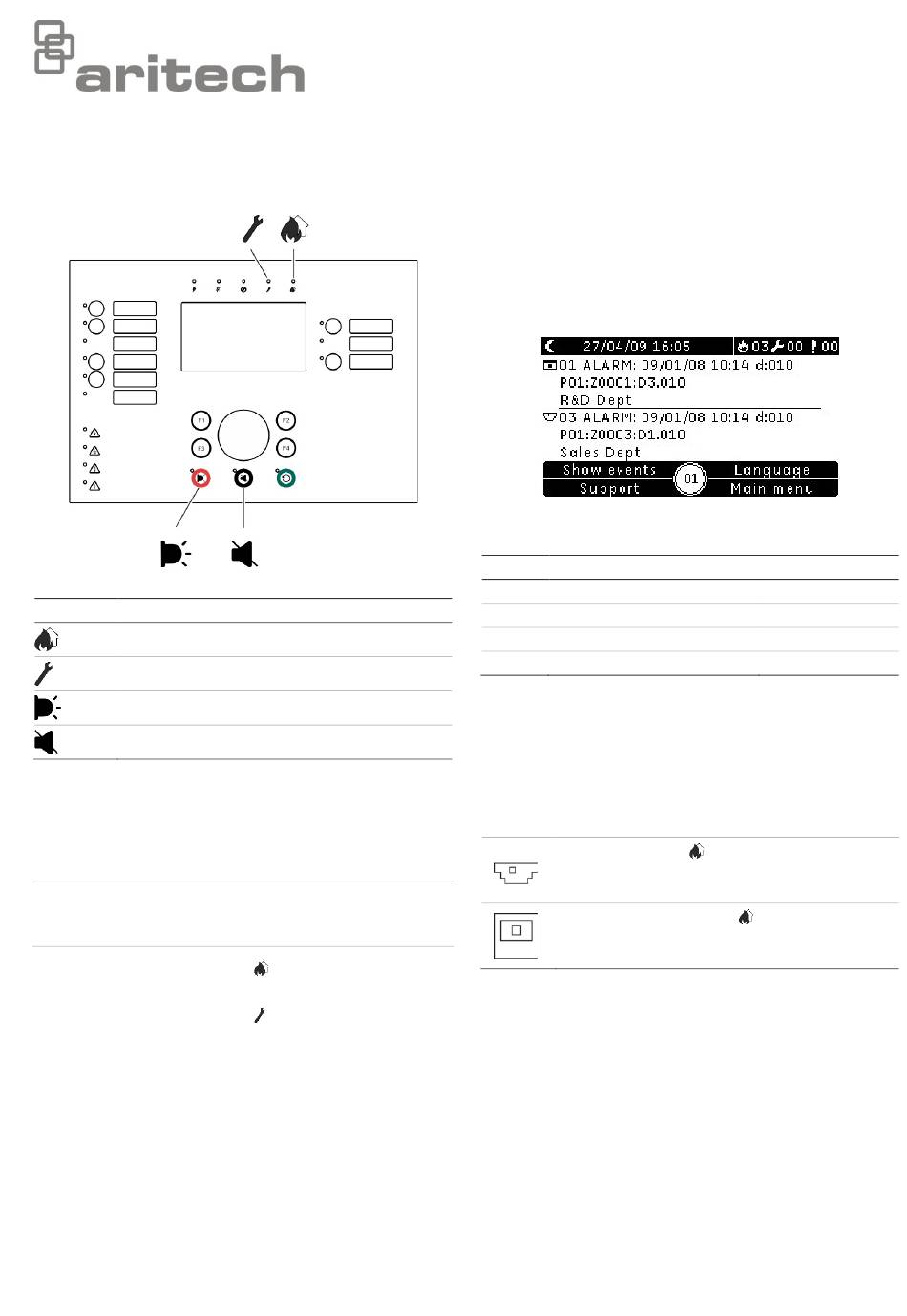

2X-A Series Quick Operation Guide
Icon Description
Fire Alarm LED
Fault LED
Sounder Start/Stop button and LED
Panel Silence button and LED
If you hear the buzzer
Determine the cause of the buzzer
WARNING: Depending on your fire alarm system
configuration, the buzzer may be your first indication of a fire
alarm.
If the buzzer is sounding and the
then it's a fire alarm.
If the buzzer is sounding and the
fault.
© 2022 Carrier. All rights reserved.
LED is flashing or steady,
LED is steady, then it's a
For a fire alarm
1. Determine the location of the fire
Check the location of the fire. The LCD message area displays
information from the first and last zones to report an alarm.
Alarm location details are indicated as follows.
LCD Description
d Number of devices in alarm
P Control panel ID
Z Zone
D Loop and device
In this example, P01:Z0001:D3.010, an alarm has been
activated by device 10 on loop 3 in zone 1 on control panel 1
(ten devices are in alarm in the corresponding zone).
2. Determine the source of the fire alarm
The following LCD icons indicate the source of the fire alarm.
Detector alarm. If the
icon is displayed on the LCD, then the system has
detected a detector alarm.
Manual call point alarm. If the
manual call point icon is displayed on the LCD, then the
system has detected a manual call point alarm.
3. Verify the fire alarm
If necessary, investigate the location of the fire alarm to
confirm that the alarm is genuine.
Depending on the configuration of your fire alarm system, you
may have up to ten minutes to investigate the alarm before
sounders and other alarm notification devices are activated.
1 / 2
Example
d:010
P01
Z0001
D3.010
LED is flashing and the detector
LED is steady, and the
P/N 00-3280-508-0003-01 • ISS 09DEC22
