30

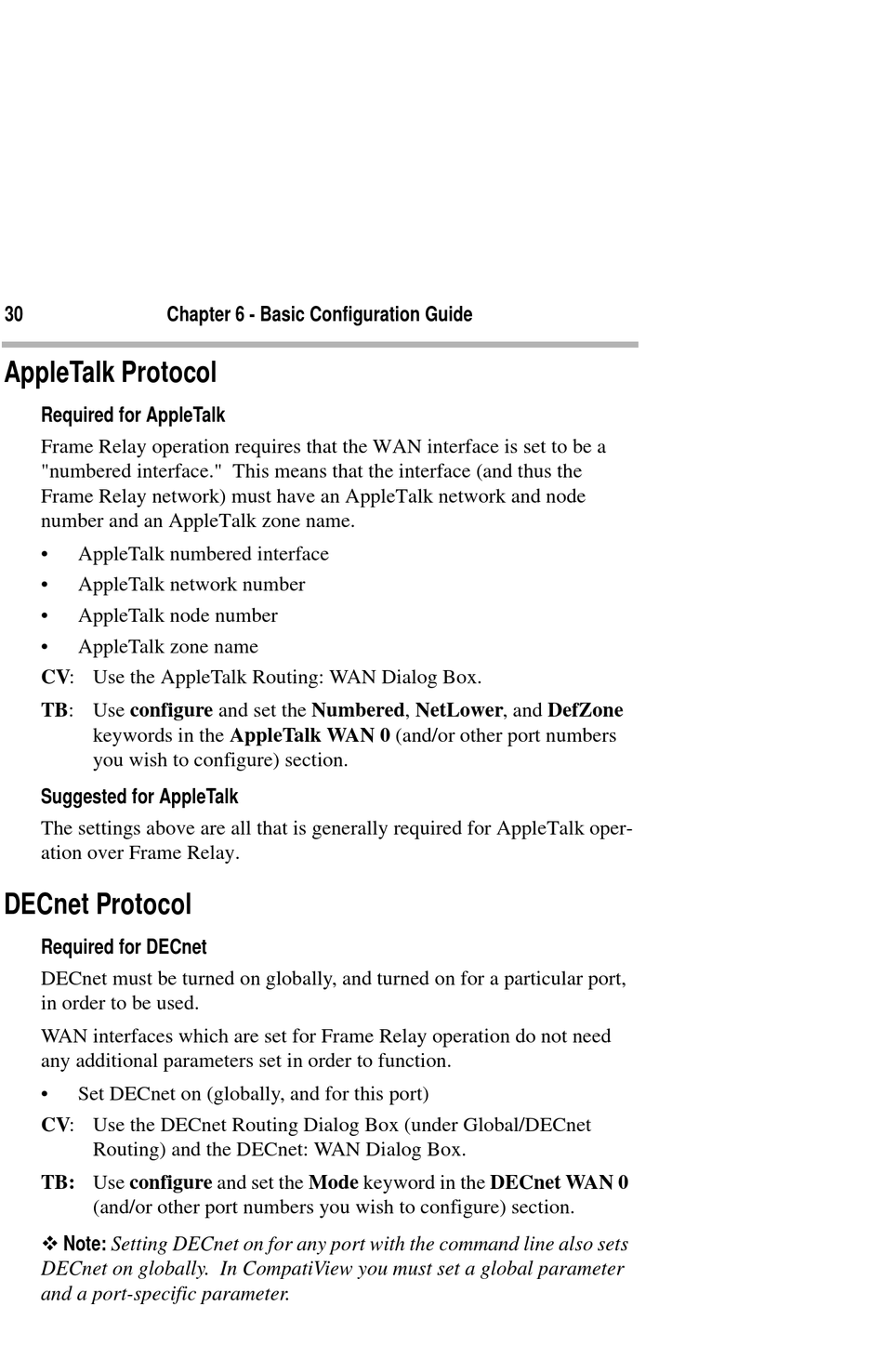

Chapter 6 - Basic Configuration Guide
AppleTalk Protocol
Required for AppleTalk
Frame Relay operation requires that the WAN interface is set to be a
"numbered interface." This means that the interface (and thus the
Frame Relay network) must have an AppleTalk network and node
number and an AppleTalk zone name.
•
AppleTalk numbered interface
•
AppleTalk network number
•
AppleTalk node number
•
AppleTalk zone name
CV: Use the AppleTalk Routing: WAN Dialog Box.
TB: Use configure and set the Numbered, NetLower, and DefZone
keywords in the AppleTalk WAN 0 (and/or other port numbers
you wish to configure) section.
Suggested for AppleTalk
The settings above are all that is generally required for AppleTalk oper-
ation over Frame Relay.
DECnet Protocol
Required for DECnet
DECnet must be turned on globally, and turned on for a particular port,
in order to be used.
WAN interfaces which are set for Frame Relay operation do not need
any additional parameters set in order to function.
•
Set DECnet on (globally, and for this port)
CV: Use the DECnet Routing Dialog Box (under Global/DECnet
Routing) and the DECnet: WAN Dialog Box.
TB: Use configure and set the Mode keyword in the DECnet WAN 0
(and/or other port numbers you wish to configure) section.
v Note: Setting DECnet on for any port with the command line also sets
DECnet on globally. In CompatiView you must set a global parameter
and a port-specific parameter.
