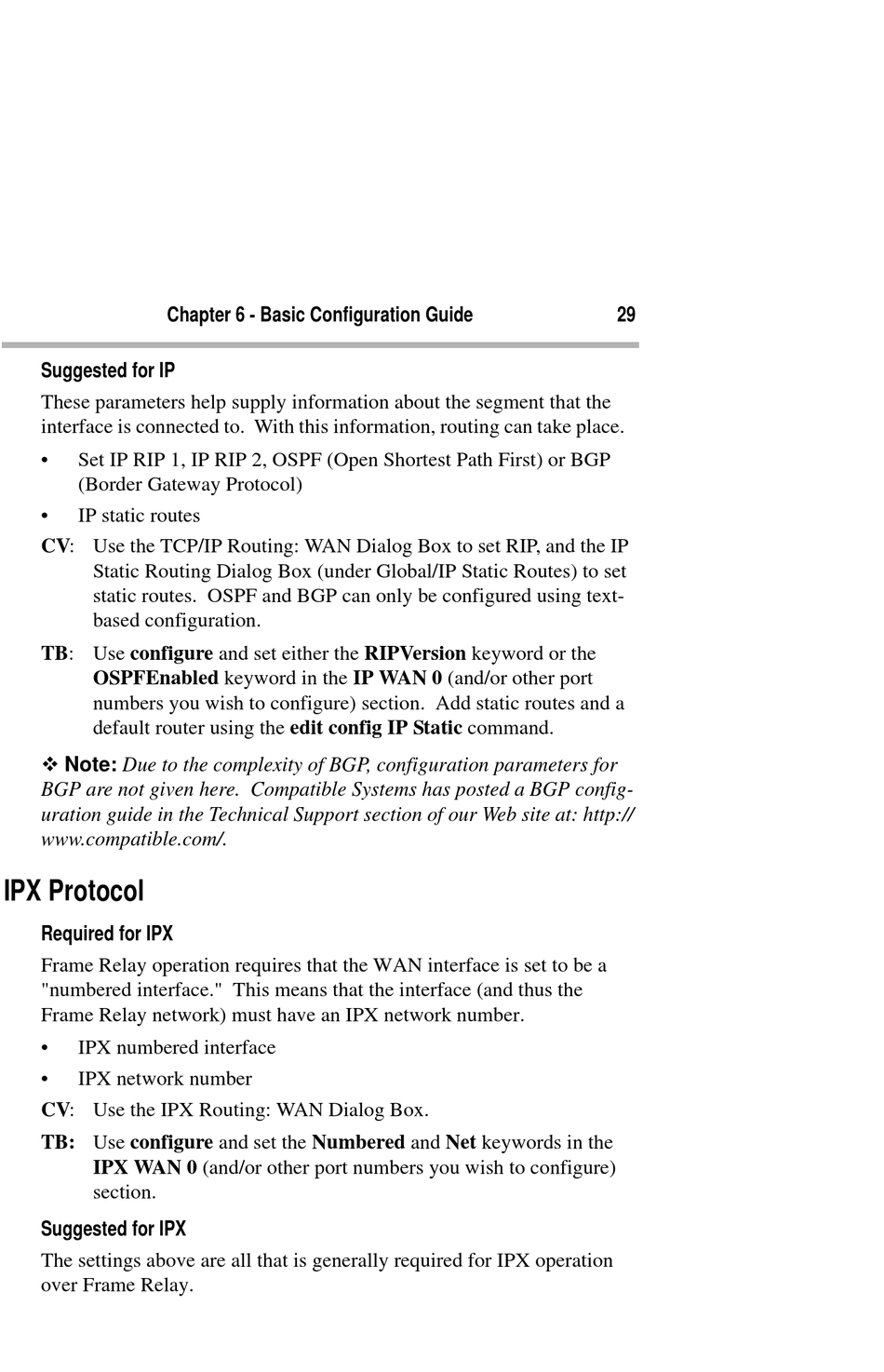

Chapter 6 - Basic Configuration Guide

Suggested for IP

These parameters help supply information about the segment that the
interface is connected to. With this information, routing can take place.
• Set IP RIP 1, IP RIP 2, OSPF (Open Shortest Path First) or BGP
(Border Gateway Protocol)
• IP static routes
CV: Use the TCP/IP Routing: WAN Dialog Box to set RIP, and the IP
Static Routing Dialog Box (under Global/IP Static Routes) to set
static routes. OSPF and BGP can only be configured using text-
based configuration.
TB: Use configure and set either the RIPVersion keyword or the
OSPFEnabled keyword in the IP WAN 0 (and/or other port
numbers you wish to configure) section. Add static routes and a
default router using the edit config IP Static command.
v Note: Due to the complexity of BGP, configuration parameters for
BGP are not given here. Compatible Systems has posted a BGP config-
uration guide in the Technical Support section of our Web site at: http://
www.compatible.com/.

IPX Protocol

Required for IPX

Frame Relay operation requires that the WAN interface is set to be a
"numbered interface." This means that the interface (and thus the
Frame Relay network) must have an IPX network number.
• IPX numbered interface
• IPX network number
CV: Use the IPX Routing: WAN Dialog Box.
TB: Use configure and set the Numbered and Net keywords in the
IPX WAN 0 (and/or other port numbers you wish to configure)
section.

Suggested for IPX

The settings above are all that is generally required for IPX operation
over Frame Relay.
29
