Appendix B - Connector and Cable Pin Outs

Appendix B - Connector and
Cable Pin Outs

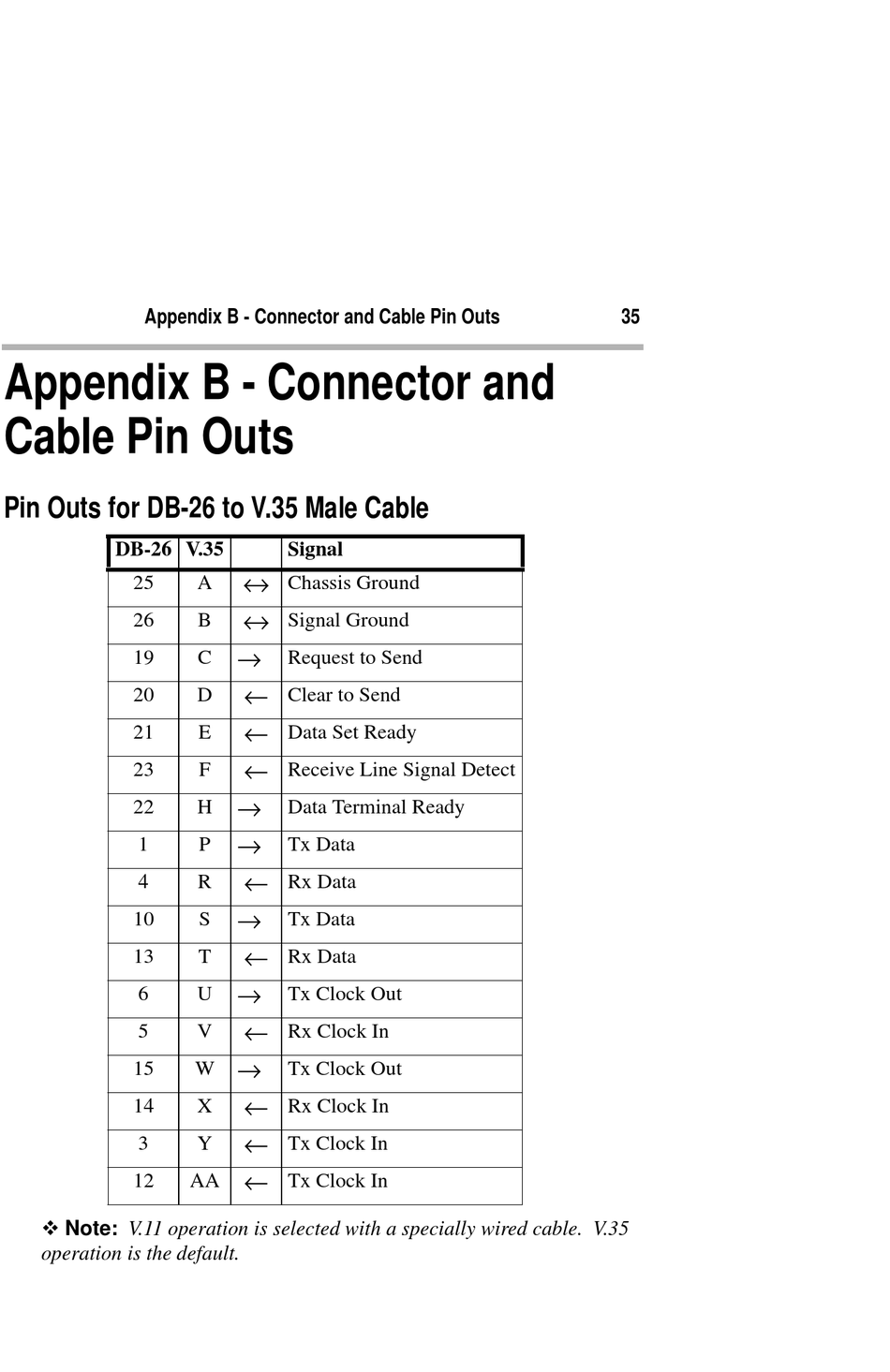

Pin Outs for DB-26 to V.35 Male Cable

DB-26 V.35
25 A
26 B
19 C
20 D
21 E
23 F
22 H
1 P
4 R
10 S
13 T
6 U
5 V
15 W
14 X
3 Y
12 AA
v Note: V.11 operation is selected with a specially wired cable. V.35
operation is the default.
Signal
Chassis Ground
Signal Ground
Request to Send
Clear to Send
Data Set Ready
Receive Line Signal Detect
Data Terminal Ready
Tx Data
Rx Data
Tx Data
Rx Data
Tx Clock Out
Rx Clock In
Tx Clock Out
Rx Clock In
Tx Clock In
Tx Clock In
