36
Appendix B - Connector and Cable Pin Outs

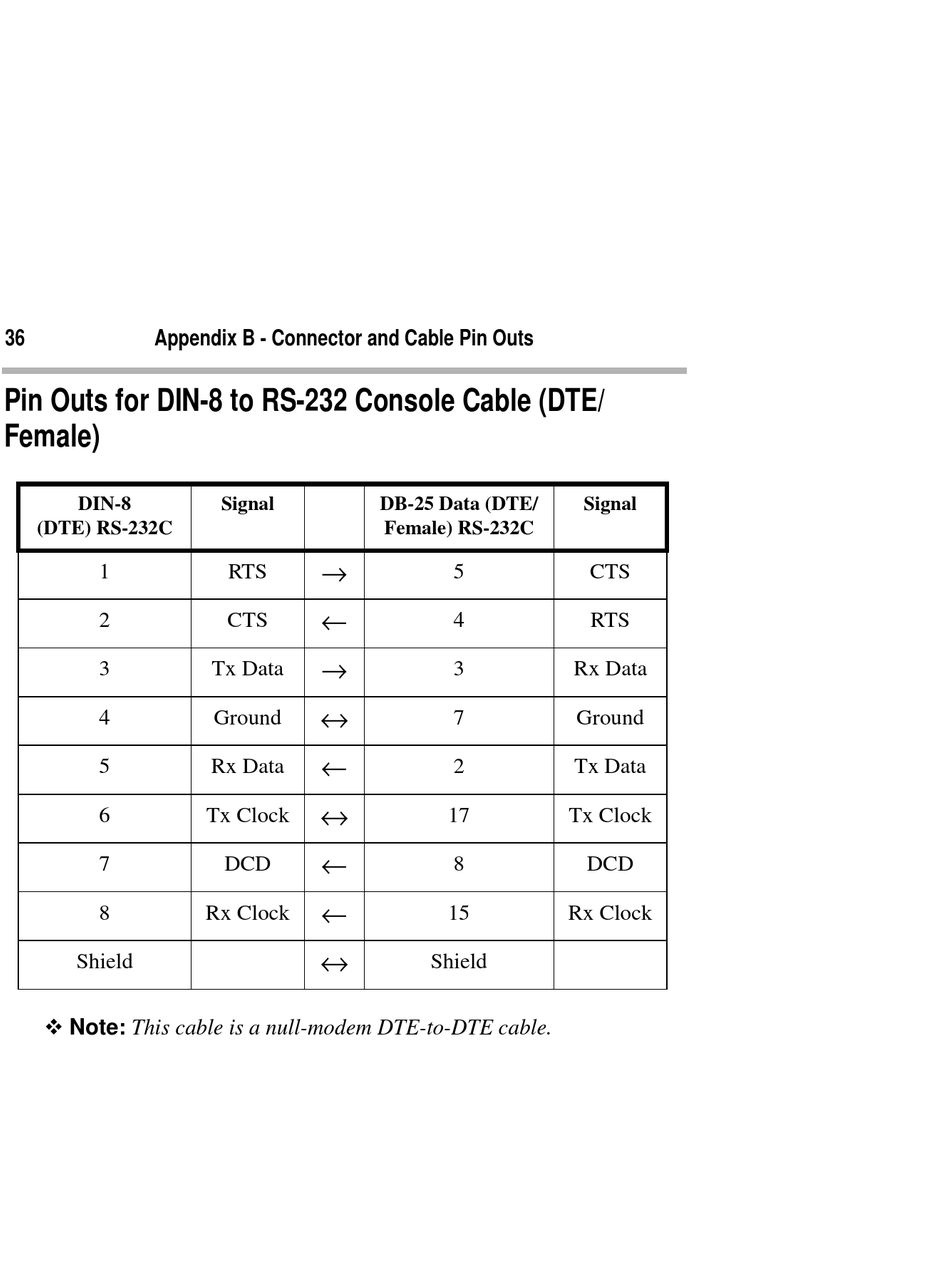

Pin Outs for DIN-8 to RS-232 Console Cable (DTE/
Female)
DIN-8
Signal
(DTE) RS-232C
1
2
3
Tx Data
4
Ground
5
Rx Data
6
Tx Clock
7
8
Rx Clock
Shield
v Note: This cable is a null-modem DTE-to-DTE cable.
DB-25 Data (DTE/
Female) RS-232C
RTS
CTS
DCD
Shield
Signal
5
CTS
4
RTS
3
Rx Data
7
Ground
2
Tx Data
17
Tx Clock
8
DCD
15
Rx Clock
