Summary of Contents for HOMEDEPOT CFN-1203

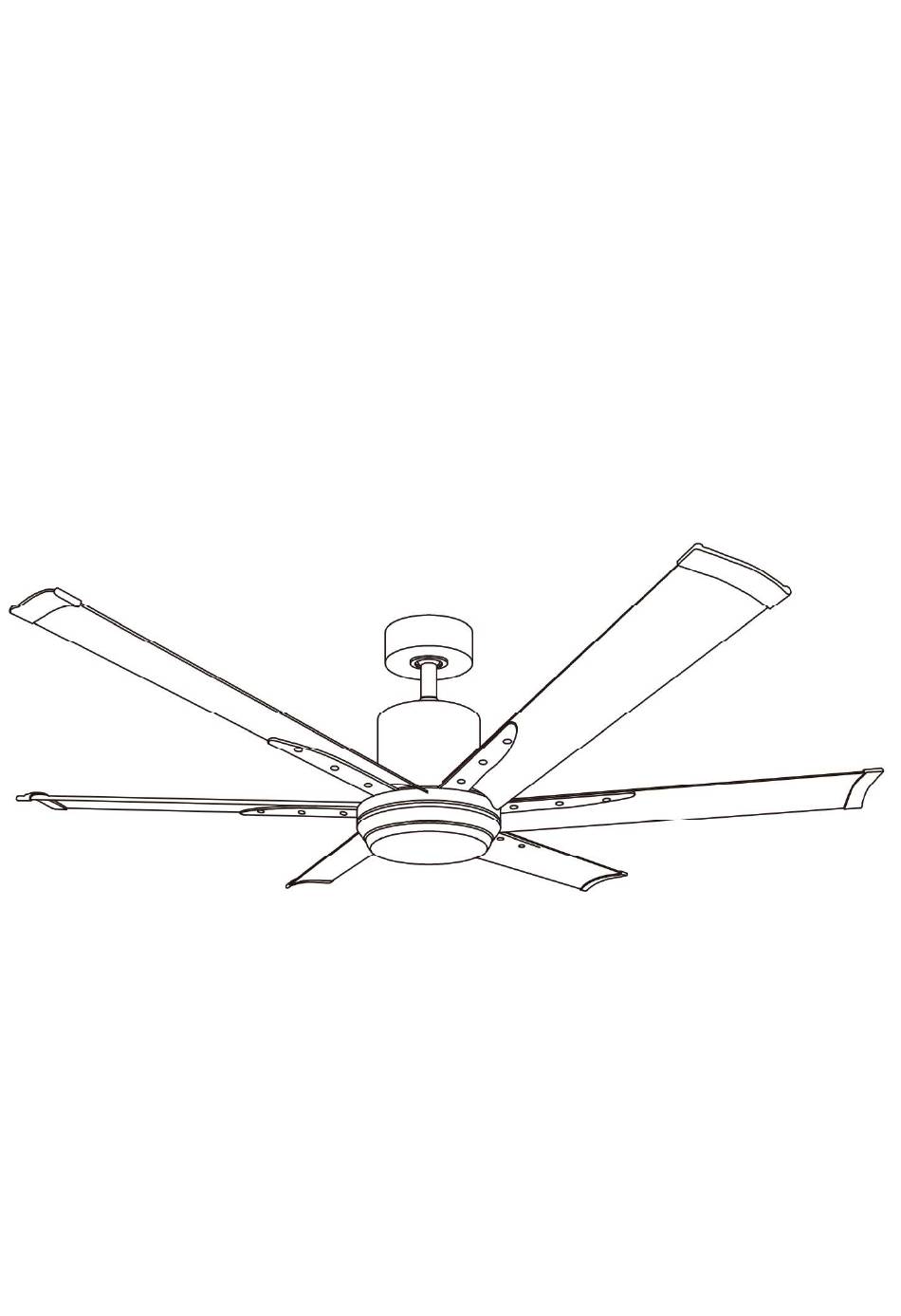

- Page 1 V20221018 CFN-1203 Instruction Manual Read Carefully Before Use Keep for Future Reference...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ·························································································· 1 Package Contents ················································································· 2 Safety Information·················································································· 3 Preparation ·························································································· 4 Initial Installation ··················································································· 5 Downrod Mounting ················································································ 5 Circuit Connections ··············································································· 6 Canopy and Cover Installation ································································· 7 Fan Blade Installation ············································································· 7 Light Installation ··················································································· 8 Color Temperature Adjustment ·································································... -
Page 3: Package Contents
PACKAGE CONTENTS a. Fan Blades (×6) b. Ceiling Mounting Bracket c. Canopy d. Canopy Cover e. Downrod f. Coupling Cover g. Fan Motor Assembly h. Blade Holders (×6) i. Light Plate j. LED Light Kit k. Glass Shade l. Remote Control m. -
Page 4: Safety Information
SAFETY INFORMATION Warning! 1. To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker or fuse box before beginning. 2. All wiring must be in accordance with national and local electrical codes. Electrical installation should be performed by a qualified licensed electrician. -
Page 5: Preparation
PREPARATION 1. Turn Off Your Power Begin installation by removing fuses or turning off circuit breakers to the wiring you will be using. Use your compatible UL listed outlet box if you already have one installed. Failure to disconnect the power supply prior to installation may result in serious injury or death. -
Page 6: Initial Installation
INITIAL INSTALLATION Outlet Box Washers Ceiling Mounting Bracket Hook Mounting Screws/Bolts 120V Wires Step 1. Pass the 120V supply wires through the center hole in the ceiling mounting bracket. Step 2. Secure the ceiling mounting bracket to the outlet box with the provided mounting screws or bolts and spring or star washers. -
Page 7: Circuit Connections
CIRCUIT CONNECTIONS Again, ensure that the power has been cut before working with the wiring. Use the wire nuts provided with your fan. Receiver Ceiling Mounting Ensure there are no loose wires or connections, Bracket and secure connectors with electrical tape. Step 1. -
Page 8: Canopy And Cover Installation
CANOPY AND COVER INSTALLATION Outlet Box Ceiling Mounting Bracket Mounting Screws/Bolts Canopy Canopy Cover Step 1. Tuck all the connections neatly into the outlet box. Step 2. Slide the canopy up to the ceiling mounting bracket and place the key hole slots over the mounting screws or bolts on the bracket. -
Page 9: Light Installation
LIGHT INSTALLATION Step 1. Remove the pre-installed bolts on the fan motor assembly. Step 2. Feed the wire connectors through the middle of the light plate. Install the light plate onto the motor assembly and secure it by replacing and retightening the bolts. Step 3. -
Page 10: Remote Control Operation
REMOTE CONTROL OPERATION Install the remote control holder onto any wall or suitable flat surface using the two steel screws. Function Starts the fan at low speed Starts the fan at medium speed Starts the fan at high speed STOP Stops the fan LIGHT Turns the light on or off... -
Page 11: Troubleshooting
ASAP! For a .pdf copy of the latest version of these instructions, use the appropriate app on your smartphone to scan the QR code to the right. CFN-1203-BK CFN-1203-NI Rev. 1 Jun. 2022...
