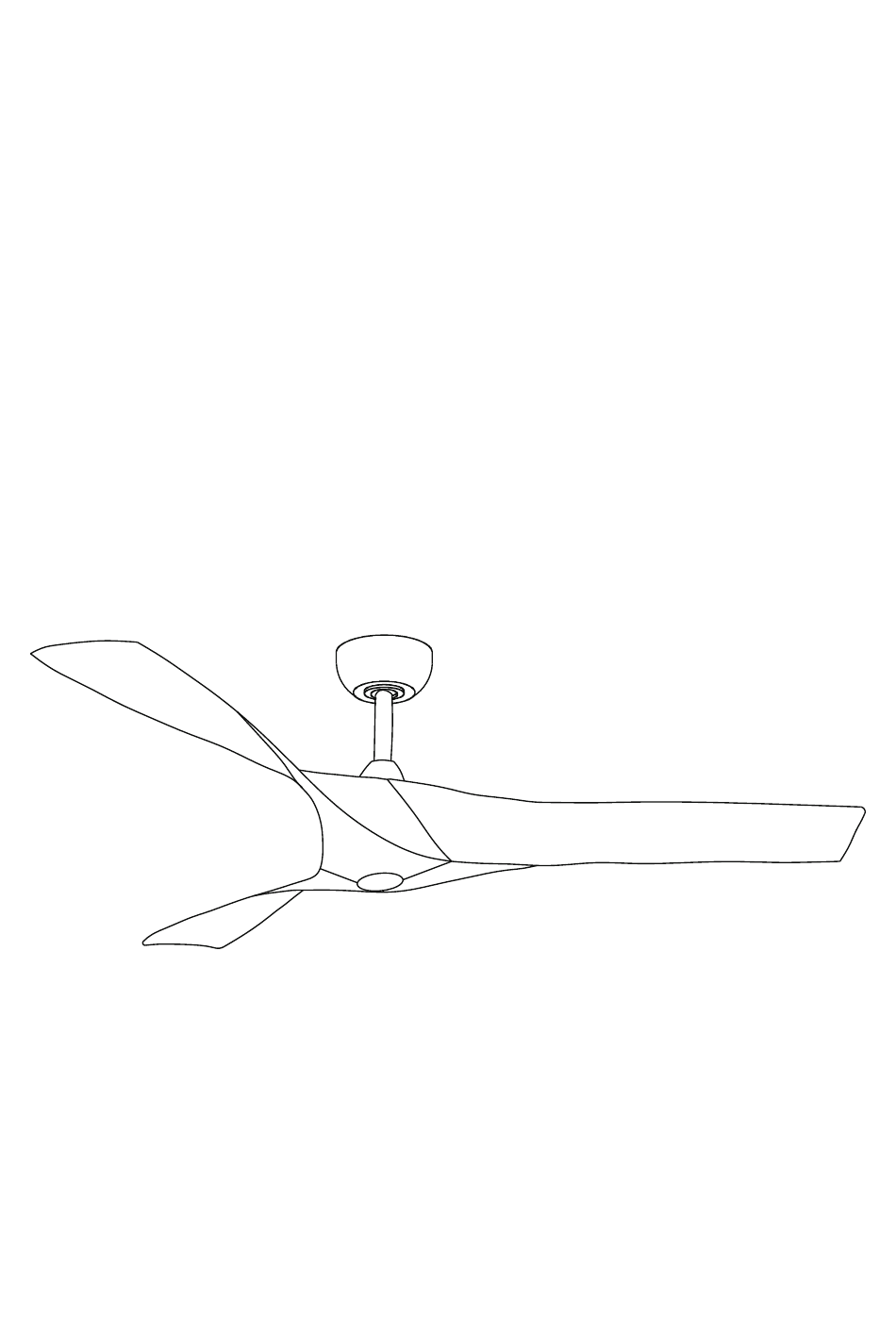

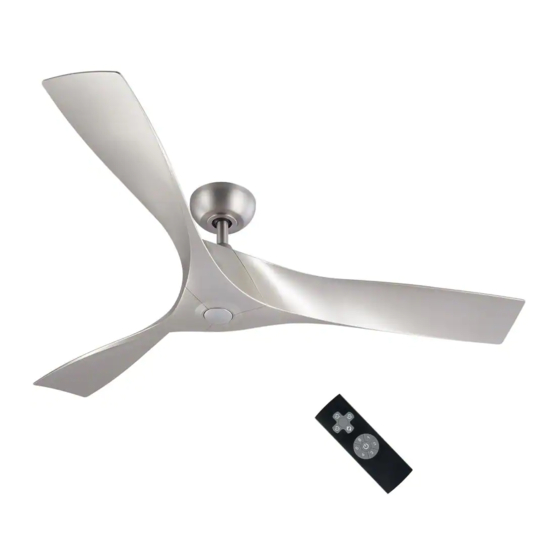

- Page 1 V20200306 CFN-1032 Ceiling Fan User Manual Read completely before installation & use and keep for future reference...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ·················································································· 1 Package Contents ········································································· 2 Safety Information·········································································· 3 Preparation ·················································································· 4 Bracket Installation········································································· 5 Downrod Mounting········································································· 6 Electrical Connections ···································································· 7 Receiver Installation ······································································· 8 Fan Blades Installation···································································· 8 Remote Control Operation ······························································· 9 Troubleshooting ···········································································10 Contact Information·······································································10 INTRODUCTION Before beginning installation of this product, read the package list on page 2 and ensure all... -
Page 3: Package Contents
TABLE OF CONTENTS Mounting Bracket Coupling Cover Canopy Cover Downrod Canopy Decorative Cover Kit Fan Motor Assembly Receiver Remote Control Fan Blades (×3) Joint Screws Spring Washers (×4) Wood Screw (×4) Wiring Caps (×6) Balance Kit Metal Washers (×4) Star Washers (×4) Bolts (×2) -
Page 4: Safety Information
SAFETY INFORMATION Warning! 1. To reduce the risk of electric shock,ensure electricity has been turned off at the circuit breaker or fuse box before beginning. 2. All wiring must be in accordance with national and local electrical codes. Electrical installation should be performed by a qualified licensed electrician. 3. -
Page 5: Preparation
PREPARATION 1. Turn Off Your Power Begin installation by removing fuses or turning off circuit breakers to the wiring you will be using. Use your compatible UL listed junction box if you already have one installed. Failure to disconnect the power supply prior to installation may result in serious injury or death. -
Page 6: Bracket Installation
BRACKET INSTALLATION Junction Box Washers Ceiling Mounting Bracket Hook Mounting Screws (supplied with the junction box) 110V Wires Loosen the screws on the fan hanger and fix the fan hanger to the ceiling outlet box with the wood screws and spring washers. Pass the electrical supply wires through the center hole in the mounting bracket. -
Page 7: Downrod Mounting
DOWNROD MOUNTING Downrod Clip ×2 Canopy ×2 Canopy Downrod Downrod Canopy Cover Canopy Cover Set Screw Coupling Cover Coupling Cover Hitch Pin Retaining Clip Step 1: Remove the pin Step 2: Carefully place the Step 3: Install the downrod and clip from the downrod. canopy, canopy cover, and onto the yoke, aligning the Then partially loosen the... -
Page 8: Electrical Connections
ELECTRICAL CONNECTIONS Again, ensure that the power has been cut before working with the wiring. Use the wire nuts provided with your fan. Ensure there are no loose wires or connections, Receiver and secure connectors with electrical tape. Ceiling Step 1: Insert the receiver into the tray with the Mounting Bracket receiver facing the ceiling. -
Page 9: Receiver Installation
RECEIVER INSTALLATION Outlet Box Ceiling Mounting Tuck all the connections neatly into the Bracket ceiling outlet box. Slide the canopy up to the mounting bracket and place one Receiver of the key hole slots over the mounting screw on the mounting bracket. Tighten the screws. -
Page 10: Remote Control Operation
REMOTE CONTROL OPERATION Install the remote control holder onto any wall or suitable flat surface using the two steel screws. Upon first use, connect the remote control to its receiver in the fan by holding the remote's button. There should be a beep to announce that the remote has successfully connected to its receiver. -
Page 11: Troubleshooting
TROUBLESHOOTING Potential Problems Common Solutions Check fuses and/or circuit breakers and reset if needed. Cut off power to the fan and check its internal electrical connections. Fan blades Replace the remote control batteries. don't rotate Check that the fan cover is correctly placed and no screws interfere with the movement of the blades.
