By JLA1008 Rev A at 11:14 am, May 11, 2022
Frontload Washers
Metered Commercial
Original Instructions
Keep These Instructions for Future Reference.
FLW1542C_SVG
CAUTION: Read the instructions before using the machine.
(If this machine changes ownership, this manual must accompany machine.)
Part No. 805412R7
September 2020
Advertisement
Table of Contents

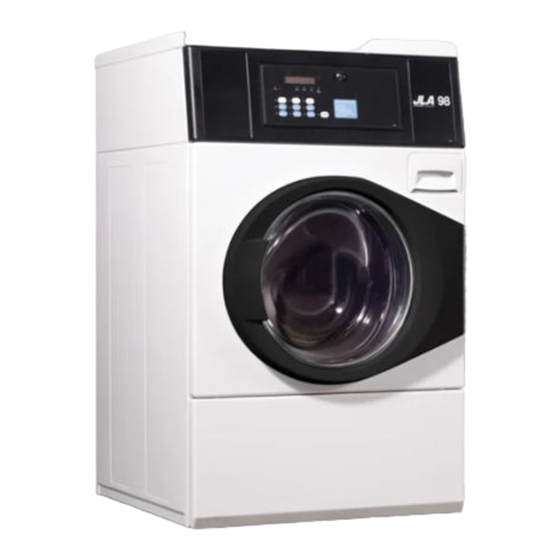

Summary of Contents for JLA 98
- Page 1 By JLA1008 Rev A at 11:14 am, May 11, 2022 Frontload Washers Metered Commercial Original Instructions Keep These Instructions for Future Reference. FLW1542C_SVG CAUTION: Read the instructions before using the machine. (If this machine changes ownership, this manual must accompany machine.) Part No.
- Page 3 WARNING Failure to install, maintain, and/or operate this ma- chine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 WARNING For your safety and to reduce the risk of fire or an explosion, do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
-
Page 4: Safety Information
Safety Information Safety Information Important Safety Instructions Save These Instructions Explanation of Safety Messages WARNING Precautionary statements (“DANGER,” “WARNING,” and “CAUTION”), followed by specific instructions, are found in this To reduce the risk of fire, electric shock, serious in- manual and on machine decals. These precautions are intended jury or death to persons when using your washer, for the personal safety of the operator, user, servicer, and those follow these basic precautions:... - Page 5 Safety Information • Children less than three years should be kept away unless Always contact your dealer, distributor, service agent or the man- continuously supervised. ufacturer about any problems or conditions you do not under- stand. • Do not reach into the washer if the washtub or agitator, if ap- plicable, is moving.
-
Page 6: Table Of Contents
Table of Contents Safety Information................. 4 Explanation of Safety Messages............... 4 Important Safety Instructions................4 Dimensions and Specifications..............8 Installation................... 10 Before You Start................... 10 Tools......................10 OPL Models..................... 10 Order of Installation Steps................10 Position Unit Near Installation Area............... 10 Remove Shipping Materials................ - Page 7 Lubrication....................24 Cold Weather Care..................24 Care of Your Washer..................24 Cleaning Glass Sealing Area..............24 Replacing Hoses..................24 Filter Screens.................... 24 Extended Non-Use..................24 Cleaning Foreign Object Trap..............24 Reinstallation of Shipping Materials............25 Troubleshooting..................26 Contact Information................28 Installer Checklist.................29 © Published by permission of the copyright owner - Part No.
-
Page 8: Dimensions And Specifications
Dimensions and Specifications Dimensions and Specifications The workstation average sound pressure level is 68.7 dBA. Models Equipped With Drain Hose FLW2333N_SVG 24 in. [610 mm] 44.34 in. [1126 mm] 32 in. [813 mm] 36.94 in. [938 mm] 14.6 in. [371 mm] 26.875 in. - Page 9 Dimensions and Specifications Models With Gravity Drain FLW2334N_SVG 1. 1.5 in. [38 mm] Inside Diameter; 1.86 in. [47 mm] Outside Diameter 24 in. [610 mm] 44.34 in. [1126 mm] 32 in. [813 mm] 36.94 in. [938 mm] 14.6 in. [371 mm] 26.875 in.
-
Page 10: Installation
Installation Installation NOTE: This appliance is suitable for use in countries Before You Start having a warm, damp climate. Tools OPL Models For most installations, the basic tools you will need are: The machine is shipped from the factory with the Electronic Con- trol Diagnostic Harness Assembly unplugged. -
Page 11: Remove Shipping Materials
Installation NOTE: For best performance and to minimize vibration NOTE: Avoid backing bolts out completely or or movement, install washer on a solid, sturdy and lev- spacers might fall into cabinet. el floor. Some floors may need to be reinforced, espe- cially on a second floor or over a basement. -
Page 12: Water Supply Requirements
Installation Models Through Serial Nos. Beginning 1810: Water Supply Requirements NOTE: Water supply faucets must fit standard 3/4 inch [19 mm] female If using black rubber hoses with black and brass cou- garden hose couplings. DO NOT USE SLIP-ON OR CLAMP- plings: Insert filter screens into the BLACK colored ON CONNECTIONS. -
Page 13: Install Appropriate Electrical Cord - Washers Equipped With Heater
Installation Have a qualified electrician install appropriate electrical recepta- cle. COLD To attach customer-supplied power cord: 1. Remove electrical access panel on rear of machine. 2. Remove plastic plug from hole in rear of machine. 3. Install strain relief, supplied with machine, in hole. 4. -
Page 14: Converting From 230 Volt/Single-Phase To 400 Volt/3-Phase Wye
Installation Terminal Block Wired For 230 Volt Single-Phase As Viewed Through Rear Access Panel FLW2337N_SVG1 1. Install power cord through this hole after removing plastic plug. Use strain relief supplied in accessories bag. Figure 10 5. On terminal block quick-disconnect terminals, remove black/ FLW2030N_SVG1 white wire from L1 and attach to terminal L2. -
Page 15: Converting From 230 Volt/Single-Phase To 230 Volt/3-Phase Delta
Installation Terminal Block Wired For 400 Volt WYE As Viewed Through Rear Access Panel FLW2337N_SVG1 L 1 L 2 L 3 1. Install power cord through this hole after removing plastic plug. Use strain relief supplied in accessories bag. Figure 12 5. -
Page 16: Install Appropriate Electrical Cord - Washers Without Heater
Installation Terminal Block Wired For 230 Volt DELTA As Viewed Through Rear Access Panel FLW2337N_SVG1 L 1 L 2 L 3 1. Install power cord through this hole after removing plastic plug. Use strain relief supplied in accessories bag. Figure 14 5. -
Page 17: Drain Hose Models - Connect Drain Hose To Drain Receptacle
Installation Terminal Block Wired For 230 Volt Single-Phase As Drain Flow Rate Viewed Through Rear Access Panel Flow Rate gallons per minute [lit- ers per minute] Drain Height 7 ft. [2.1 m] 1.3 [4.8] 8 ft. [2.4 m] 0 [0] FLW2240N_SVG1 1. -
Page 18: Gravity Drain Models - Connect Drain Outlet To Drain System
Installation FLW2338N_SVG 1. 24 to 36 in. [610 to 914 mm] Recommended Height 2. Beaded strap from accessory bag 3. Standpipe 2 in. [51 mm] or 1-1/2 in. [40 mm] Figure 17 Gravity Drain Models - Connect Drain FLW2339N_SVG 1. Drain Trough Outlet to Drain System 2. -
Page 19: Wipe Out Inside Of Wash Drum
Installation 4. If unit is not level, tilt unit to access the front and rear level- ing legs. For easier access to leveling legs, prop up unit with a wooden block. 5. Loosen 7/8 in. locknut and adjust legs by screwing into or out of unit base until the unit is level from side to side and front to back (using a level). -
Page 20: Earth/Ground Instructions
Installation If the laundry room’s electrical supply does not meet the above WARNING specifications and/or if you are not sure the laundry room has an effective earth/ground, have a qualified electrician or your local electrical utility company check it and correct any problems. To reduce the risk of an electric shock or fire, DO NOT use an extension cord or an adapter to connect WARNING... -
Page 21: Operation
Operation Operation Operation Instructions IMPORTANT: Prior to first wash, use an all-purpose cleaner, or a detergent and water solution, and a damp cloth to remove shipping dust from inside of washer. IMPORTANT: Remove all sharp objects from laundry to avoid tears and rips to items during normal machine operation. -
Page 22: Set Fabric Selector/Wash Temperature
Operation W388I_SVG LIQUID BLEACH Figure 26 To Insert Card Insert card into opening. FLW2389N_SVG 1. Main Wash Detergent 2. Liquid Bleach 3. Fabric Softener 4. Pre-Wash Detergent Figure 24 Set Fabric Selector/Wash Temperature Push touchpad for the desired cycle. Refer to the control panel for cycle descriptions. -
Page 23: Indicator Lights
Operation WARNING To reduce the risk of bodily injury, do not remove laundry from washer until all lights are out, and all moving parts have stopped. W092 FLW2391N_SVG Figure 28 Indicator Lights Coin On coin models, coin is lit to prompt the user to insert coins to satisfy the vend price. -
Page 24: Maintenance
Maintenance Maintenance User-Maintenance Instructions Replacing Hoses Hoses and other rubber parts deteriorate after extended use. Ho- Lubrication ses may develop cracks, blisters or material wear from the tem- All moving parts are sealed in a permanent supply of lubricant or perature and constant high pressure they are subjected to. -
Page 25: Reinstallation Of Shipping Materials
Maintenance FLW2297N_SVG 1. Shipping Bolt Assembly FLW2444N_SVG2 1. Pump Figure 30 Reinstallation of Shipping Materials To prevent damage while moving the unit, the shipping materials MUST be reinstalled. 1. Disconnect washer from electrical supply. 2. Remove two screws at bottom of front access panel. 3. -
Page 26: Troubleshooting
Troubleshooting Troubleshooting Try these troubleshooting tips before making a service call. They may save you time and money. Washer Symptom Possible Cause/Solution Won’t Fill • Make sure power cord is plugged all the way into the electrical outlet. • Check the laundry room fuse or circuit breaker. •... - Page 27 Troubleshooting Washer Symptom Possible Cause/Solution Water Leaks • Check that fill hoses are properly installed on the faucets and the washer’s water mix- ing valve. • Check the condition of the fill hoses. Replace fill hoses every five years. • Make sure drain receptacle is not clogged.
-
Page 28: Contact Information
Contact Information Contact Information If service is required, contact the nearest Factory Authorized Please include a copy of your bill of sale and any service receipts Service Center. you have. If you are unable to locate an authorized service center or are un- WARNING satisfied with the service performed on your unit, contact the source from which you purchased your unit. -
Page 29: Installer Checklist
Installer Checklist Installer Checklist Fast Track for Installing the Washer Position Washer Near Installation Area. Gravity Drain Models - Connect Drain Outlet to Drain System. CHECK CHECK FLW2339N_SVG1 Remove the Shipping Position and Level the Materials and Install Washer. Plugs. CHECK CHECK FLW2359N_SVG...
