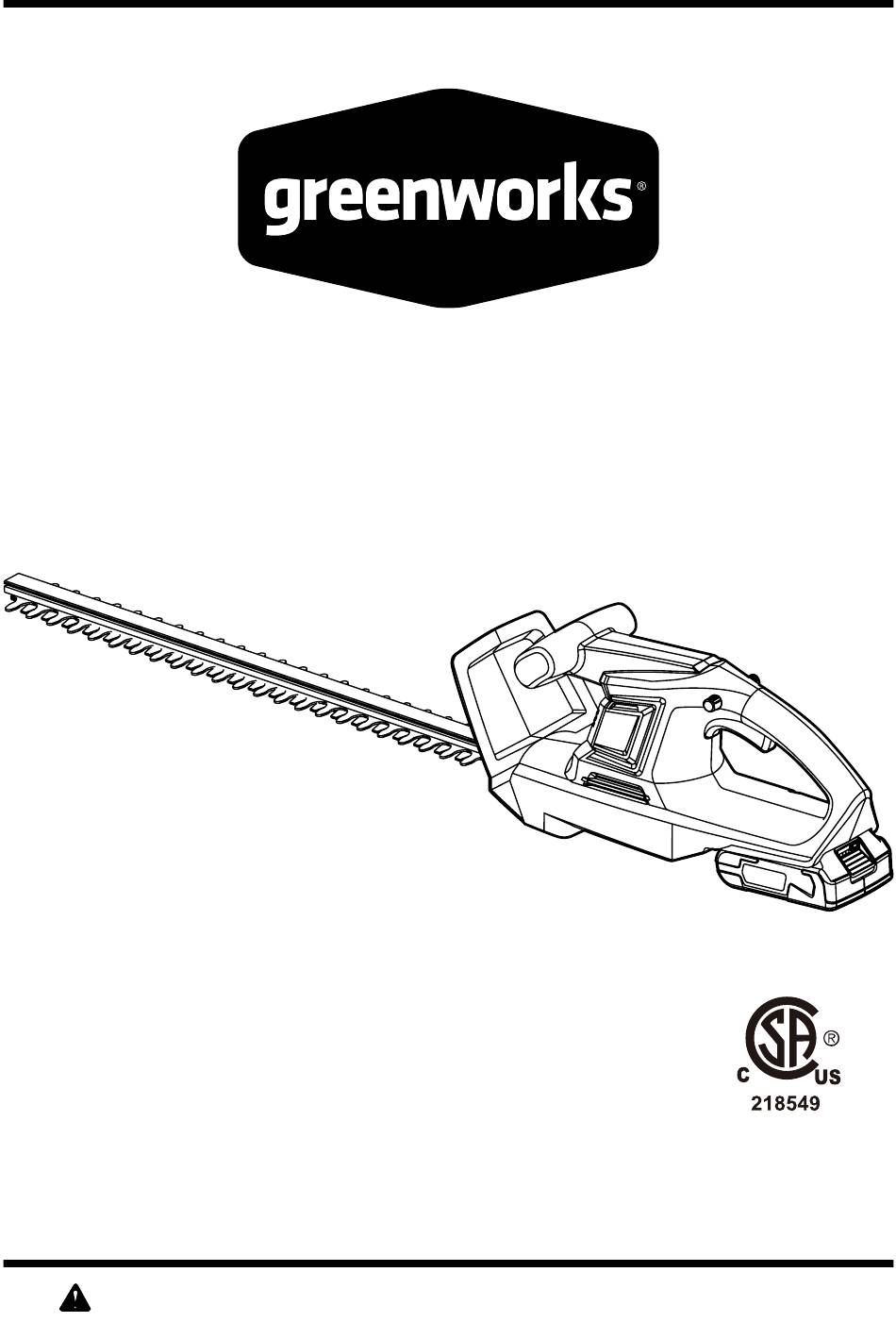

- Page 1 24V LITHIUM-ION CORDLESS HEDGE TRIMMER HT24B01 Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) www.GreenWorksTools.com Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CONTENTS Contents ..........................2 Specifications ........................2 Important Safety Instructions ....................3 Symbols ..........................6 Know Your Hedge Trimmer ....................8 Assembly ..........................9 Operation ........................... 10 Battery & Charger Maintenance ..................12 Maintenance ........................14 Environmentally Safe Battery Disposal...................15 Troubleshooting........................16 Limited Warranty ........................ -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS W A R N I N G Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury. Save all warnings and instructions for future reference. The term “power tool”... - Page 4 IMPORTANT SAFETY INSTRUCTIONS • Dress properly. Do not wear loose clothing or jewellery. Keep your hair,clothing and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. • If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 5 IMPORTANT SAFETY INSTRUCTIONS HEDGE TRIMMER SAFETY WARNINGS • Use both hands when operating the hedge trimmer. Using one hand could cause loss of control and result in serious personal injury. • Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving.
-
Page 6: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second) - Page 7 To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand completely the operator’s manual. If you do not understand the warnings and instructions in the operator’s manual, do not use this product. Call GREENWORKS customer service for assistance.
-
Page 8: Know Your Hedge Trimmer
KNOW YOUR HEDGE TRIMMER Auxiliary Handle Guard Switch Trigger Trigger Handle Blade Safety Lock Button Battery Pack Latch Blade Cover Battery Pack Fig. 1 KNOW YOUR HEDGE TRIMMER (See Figure 1.) The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. -
Page 9: Assembly
PACKING LIST Part Name Figure Cordless hedge trimmer 24V LITHIUM-ION CORDLESS HEDGE TRIMMER HT24B01 Operator's manual Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) www.GreenWorksTools.com Read all safety rules and instructions carefully before operating this tool . W A R N I N G To avoid personal injury: •... -
Page 10: Operation
OPERATION To install the battery (See Figure 2.) IMPORTANT! The battery pack (29842) is not charged when it is purchased. Before using the hedger for the first time, place the battery pack on the battery charger and charge. Make sure to read all safety precautions, and follow the instructions in the Battery &... - Page 11 OPERATION STARTING AND STOPPING HEDGE TRIMMER (See Figure 3.) The hedge trimmer has one switch control and a safety lock button used together to prevent accidental start-ups or injury. 1. Place one hand on the trigger handle (1). Place the other hand on the auxiliary handle (2). 2.
-
Page 12: Battery & Charger Maintenance
BATTERY & CHARGER MAINTENANCE CHARGING PROCEDURE NOTE: The battery is not shipped fully charged. It is recommended to fully charge before first use to ensure that maximum run time can be achieved. This lithium-ion battery will not develop a memory and may be charged at any time. 1. - Page 13 BATTERY & CHARGER MAINTENANCE CHECKING THE CHARGE If the battery pack does not charge properly: • Check the current at the power outlet with another tool. Make sure that the outlet is not turned off. • Check that the charger contacts have not been shorted by debris or foreign material. •...
-
Page 14: Maintenance
MAINTENANCE W A R N I N G To avoid risk of fire, electric shock, or electrocution: • Do not use a damp cloth or detergent on the battery or battery charger. • Always remove the battery pack before cleaning, inspecting, or performing any maintenance on the hedge trimmer. -
Page 15: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this battery pack: Lithium-Ion, a toxic material. W A R N I N G All toxic materials must be disposed of in a specified manner to prevent contamination of the environment. -
Page 16: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION To secure the battery pack, make sure Battery is not secure. the latches on the top of the battery pack snap into place. Motor fails to start when switch trigger is depressed. Charge the battery pack according to the Battery is not charged. -
Page 17: Limited Warranty
(4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for... -
Page 18: Exploded View
EXPLODED VIEW... -
Page 19: Parts List
PARTS LIST ITEM NO. PART NO. DESCRIPTION 34108648 Blade cover 341051912 Safety-lock button 33202896 Spring 311011912 Blade assembly 36101649 24V Motor 341021912A Right housing 32201459 Screw T20 32201651 Handle spring 341061912 Switch trigger 36201708-5 24V Control panel 34106978 Insert seat 36301454-3 Micro switch 341011912A... - Page 20 Greenworks Tools PO Box 1238 Mooresville, NC 28115 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 00 (07-23-16) Printed in China on 100% Recycled Paper...
