Summary of Contents for GreenWorks ELITE HT-240-T

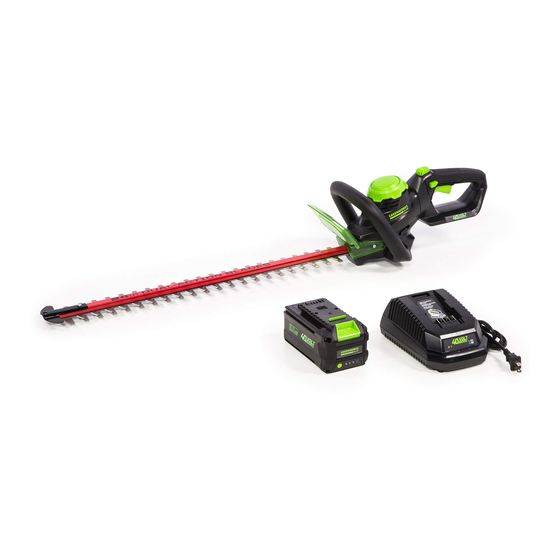

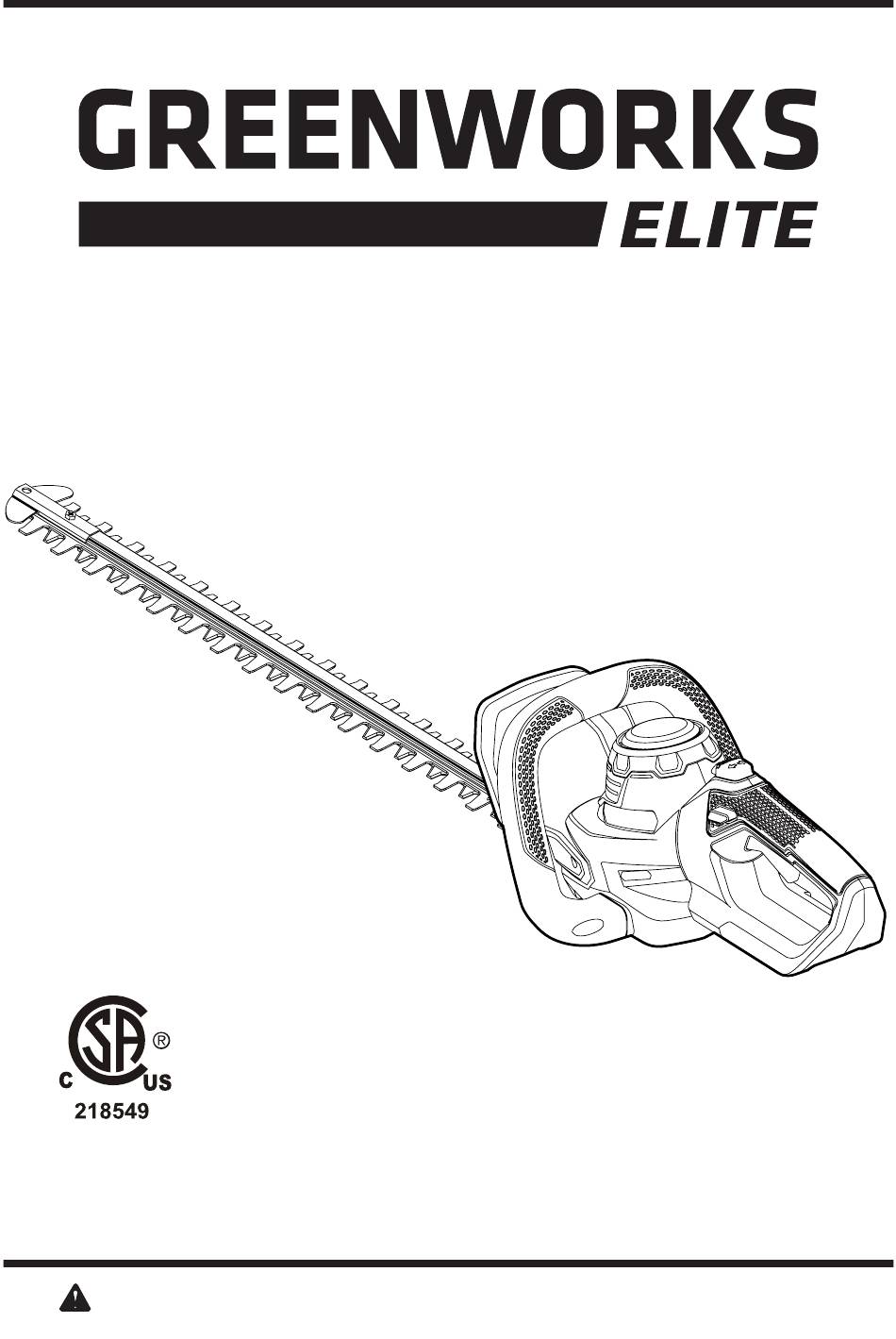

- Page 1 40V CORDLESS HEDGE TRIMMER HT-240-T Owner’s Manual TOLL-FREE HELPLINE: 1-833-493-5483 www.greenworkselite.com Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CONTENTS Contents ..........................2 Product Specifications ......................2 Important Safety Instructions ....................3 Symbols ..........................6 Know Your Hedge Trimmer ....................8 Assembly Instruction ......................9 Operation Instruction ......................1 0 Maintenance ........................1 3 Environmentally Safe Battery Disposal ................1 4 Troubleshooting ......................... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS W A R N I N G Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injuries. Save all warnings and instructions for future reference. The term “power tool”... - Page 4 If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. • Use only with Greenworks Elite batteries: L-300, L600 • Use only with Greenworks Elite Chargers: C-200, C-400...
- Page 5 IMPORTANT SAFETY INSTRUCTIONS 6. SERVICE Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. HEDGE TRIMMER SAFETY WARNINGS • Use both hands when operating the hedge trimmer. Using one hand could cause loss of control and result in serious personal injury.
-
Page 6: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaninProper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second) Watt... - Page 7 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, if not DANGER avoided, will result in death or serious injury. Indicates a potentially hazardous situation, which, if not WARNING avoided, could result in death or serious injury.
-
Page 8: Know Your Hedge Trimmer
KNOW YOUR HEDGE TRIMMER Auxiliary Blade Handle Guard Rotating Handle Release Rear Handle Safety Lock Trigger Button FIG.1 KNOW YOUR HEDGE TRIMMER (See Figure 1.) The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attemptinBefore use of this product, familiarize yourself with all operating features and safety rules. -
Page 9: Assembly Instruction
ASSEMBLY INSTRUCTION UNPACKING • This product requires no assembly. • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. • Inspect the product carefully to make sure no breakage or damage occurred during shipping. •... -
Page 10: Operation Instruction
FIG.2 IMPORTANT! DO NOT remove the blade assembly unless it needs sharpening, straightening, or replacing. Take it to Greenworks Elite authorize repair centre. W A R N I N G Follow these instructions in order to avoid injury and to reduce the risk of electric shock or fire: •... - Page 11 OPERATION INSTRUCTION STARTING AND STOPPING HEDGE TRIMMER (See Figure 3.) 1. Ensure the battery is properly installed in the hedge trimmer. 2. Slide the safety lock button (1) into the handle and hold. 3. Squeeze the trigger (2). The hedge trimmer will turn ON. 4.
- Page 12 OPERATION INSTRUCTION USING THE ROTATING REAR HANDLE (See Figure 4.) 1. Place the hedge trimmer on a flat and even surface. 2. Make sure that you released the trigger. 3. Press the rotating handle release and begin turning the rear handle. Release the rotation lever and turn the handle 90 degrees to either side until it clicks into place and the lever locks in.
-
Page 13: Maintenance
MAINTENANCE W A R N I N G To avoid risk of fire, electric shock, or electrocution: • Do not use a damp cloth or detergent on the battery or battery charger. • Always remove the battery pack before cleaning, inspecting, or performing any maintenance on the hedge trimmer. -
Page 14: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this hedge trimmer battery pack: Lithium-Ion, a toxic material. W A R N I N G All toxic materials must be disposed of in a specified manner to prevent contamination of the environment. -
Page 15: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION To secure the battery pack, make sure Battery is not secure. the latches on the top of the battery Motor fails to start pack snap into place. when trigger is Charge the battery pack according depressed. -
Page 16: Limited Warranty
(4) years against defects in materials, parts or workmanship. GREENWORKS ELITE, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for... -
Page 17: Exploded View
EXPLODED VIEW... -
Page 18: Parts List
PARTS LIST PART NO. DESCRIPTION RA362012229V3 KIT, PCB ASSEMBLY RA341022229V3 KIT, SAFETY LOCK BUTTON ASSEMBLY RA341012229V3 KIT, TRIGGER SWITCH ASSEMBLY RA341052229V3 KIT, SPIN BUTTON ASSEMBLY RA341062221V1 KIT, GUARD ASSEMBLY RA341072229V3 KIT, HANDLE ASSEMBLY RA341032229V3 KIT, HOUSING ASSEMBLY RA341102229 KIT, AUXILIARY HANDLE ASSEMBLY 34110648-1 KIT, SCABBARD RA341092229... - Page 19 Greenworks Tools PO Box 1238 Mooresville, NC 28115 TOLL-FREE HELPLINE: 1-833-493-5483 Rev: 00 (07-07-17)
