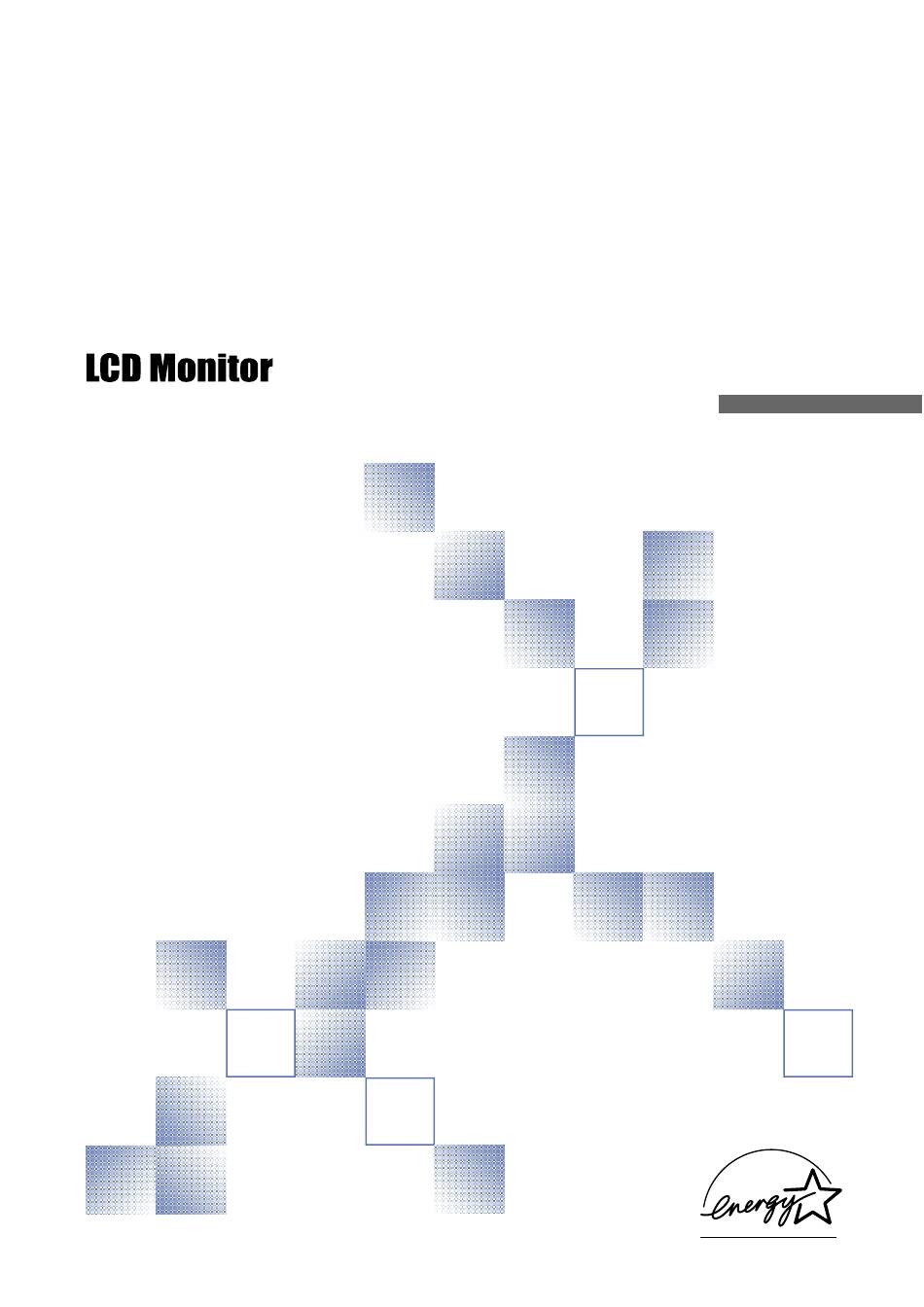

CHROMAMAXX 21CSY
ENGLISH
Thank you very much for choosing the Ampronix
CHROMAMAXX LCD monitor .
We recommend that you take a few minutes to
read carefully through this brief but
comprehensive manual before installing and
switching on the monitor. Please keep this
manual in a safe place for your future
reference.
Advertisement
Table of Contents
Related Manuals for Iiyama CHROMAMAXX 21CSY
Summary of Contents for Iiyama CHROMAMAXX 21CSY
- Page 1 CHROMAMAXX 21CSY ENGLISH Thank you very much for choosing the Ampronix CHROMAMAXX LCD monitor . We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a safe place for your future reference.
- Page 2 Congratulations! The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.
- Page 3 Congratulations! You have just purchased a TCO’99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
- Page 4 Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances.
- Page 5 FCC DECLARATION OF CONFORMITY Model Number: CHROMAMAXX 21CSY Trade Name: AMPRONIX Responsible party: AMPRONIX, Inc. Address: 8697 Research Drive, Irvine California 92618 U.S.A. Telephone number: 949-788-9930 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 6: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS ..............1 SPECIAL NOTES ON LCD MONITORS ..........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES ..................4 CHECKING THE CONTENTS OF THE PACKAGE ......5 CONTROLS AND CONNECTORS ............ -
Page 7: For Your Safety
FOR YOUR SAFETY SAFETY PRECAUTIONS WARNING STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or service center immediately. Further use may be dangerous and can cause fire or electric shock. - Page 8 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 9: Special Notes On Lcd Monitors
SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitors and do not indicate a problem. When you first turn on the LCD monitor, the picture may not fit in the display area NOTE because of the type of computer that is used. In this case, adjust the picture position to the correct position. -
Page 10: Before You Operate The Monitor
BEFORE YOU OPERATE THE MONITOR The monitor functions as a hub when connected to a USB compliant computer and USB peripherals. However, with older operating systems and/or BIOS settings in your computer, the USB hub may not operate. In this case, please contact your computer dealer first for advice. Please stand the monitor and then remove the stopper pin on the back of the stand slowly while pushing top face of the stand before you install the... -
Page 11: Checking The Contents Of The Package
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local dealer or regional office. Power cord, DVI-D TO DVI-D CABLE, VGA TO DVI-A CABLE Cable Cover n Sample: Pivot ®... -
Page 12: Controls And Connectors
CONTROLS AND CONNECTORS <Front> <Back> A Power Indicator Green: Normal operatio NOTE Blue: Normal operation Orange: Power Management The monitor enters into power management mode which reduces the power consumption to less than 4W when receiving no horizontal and/or vertical sync signal. -
Page 13: Connecting Your Monitor
CONNECTING YOUR MONITOR A Ensure that both the computer and the monitor are switched off. B Connect the computer to the monitor with the signal cable. (See page 26 for CONNECTOR PIN ASSIGNMENT.) E Connect the Power Cable to the monitor first and then to the power supply. n The signal cables used for connecting the computer and monitor vary by the type of computer NOTE used. -
Page 14: Computer Setting
[Cable Wiring] A Collect cables at the back of the stand. B Place the cover by inserting the tabs into guide holes and then sliding the cover downward. COMPUTER SETTING n Signal Timing Change to the desired signal timing listed on page 25: COMPLIANT TIMING. n Windows 95/98/2000/Me/XP Plug &... - Page 15 BEFORE YOU OPERATE THE MONITOR...
-
Page 16: Adjusting The Height And The Viewing Angle
ADJUSTING THE HEIGHT AND THE VIEWING ANGLE n For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s height and angle to your own preference. n Hold the panel so that the monitor does not topple when you change the monitor’s height or angle. -
Page 17: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 25. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 20 for SCREEN ADJUSTMENTS. Press the Menu Button to start the On Screen Display feature. -
Page 18: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Direct You can skip the Menu pages and display an adjustment scale directly by using the following button operations. l Brightness: Press the Brightness (+) Button when the Menu is not displayed. l Contrast: Press the Contrast (–) Button when the Menu is not displayed. l Auto Set-up: Press the Auto Set-up Button. - Page 19 Analog Input Menu : 1 M e n u : 1 (Analog) 1600 × 1200 H : 7 5 K H z V : 6 0 H z Adjustment Item Problem / Option Button to Press Too dark Direct Brightness * Too bright Too dull Direct...
- Page 20 Menu : 2 Menu:2 (Analog) 1600 × 1200 H : 7 5 K H z V : 6 0 H z Adjustment Item Problem / Option Button to Press 9300K Bluish white (Approx. 9300K) Color Temp. 6500K Reddish white (Approx. 6500K) Too weak Green User...
- Page 21 Menu : 3 Menu:3 (Analog) 1600 × 1200 H : 7 5 K H z V : 6 0 H z Problem / Option Button to Press Adjustment Item OSD Position 1 2 3 4 5 You can move the OSD display area to any one of the following 5 positions within the overall display: Press the + Button to move the OSD in numerical order.
- Page 22 Menu : 4 M e n u : 4 (Analog) 1600 × 1200 H : 7 5 K H z V : 6 0 H z Problem / Option Button to Press Adjustment Item IN 1 Select the Input1 input. Signal Select IN 2 Select the Input2 input.
- Page 23 Digital Input Menu : 1 M e n u : 1 (Digital) 1600 × 1200 H : 7 5 K H z V : 6 0 H z Adjustment Item Problem / Option Button to Press Brightness * Too dark Direct Too bright Contrast...
- Page 24 Menu : 2 Menu:2 (Digital) 1600 × 1200 H : 7 5 K H z V : 6 0 H z Problem / Option Button to Press Adjustment Item OSD Position 1 2 3 4 5 You can move the OSD display area to any one of the following 5 positions within the overall display: Press the + Button to move the OSD in numerical order.
- Page 25 Menu : 3 M e n u : 3 (Digital) 1600 × 1200 H : 7 5 K H z V : 6 0 H z Problem / Option Button to Press Adjustment Item IN 1 Select the Input1 input. Signal Select IN 2 Select the Input2 input.
-
Page 26: Screen Adjustments
SCREEN ADJUSTMENTS n The screen adjustments described in this manual are designed to set image position and minimize flicker or blur for the particular computer in use. n The monitor is designed to provide the best performance at resolution of 1600 × 1200, but can not provide the best at resolutions of less than 1600 ×... - Page 27 C Press the Auto Set-up Button. D Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Set-up. E Stretch the right side of the picture frame to the right edge of the display area by adjusting the Clock.
-
Page 28: Power Management Feature
H Select “Brightness” in the Adjustment Program and adjust the Brightness and Contrast so that all 16 levels of gray in the grayscale pattern are visible. Click on “FINISH” to close the Adjustment Program. POWER MANAGEMENT FEATURE The power management feature of this product complies with every power saving requirement of ®... -
Page 30: Specifications
APPENDIX A SPECIFICATIONS LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 54cm / 21.3" Pixel pitch 0.27mm H × 0.27mm V Brightness 280cd/m (Typical) Contrast ratio 500 : 1 (Typical) Viewable angle Right / Left / Up / Down: 85 degrees each (Typical) Response time 20ms (Black, white, black) Display Colors... -
Page 31: Compliant Timing
Menu : 4 M e n u : 4 (Video) H : 1 5 . 7 K H z V : 6 0 H z NTSC Problem / Option Button to Press Adjustment Item IN 1 Select the Input1 input. Signal Select IN 2 Select the Input2 input. -
Page 32: Connector Pin Assignment
The Menu:P-in-P is available only on Analog Input and Digital Input when the optional video adapter is installed in the monitor. Menu : P-in-P* Menu:P-in-P (P-in-P) H : 1 5 . 7 K H z V : 6 0 H z NTSC Adjustment Item Problem / Option... - Page 33 POWER MANAGEMENT FEATURE The monitor can provide the POWER MANAGEMENT feature while the video input is available by using the video adapter. When the signal from the video equipment is off, the monitor enters into Power Management Mode which reduces the power consumption to less than 4W and the power indicator turns to orange. From Power Management Mode, the image reappears in several seconds when the signal is input from the video equipment.
