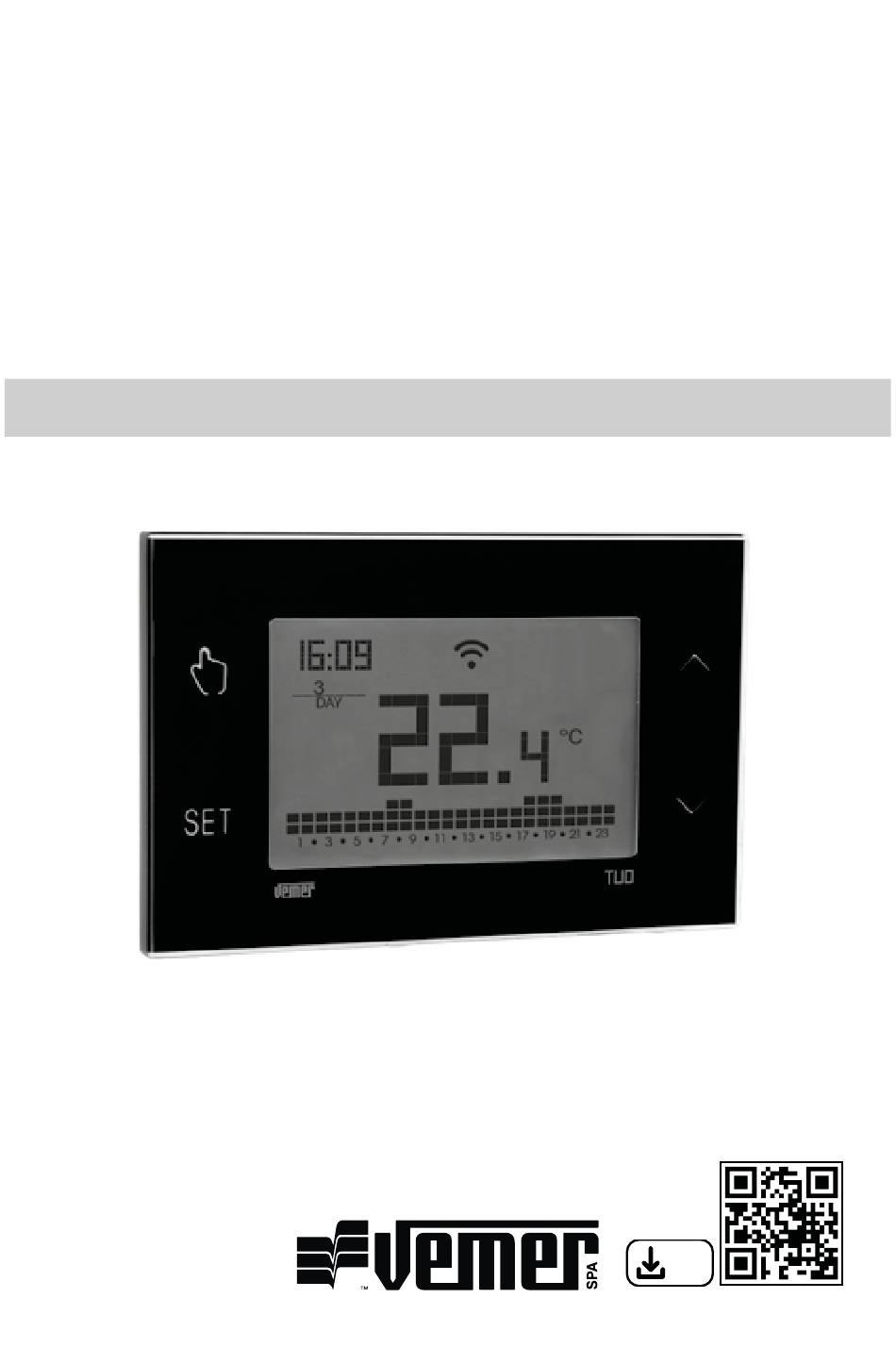

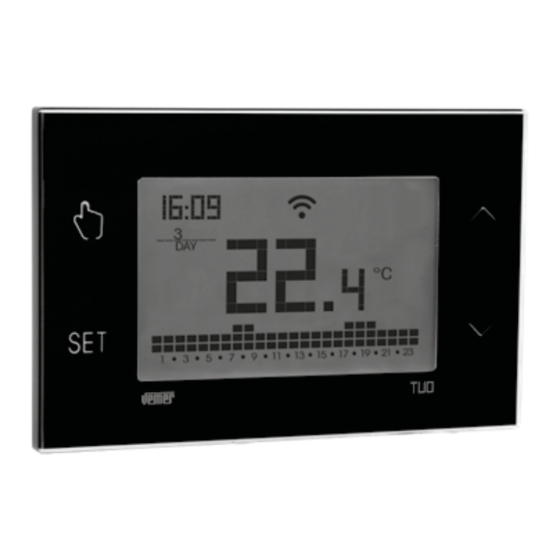

- Page 1 Cronotermostato Digitale TUO WI-FI BATTERIA Manuale d’Uso User Manual DIGITAL CHRONOTHERMOSTAT...
- Page 3 Index Safety warnings Page Important usage notes Page Dimensions Page Connection diagram Page Device description Page Device installation and configuration Page App description Page Operating mode Page Configuration menu description Page CLOCK menu - Date and time settings Page PROG menu - Programs setting Page SET menu - Temperatures T1, T2, T3 setting Page...
-
Page 4: Safety Warnings
(heating mode) or on the control circuit of the air conditioner (air conditioning mode) in order to guarantee maintenance of the desired temperature. Thanks to the Vemer Cloud service, you can access your device from anywhere in the world through the internet connection. Just connect the device to the home router and install the “Clima Wi-Fi”app, which can be downloaded from the iOS and Android... -
Page 5: Important Usage Notes
The “energy saving" function is useful for extending the life of the batteries because it allows you to set the frequency with which the device connects to the Vemer Cloud to download any programming updates. The basic setting (factory configuration) requires the device to log in to the Cloud: •... - Page 6 DIMENSIONS CONNECTION DIAGRAM - 44 - Tuo Wi-Fi Batteria Chronothermostat User Manual...
-
Page 7: Device Description
Local active operation. In this status the device is disconnected from the Cloud Vemer and any change in operation must be made using the keys on the chronothermostat. Local operation can be disabled only by the app (see page 54) - Page 8 Preliminary operations If you intend to use the device by remote control, before proceeding with the installation and configuration make sure you have a Vemer account available. To create a Vemer account, proceed as follows: 1.
- Page 9 Installing the device. To install the device proceed as follows: 1. press the retaining hook on the underside to disconnect the display from the base 2. unscrew the terminal block cover (A) 3. pass the wires for connection to the boiler (or air conditioner) through the hole in the base and fix the latter to the wall (or to cover the 3-module recessed box) using the supplied screws (B) and connect the relay to the boiler or air conditioner control circuit...
- Page 10 Device configuration with remote control (for Android) To configure the device after the first power up or after a factory reset using an Android smartphone, proceed as follows: 1. While the screen shown is displayed in the figure on the side, press the keys to choose to confirm NET ON and press the key...
- Page 11 Device configuration with remote control (for iOS) To configure the device after the first power up or after a factory reset using an iPhone proceed as follows: 1. While the screen shown is displayed in the figure on the side, press the keys to choose to confirm NET ON and press the key...
- Page 12 Device configuration without remote control To use the device as a normal weekly chronothermostat with batteries (without Wi-Fi connection), proceed as follows: 1. When the screen shown in the figure on the side is displayed, press the keys to choose to confirm (a lack of NET OFF and press the key choice within 30 seconds is equivalent to choosing...
-
Page 13: App Description
APP DESCRIPTION Thanks to the app you can control your device remotely, easily and intuitively. Page “Devices list” identifies a device or created group allows you to record a new device allows you to group several devices Main page This screen shows the "TUO Wi-Fi Batteria" status: indicates the measured temperature (25.0°C), the operating mode (Heating), the system status:... - Page 14 "Programs List" page From the “Program List” screen, it is possible to: to create a new program to select, to modify, to delete or to rename an existing program Note: the padlock to the left of the name WINTER DEFAULT indicates that the program can not be modified or canceled Modify a program To modify an existing program, select the profile program of the day to be modified.
- Page 15 Configuration menu Touch the symbol on the upper right to access the advanced configuration. on the upper right to ac NOTE: the chronothermostat is compatible with Google Home and Amazon Echo. By the association with Google or Amazon account is possible to interact with the device by giving voice commands by speaking to the Voice Assistant via the voice activated speaker.
- Page 16 Set a holiday period Set vacation days in which the regulation is turned off by selecting them on the calendar. During the holiday period the operation filed shows VAC Advanced settings enter the user email who will receive the alarm set temperature thresholds, low battery warning and delay to activate the alarm ...
- Page 17 Local operation is indicated both on the device display by the icon and on the app. Local operation can be stoped and/or disabled at any time from the app (but not from the device). If local operation is disabled (useful if you want to have control of the device only from the app), the icon will appear on the display and when you try to access the configuration menu using the device keyboard, will not be possible to make...
-
Page 18: Operating Mode
OPERATING MODE The device can operate according to the following 3 modes: Automatic mode It allows you to use the device as a chronothermostat and the temperature regulation follows the "profile" of the program set program. profile The program profile assigns one of the 3 temperatures T1, T2 or T3 to each hour of the day. - Page 19 To switch from automatic to manual operation Automatic Manual operation Tm operation operation To switch from manual to automatic operation Manual Automatic Tm operation operation operation To switch from automatic operation (or manual) to the one switched off and viceversa Automatic operation operation...
-
Page 20: Configuration Menu Description
CONFIGURATION MENU DESCRIPTION The CLOCK menu allows you to set date and time. It also allows the configuration of the daylight saving time change. The PROG menu allows you to change the programming of the automatic operating mode. The SET menu allows you to modify of the values of the 3 temperatures of the automatic operation (T1, T2, T3). - Page 21 CLOCK MENU - DATE AND TIME SETTING When connected to the Wi-Fi network, the device acquires the date and time settings from the server and no settings are required. If instead the device is not connected to the Wi-Fi network, proceed as follows: Initial screen Configuration menu Set the seconds...
- Page 22 Configuration of the summer / winter time change You can configure the device to independently manage the summer time update. The factory setting includes: • the passage winter time summer time (+1h) the last Sunday of March at 2:00 o'clock •...
- Page 23 PROG MENU - PROGRAMS SETTINGS Access the PROG menu to change the programming of the automatic operation. The factory setting includes: • the P1 program from Monday to Friday • the P2 program on Saturday and Sunday If this program is not suitable for your needs, you can: •...
- Page 24 How to customize the profile of a Px program Choose the Choose the temperature Choose the temperature PX program for the selected time for the next hour • starting from midnight 00:00, press the keys to assign to each hour of the day one of the 3 possible temperatures (T1, T2, T3) and the key to confirm and go to the next hour.
- Page 25 SET MENU - TEMPERATURES T1, T2, T3 SETTING Access the SET menu to change the values of the 3 temperatures used in automatic operation. The factory setting includes: • T1 = 5°C, T2 = 15°C, T3 = 18°C (heating/winter operation ) •...
- Page 26 TIMER MENU - TIMING SETTING Set a timing to prolong the current operation for the duration of the timing itself. There are 3 timings available: • Timed manual: set a time delay during manual operation to maintain this operation until timing has elapsed. At the end of the timing, the device activates the automatic operation.
- Page 27 ADV MENU - ADVANCED PARAMETERS SETTING x4 times Initial screen Configuration menu ADV menu In the ADV menu, the parameters related to the advanced configuration of the device are proposed in sequence. Press: • the keys to change the value of the selected parameter •...
- Page 28 Type of regulation (active only with heating operating mode) Setting up: • to choose on/off regulation. • to choose proportional regulation. Factory value: (on/off). Note: the on/off regulation is suitable for most home situations. Therefore it is advisable to modify this parameter only in case of real need. For more information on the characteristics of the on/off and proportional regulation logic, see "Regulation types"...
- Page 29 Antifreeze temperature (active only with heating operating mode) The antifreeze temperature avoids the risk of freezing of the system when on the chronothermostat is set the off operation Allowed values: (excluded), 1°C ÷ 50°C . Factory value: 6 °C. Note: the " "...
- Page 30 Check that the Wi-Fi network guarantees internet access - CLd : failure to connect to the Vemer Cloud. The problem resolves itself once the connection between the Vemer Cloud and the device is restored. If this condition persists for more than 24 hours, do not carry out any operation and contact Vemer assistance.
- Page 31 WiFi menu (active only with remote control enabled) The signal strength ( ) and the MAC address ( ) are information visible only when the modem is turned on (NET = ON). To switch between display, press the keys • The signal strength indicates the quality of the connection with the access point.
- Page 32 Minimum/Maximum settable temperature Under particular installation conditions, for example in public buildings, hotels, etc., it may be useful to limit the range of values that the temperatures T1 / T2 / T3 and Tm can assume, in order to prevent incorrect settings by the user. •...
- Page 33 Operating hour meter It displays the operating hours of the system (relay contacts on C-NA). The device has two counters (5-digit) independent for heating operation and for the conditioning operation, but is displayed only the counter of the selected operation mode. To reset the counter, keep the key pressed for a long time during the display.
- Page 34 OTHER FUNCTIONS OF THE DEVICE Display of minimum/maximum daily temperature The device stores the maximum and minimum values of the temperature measured during the day. Maximum values Maximum values Initial screen display resetting Minimum values Minimum values Initial screen display resetting Keypad unlock When the key lock is active, the device adjusts the temperature using the set...
-
Page 35: Device Reset
DEVICE RESET Perform a reset to delete the settings entered and restore the device to the factory values (excluding the network settings for remote control which can be changed as described on pages 48-49). To reset: 1. from the initial screen, press and hold the key to enter the configuration menu. - Page 36 REGULATION TYPES On/off regulation With the on/off regulation, the device activates the heating (air conditioner) until the measured temperature is lower (higher) than the set one. In order to avoid the oscillation straddling the set temperature which would cause the system to switch on and off continuously, a differential (or hysteresis) is introduced.
- Page 37 HOW TO DO IN CASE OF REPLACEMENT OF THE ACCESS POINT In case of replacement of the router/access point of the home network, it is necessary to connect the device to the new wi-fi network. Proceed as follows: 1. On Tuo Wi-Fi Batteria: a.
-
Page 38: Technical Characteristics
TECHNICAL CHARACTERISTICS • Power supply: 4 1.5V alkaline batteries (type AA) • Battery life: up to 36 months thanks to the energy saving function • Output: bistable relay with changeover contact 5A / 250V AC • Weekly programming with 3 settable temperatures: T1, T2, T3 •... -
Page 39: Disposal Of Batteries
EN 60730-2-7, EN 60730-2-9, ETSI EN 300 328, ETSI EN 301 489-1, ETSI EN 301 489-17 The full text of the EU Conformity Declaration is available at www.vemer.it address. information to users pursuant to art. 14 of the directive 2012/19 / EU of the european parliament and of the council... -
Page 40: Winter Programs
WINTER PROGRAMS 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23... -
Page 41: Summer Programs
SUMMER PROGRAMS 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23... - Page 42 Vemer S.p.A. I - 32032 Feltre (BL) Via Camp Lonc, 16 e-mail: info@vemer.it - web site: www.vemer.it 04-2023...
