Genuine part number :
Applicable model :
- This manual describes how to install and handle the STI Front Under Spoiler.
- Read this manual carefully before work and make sure to install it correctly.
△
Precautions
！
- Install the STI Front Under Spoiler by reading the Installation Manual carefully.
- Handle the STI Front Under Spoiler with care and do not let it fall.
- Do not install or use this product in any way other than described in this manual.
- We do not assume any responsibility for any trouble arising from failure to comply with the
instructions in this manual.
- Double-sided tape is used to attach the STI Front Under Spoiler.
Attach it with care as once it is attached, it is extremely difficult to remove.

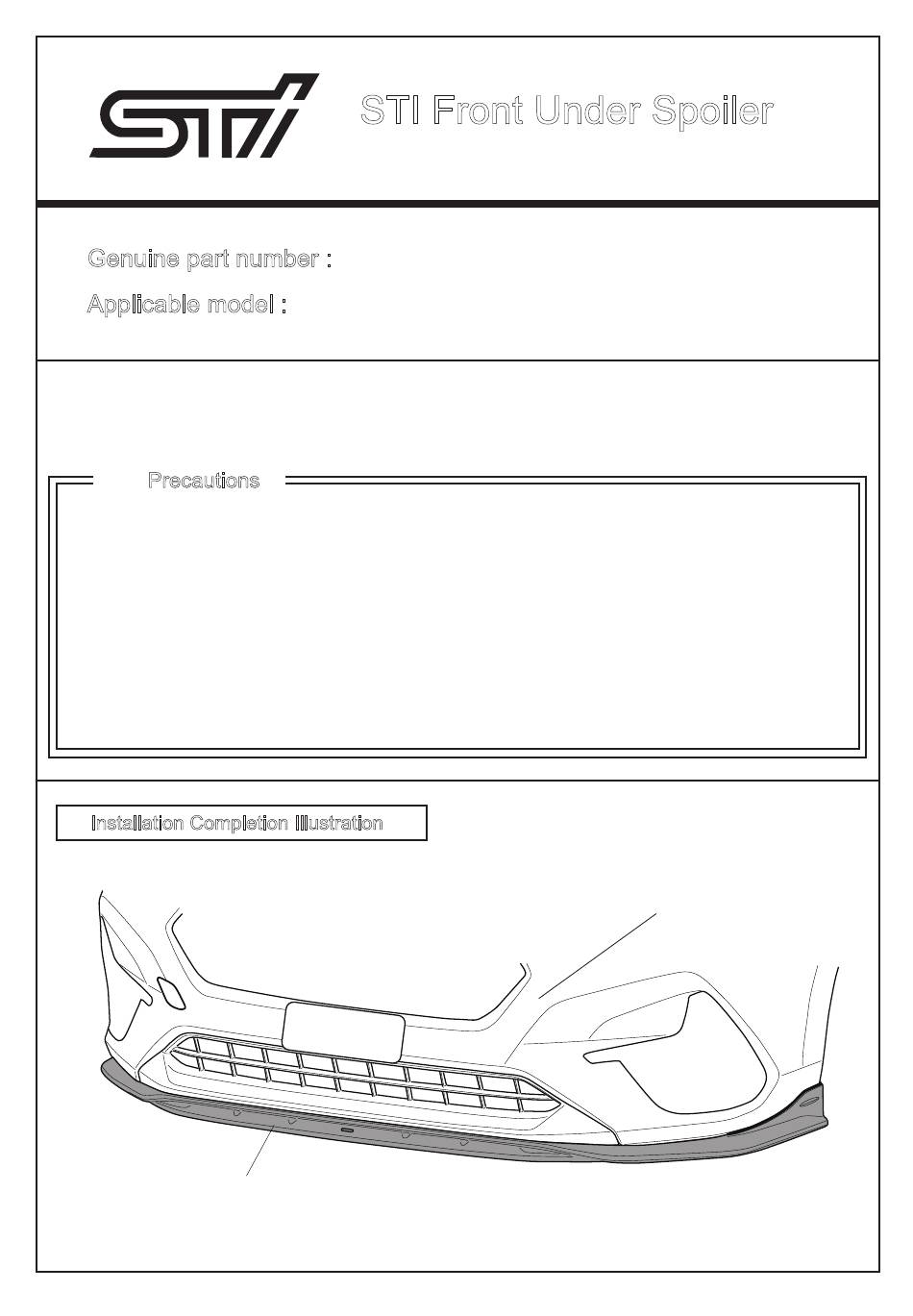

Installation Completion Illustration
① STI Front Under Spoiler
STI Front Under Spoiler
E2410FN000/010
ＩＭＰＲＥＺＡ（ＧＵ）,ＴＹＰＥ Ａ～
-1-
Installation Manual
Front bumper
△00
Advertisement
Related Manuals for STI E2410FN000/010
Summary of Contents for STI E2410FN000/010
- Page 1 - Install the STI Front Under Spoiler by reading the Installation Manual carefully. - Handle the STI Front Under Spoiler with care and do not let it fall. - Do not install or use this product in any way other than described in this manual.
- Page 2 Components - Make sure to check the components below before installation. ① Part Name STI Front Under Spoiler ① Clip(Large) ② Clip(Medium) ③ ② ③ ④ ⑤ Clip(Small) ④ Washer(t1.0) ⑤ Wellnut ⑥ Bolt ⑦ ⑥ ⑦ ⑧ Pattern paper (P8～P12) ⑧...
-
Page 3: Installation Procedure
Installation procedure 1. Drill holes in the Front Bumper ( The RH also performs the same work. ) １ Front bumper (1) Remove the vehicle clips on the bottom of the Front bumper (2 places on one side) and the vehicle clips on the wheel arch surface (1 place on one side) shown in Fig 1. - Page 4 (3) As shown in Fig 3, determine the position of the ３ hole punching template B on the lower surface ＜ Detail view a ＞ Match the shape of the front bumper, fix it with masking tape, etc., Bottom view LH and mark the center of the hole with a marking of the bumper needle.
- Page 5 Do not remove the release paper more than necessary. The double-sided tape clings to the peripheral parts, which makes it difficult to position them. (2) As shown in Fig 8, align the ① STI front under ８ spoiler with the front bumper, and secure it with Ⅰ...
- Page 6 (3) As shown in Fig. 9, secure the fastening hole on ９ the wheel arch surface with the ③ Clip (Medium) and the 6mm hole with the ④ Clip (Small). ③ Clip (Medium) (2 places each for LH and RH, 4 places in total) (1 place in the center) ④...
- Page 7 ① STI Front Under the normal position. Spoiler (7) Fully tighten the ⑦ Bolt on the bottom surface of the ① STI Front Under Spoiler with a Phillips screwdriver. (4 places each for LH and RH, 8 places in total) ！ Advice Reference tightening torque 1.0N・m...
-
Page 8: Front Under Spoiler
！ Advice ⑧ Pattern paper ・If you print, there is a possibility of scale is not a 1/1. ・Use after copying so that the scale is 1/1. Cut on the outside of the line. R END R END FRONT UNDER SPOILER Ａ... - Page 9 ！ Advice ⑧ Pattern paper ・If you print, there is a possibility of scale is not a 1/1. ・Use after copying so that the scale is 1/1. Cut on the outside of the line.
- Page 10 ！ Advice ⑧ Pattern paper ・If you print, there is a possibility of scale is not a 1/1. ・Use after copying so that the scale is 1/1. Cut on the outside of the line. -10-...
- Page 11 ！ Advice ⑧ Pattern paper ・If you print, there is a possibility of scale is not a 1/1. ・Use after copying so that the scale is 1/1. Cut on the outside of the line. FRONT UNDER SPOILER Ｄ－ＲＨ R END FRONT UNDER SPOILER Ｄ－ＬＨ...
- Page 12 ！ Advice ⑧ Pattern paper ・If you print, there is a possibility of scale is not a 1/1. ・Use after copying so that the scale is 1/1. Cut on the outside of the line. FRONT UNDER SPOILER FRONT UNDER SPOILER Ｅ－ＲＨ...
