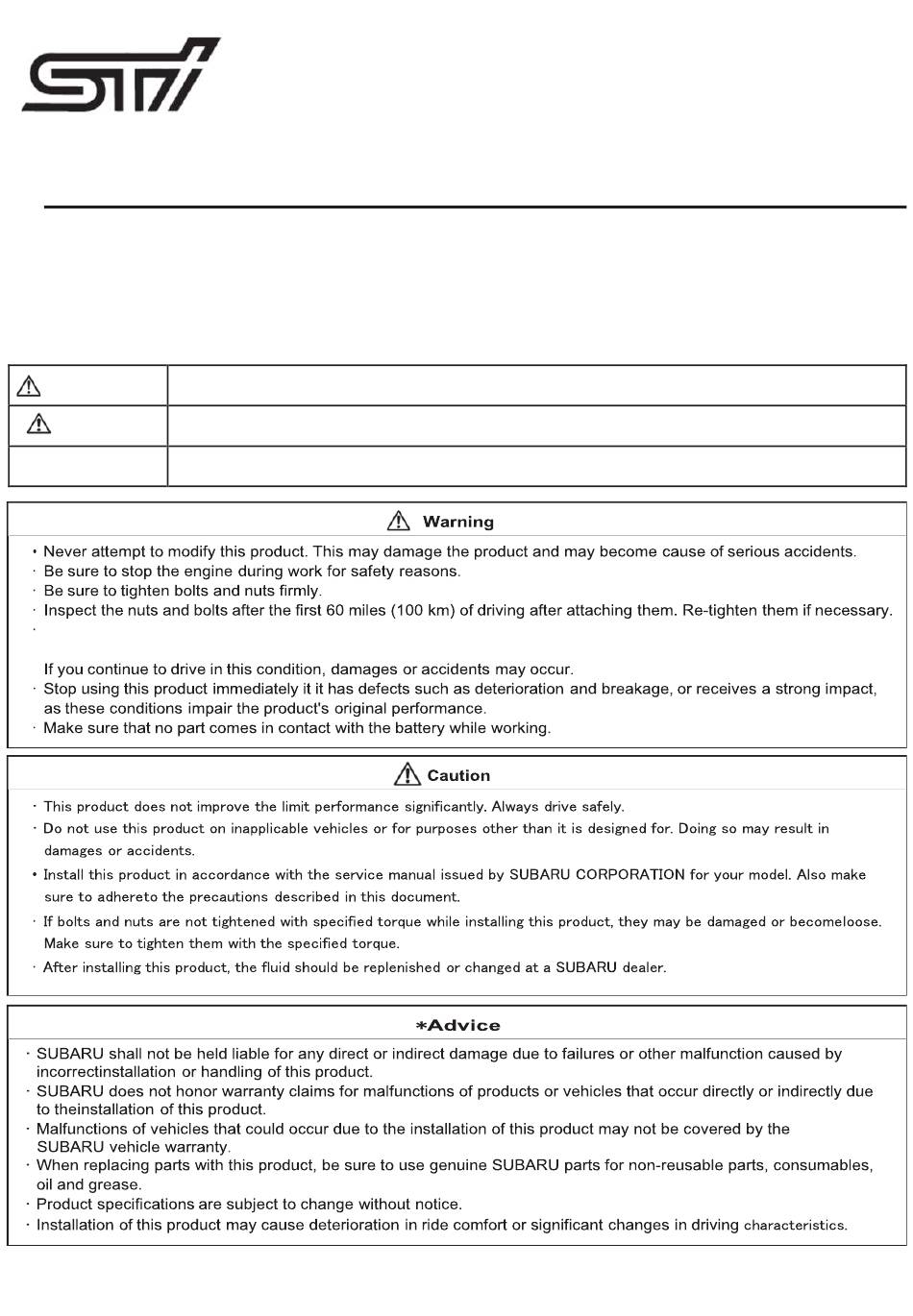

Installation and Operations instructions for Guard Draw Stifner R
• Thank you for purchasing this product.
• This manual provides installation and handling instructions for this product, and precautions to be observed.
• Before using this product, be sure to read "Safety Precautions" and use the product properly.
• Keep this manual in a safe place, such as the glove box, and refer to it whenever necessary.
Important precautions are indicated with the following marks. Be sure to observe those
Warning
Caution
*
Advice
If abnormal noise or vibration occurs while
re-tighten the attaching bolts. If abnormalities
Precautions that you must observe for your
[Failure to observe these precautions may result in death or serious injury.]
Precautions that you must observe for your safety and for your vehicle.
[Failure to observe these precautions may result in damages or accidents.]
Information that you should familiarize yourself
Information that are useful.
driving,
safety.
with.
pull over the car immediately to a safe place, and then inspect and
persist,
perform inspection and make necessary repairs immediately.
1
Part Number：SG920VA030
Production Date: September,2021
precautions.
△0
Advertisement
Related Manuals for STI Guard Draw Stifner R
Summary of Contents for STI Guard Draw Stifner R
- Page 1 Part Number：SG920VA030 Production Date: September,2021 △0 Installation and Operations instructions for Guard Draw Stifner R • Thank you for purchasing this product. • This manual provides installation and handling instructions for this product, and precautions to be observed. • Before using this product, be sure to read "Safety Precautions" and use the product properly.
- Page 2 Installation Procedures 1. Part Number and Applicable Model Part Number Part Name Applicable Car Model WRX STI TYPE A ～ STI R GUARD BAR SG920VA030 WRX TYPE A ～ 2. Components Guard Bar Flexible Draw Stiffener Rear ① １ Pop nuts ②...
- Page 3 3. Specification This product protects the Flexible Draw Stiffener Rear from damage during goods loading and emergency braking Precautions During Installation And disconnect the negative terminal of the battery before you start working on installation of the product. Caution The contents of this manual is designed for automobile mechanics or those who have basic ·...
- Page 4 A: Introduction 1) Prepare the following items. ・φ5 drill ・φ16 hole saw ・Center punch and hammer ・Masking tape ・Protection materials for trunk (for example, protection sheet and tape) ・Flexible magnetic catch B: Preparation for Processing 1) Disconnect the negative terminal of the battery. For models with a battery sensor, disconnect the ground terminal from the battery sensor.
- Page 5 3) Positioning of the pattern Push the pop nuts through the φ16 holes on the pattern and position them into the 2 φ16 holes on the underside of the rear bulkhead. （The figure below is an example of the left-hand side.） φ16 Hole on the Underside of the Rear Bulkhead Pattern UPPER...
- Page 6 D: Processing of Vehicle Body 1) Positioning for drilling Mark the center punch in the center of the cross-shaped cutout in the pattern. (2 locations, left and right. The figure below is an example of the left side.) Once you have finished marking the center punches, remove the pattern and pop nuts once.
- Page 7 E: Installation 1) Push pop nuts into the 2 holes made in the previous steps at the rear side of the rear bulkhead. （The figure below is an example of the right side.） 2) Insert the bolts into the 2 holes on the underside of the guard bar and temporarily assemble them with the pop nuts.
- Page 8 2. Temporarily fasten the 2 bolts on the rear side of the rear bulkhead. 3. Temporarily fasten the 2 bolts on the underside of the rear bulkhead. 4. Retighten the 4 bolts temporarily fastened in Steps 2 and 3 a little at a time each, and finally fasten all 4 bolts with 5 Nm.
- Page 9 To customers Handling Precautions Warning ･If abnormal noise or vibration occurs while driving, pull over the car immediately to a safe place, and then inspect and re-tighten the attaching bolts. If abnormalities persist, perform inspection and make necessary repairs immediately. If you continue to drive in this condition, damages or accidents may occur.
- Page 10 Part Number：SG920VA040 Production Date: September,2021 △0 Installation and Operations instructions for LATERAL LINK SET • Thank you for purchasing this product. • This manual provides installation and handling instructions for this product, and precautions to be observed. • Before using this product, be sure to read "Safety Precautions" and use the product properly. •...
- Page 11 1. Part Number and Applicable Model Part number Part Name Applicable Model STI A TYPE~ SG920VA040 STI LATERAL LINK SET STI Limited A TYPE~ 2. Components Lateral link set Front (RH/LH) each 1 Lateral link set Rear (RH/LH) each 1 Washer A (Outer Diameter Φ22, Inner Diameter Φ14)
- Page 12 ６ ..Installation Procedure ６ ６ ６ Please refer to the service manual issued by SUBARU CORPORATION. for the details of the work. Washer A Lateral Link Front Washer B Lateral Link Rear ＊ Please check the wheel alignment and adjust if necessary. Caution ･When installing the lateral link assembly - front, install the washer A and B on the nut side of the pillow ball bushing.
- Page 13 To customers Handling Precautions Warning ･If abnormal noise or vibration occurs while driving, pull over the car immediately to a safe place, and then inspect and re-tighten the attaching bolts. If abnormalities persist, perform inspection and make necessary repairs immediately. If you continue to drive in this condition, damages or accidents may occur.
- Page 14 SUBARU CORPORATION...
