S
PART.No
E2410SJ3 00/ 310
Applicable
FORESTER (22MY～)
This document describes how to install the STI Front Lip Spoiler .
For correct installation, make sure to read this document before installation.

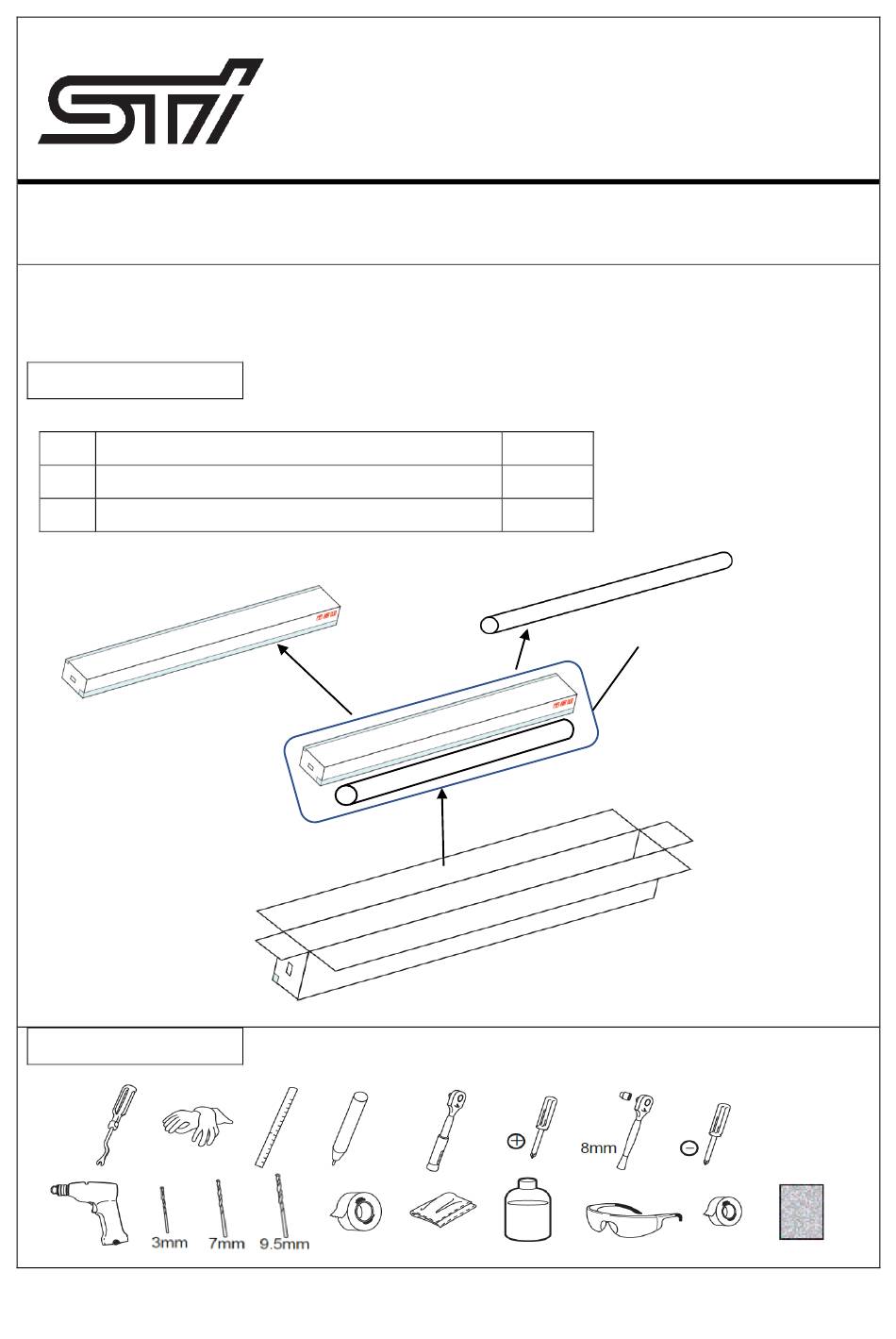

KIT CONTENTS
N o .
①
F r o n t L i p S p o i l e r K i t
②
G u r n e y F l a p K i t
①
TOOLS REQUIRED
STI FRONT LIP SPOILER
P a r t D e s c r i p t i o n
Q u a n t i t y
1
1
②
(1)
Installation Manual
E2410SJ300/ 310
Advertisement
Related Manuals for STI E2410SJ300
Summary of Contents for STI E2410SJ300
- Page 1 PART.No E2410SJ3 00/ 310 Applicable FORESTER (22MY～) This document describes how to install the STI Front Lip Spoiler . For correct installation, make sure to read this document before installation. KIT CONTENTS N o . P a r t D e s c r i p t i o n Q u a n t i t y ①...
- Page 2 ＜CAUTION＞ (1) Perform installation properly according to the procedures indicated in the instruction manual. Improper installation can result in damage to your vehicle or serious injury. (2) Be careful when driving after installing this product as ground clearance at the center section is decreased by approximately 45 mm (1.77 inches).
-
Page 3: Kit Contents
1st step. Installing the Front Lip Spoiler Part No. E2410SJ030/040 Installation instruction. Instruction completion illustration KIT CONTENTS N o . P a r t D e s c r i p t i o n Q u a n t i t y ①... - Page 4 NOTE: This instruction shows only LH side. Please repeat the steps on RH side. ⑥ Pattern B-LH ⑥ Pattern A ⑥ Pattern C-LH 車両前方向 車両前方向 車両前方向 C LH Masking tape Masking tape Front Bumper Under Cover Attach pattern sheets to bumper under cover the surface, and then mark to the intersection on Center the pattern sheets.
- Page 5 Center Front Bumper Under Cover ③ Front Bumper Under Cover Center Detergent Section Ａ Liner 30mm Masking Tape ① Ａ ① Peel off small sections of linor so they can be remove once the part is in position on the vehicle.
- Page 6 ① Center ⑤ Front Bumper Under Cover ① ④ Center ② Front Bumper Under Cover Ａ－Ａ Under Cover ① Center ① Ａ Ａ SEIKQ 4.5 kg 10 sec (10 lbs) Front Bumper Under Cover...
- Page 7 Center ① ② 1.0±0.5N･m (0.75±0.35ib-ft) Front Bumper Under Cover Please proceed to the next step, installing the Gurney flap.
- Page 8 2nd step. Installing the Gurney Flap. Part No. E2410SJ200 Installation instruction. Instruction completion illustration KIT CONTENTS N o . P a r t D e s c r i p t i o n Q u a n ti ty ①...
-
Page 9: Installation Procedure
Installation procedure 1. Preparations for installing the Gurney flap Place a protective cover on the rear bumper to prevent scratches during the work. (1) Clean and degrease the rear gate with a waste cloth impregnated with a degreasing agent (recommendation: nonane). (2) Align the edge of the paper pattern (①-LH) to the edge of the rear gate prior to attaching it. - Page 10 (3) Align the edge of the paper pattern (②-LH) to the edge of the rear gate prior to attaching it. Align the positions Align the edge of the paper pattern of arrows B and C. to the rear gate's edge. Paper pattern edge position: Cross-sectional view Align the edge of the paper...
- Page 11 2. Installation of the Gurney flap (1) Temporarily attach the Gurney flap with masking tape while aligning its left edge with the corresponding position of the paper pattern. Masking tape (7 locations) Align the Gurney flap in the concave shape Align the Gurney flap of the paper pattern.
- Page 12 (2) Peel off approx. 30 mm of the release paper of the double-sided tape from the left edge of the Gurney flap. Attach the Gurney flap while peeling off the release paper of the double-sided tape. Release paper of the double-sided tape 3.
- Page 13 (2) Align the edge of the paper pattern (③-LH) to the edge of the rear gate prior to attaching it. Align arrow D with the valley Shape between the roof molding a-a cross section And the side panel. (paper pattern edge position) Align the edge of the Paper pattern to the rear gate's edge.
- Page 14 4. Installation of the end caps (1) Align the edges of the end cap LH to the edges of the paper pattern and attach the end cap without allowing its end part to get on the Gurney flap. (2) Attach the end cap RH in a similar manner. Revised contents ⊿...
