- This manual describes how to install and handle the STI Side Under Spoiler.
- Read this manual carefully before work and make sure to install it correctly.
△
Precautions
！
- Install the STI Side Under Spoiler by reading the Installation Manual carefully.
- Handle the STI Side Under Spoiler with care and do not let it fall.
- Do not install or use this product in any way other than described in this manual.
- We do not assume any responsibility for any trouble arising from failure to comply with the
instructions in this manual.
- Double-sided tape is used to attach the STI Side Under Spoiler. Attach it with care as once
it is attached, it is extremely difficult to remove.

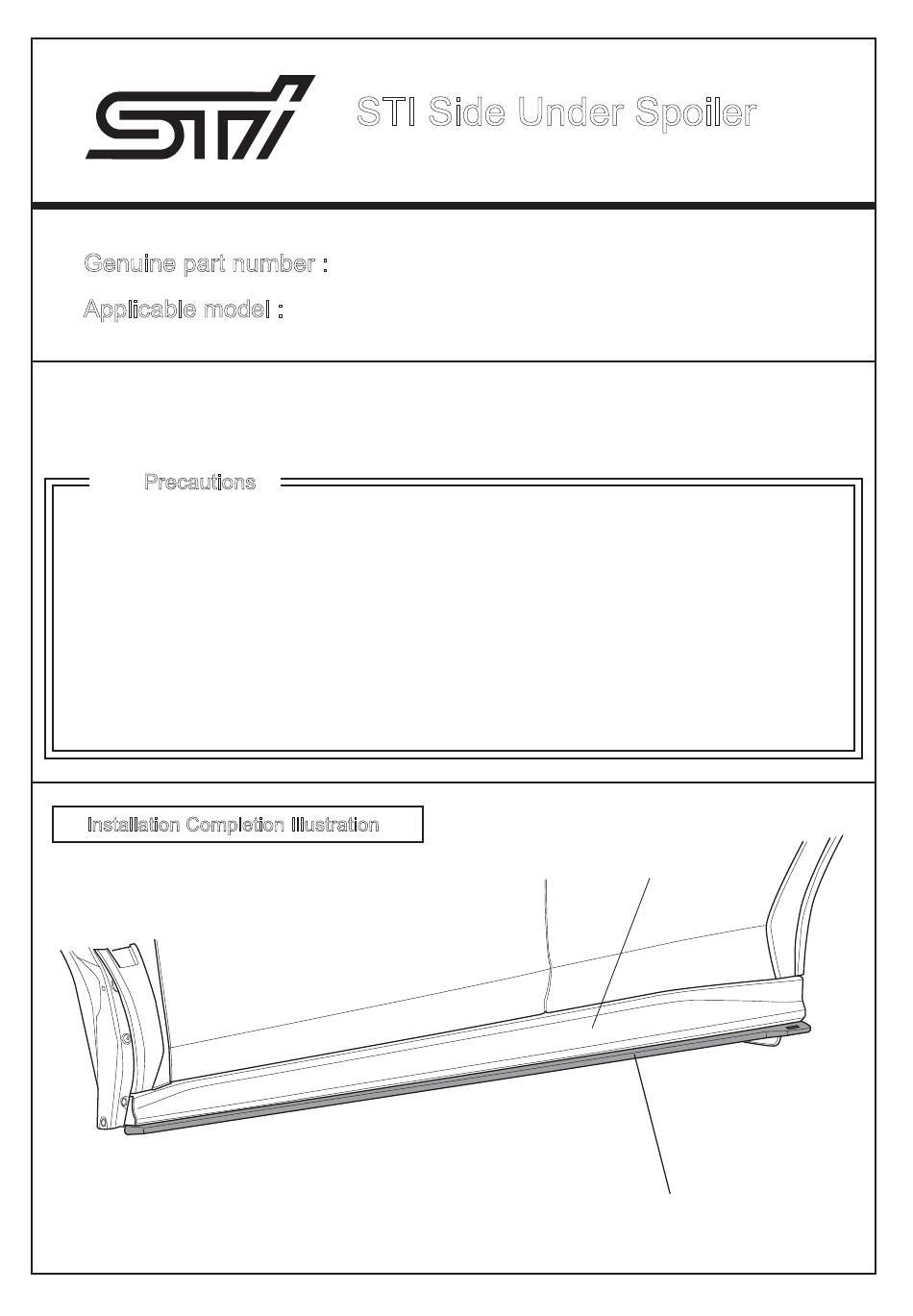

Installation Completion Illustration
STI Side Under Spoiler
E2610VC110/120
ＷＲＸ（ＶＢ）,ＴＹＰＥ Ｂ～
-1-
Installation Manual
Spoiler assy-side
① STI Side Under Spoiler (LH)
△００
Advertisement
Related Manuals for STI E2610VC110
Summary of Contents for STI E2610VC110
- Page 1 - We do not assume any responsibility for any trouble arising from failure to comply with the instructions in this manual. - Double-sided tape is used to attach the STI Side Under Spoiler. Attach it with care as once it is attached, it is extremely difficult to remove.
- Page 2 Components - Make sure to check the components below before installation. Part Name STI Side Under Spoiler RH:1 /LH:1 ① ② ③ ④ ⑤ Wellnut ② Bolt 型紙 ③ ＬＨ FRONT SIDE UNDER SPOILER Clip HINGE LINE SPOILER SIDE ////////// ///////////////////////////////// ④...
- Page 3 Advice ！ To prevent the STI Side Under Spoiler from being deformed or damaged, please observe the following when using a two-pillar lift. ① Set the car slope on the vehicle and secure the ground clearance.
- Page 4 1. Removal of Spoiler assy-side. ( The RH side also performs the same work. ) LH side (1) Refer to the service manual and remove the Spoiler assy-side from the vehicle. Spoiler assy-side 2. Drill holes in the Spoiler assy-side. ( The RH side also performs the same work.
- Page 5 LH side (3) Mark the center of the locator on the Spoiler assy-side underside of the Spoiler assy-side with a needle. (4) Make pilot holes at the marking positions in the order of 3 mm and 6 mm, and finally 下面視...
- Page 6 Masking tape LH side ① STI Side Under Spoiler LH (2) Apply the ① STI Side Under Spoiler to the Spoiler assy-side and fix it with a ④ clip as shown in Fig. 7. Spoiler assy-side ④...
- Page 7 5. Restore the spoiler assy-side. ( The RH side also performs the same work. ) (1) Refer to the service manual and restore the Spoiler assy-side to the vehicle. Spoiler assy-side This is the end of the work. To customers ・We do not accept warranty repairs such as scratches, discoloration of paint, and peeling that occur during use.
- Page 8 ！ Advice ⑤ Pattern paper ・If you print, there is a possibility of scale is not a 1/1. ・Use after copying so that the scale is 1/1. Cut on the outside of the line. ＬＨ FRONT SIDE UNDER SPOILER HINGE LINE ////////// SPOILER SIDE /////////////////////////////////...
