Genuine part number :
Applicable model :
- This manual describes how to install and handle the STI Rear Side Under Spoiler.
- Read this manual carefully before work and make sure to install it correctly.
△
Precautions
！
- Install the STI Rear Side Under Spoiler by reading the Installation Manual carefully.
- Handle the STI Rear Side Under Spoiler with care and do not let it fall.
- Do not install or use this product in any way other than described in this manual.
- We do not assume any responsibility for any trouble arising from failure to comply with the
instructions in this manual.
- Double-sided tape is used to attach the STI Rear Side Under Spoiler.
Attach it with care as once it is attached, it is extremely difficult to remove.

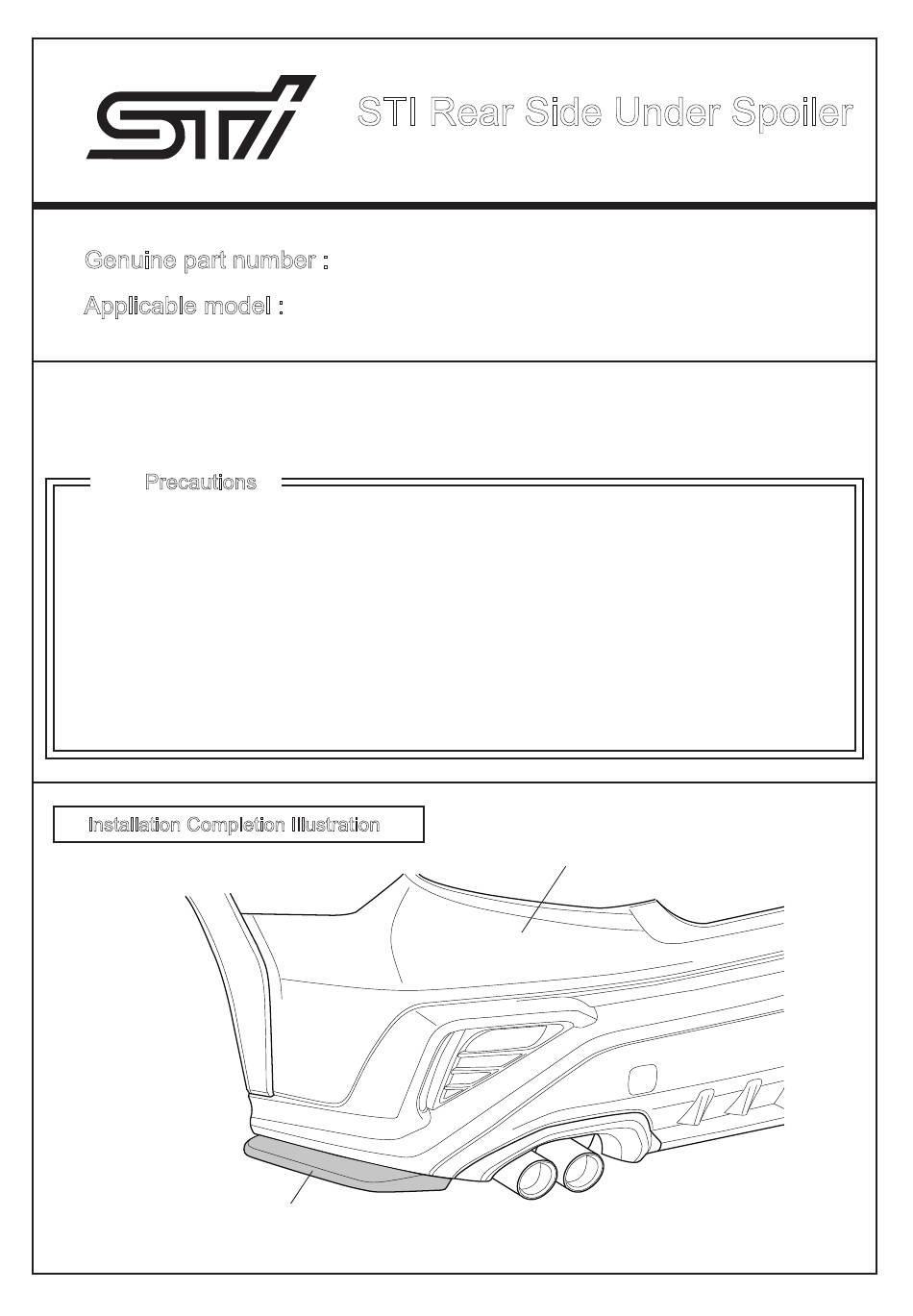

Installation Completion Illustration
① STI Rear Side Under Spoiler
STI Rear Side Under Spoiler
E5610VC010/020
ＷＲＸ（ＶＢ）,ＴＹＰＥ Ｂ～
-1-
Installation Manual
Rear Bumper
△００
Advertisement
Related Manuals for STI E5610VC010
Summary of Contents for STI E5610VC010
- Page 1 - Install the STI Rear Side Under Spoiler by reading the Installation Manual carefully. - Handle the STI Rear Side Under Spoiler with care and do not let it fall. - Do not install or use this product in any way other than described in this manual.
- Page 2 Components - Make sure to check the components below before installation. Part Name STI Rear Side Under Spoiler RH:1 /LH:1 ① Clip(Small) ② Clip(Large) ① ③ Washer ④ Wellnut ⑤ Bolt ⑥ Pattern paper RH/LH (P7) ⑦ ⑦ ② ③...
- Page 3 1. Drill holes in the Rear Bumper ( The RH side also performs the same work. ) (1) Refer to the service manual, remove the LH view Vehicle screw Fender garnish, and remove the Vehicle Rear Bumper screw. ※ Reuse Vehicle screw. Next, remove the two vehicle clips.
- Page 4 (5) As shown in Fig.4, mark the center of the cross mark with a marking needle. Make pilot holes at the marking positions in the order of 3 mm and 6 mm, and finally make a 9.5 mm hole. LH view Rear Bumper ！...
- Page 5 Double-sided tape clings to the bumper, which hinders positioning. Rear Bumper (2) Align the ① STI Rear Under Spoiler with the Rear Bumper and fix it with a ② Clip(Small). Bottom view LH side ② Clip(Small) (3) Secure the ①...
- Page 6 (5) Compare the arrow C and decide the mounting position so that the left and right sides look even. The double-sided tape is crimped while slowly pulling out the release paper in the order of (1) to (4). ！ Advice ｃ...
- Page 7 ！ Advice ⑦ Pattern paper ・If you print, there is a possibility of scale is not a 1/1. ・Use after copying so that the scale is 1/1. Cut on the outside of the line.
