Owner/Operator Manual
Ser # 995-55-271

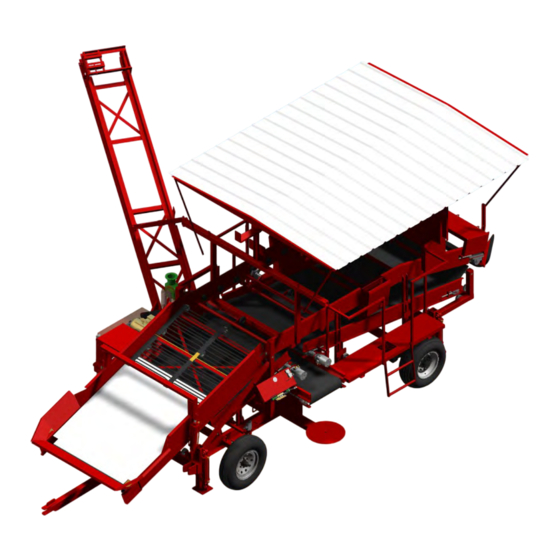

MODEL 995
Custom Eliminator

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 995 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spudnik 995

Summary of Contents for Spudnik 995

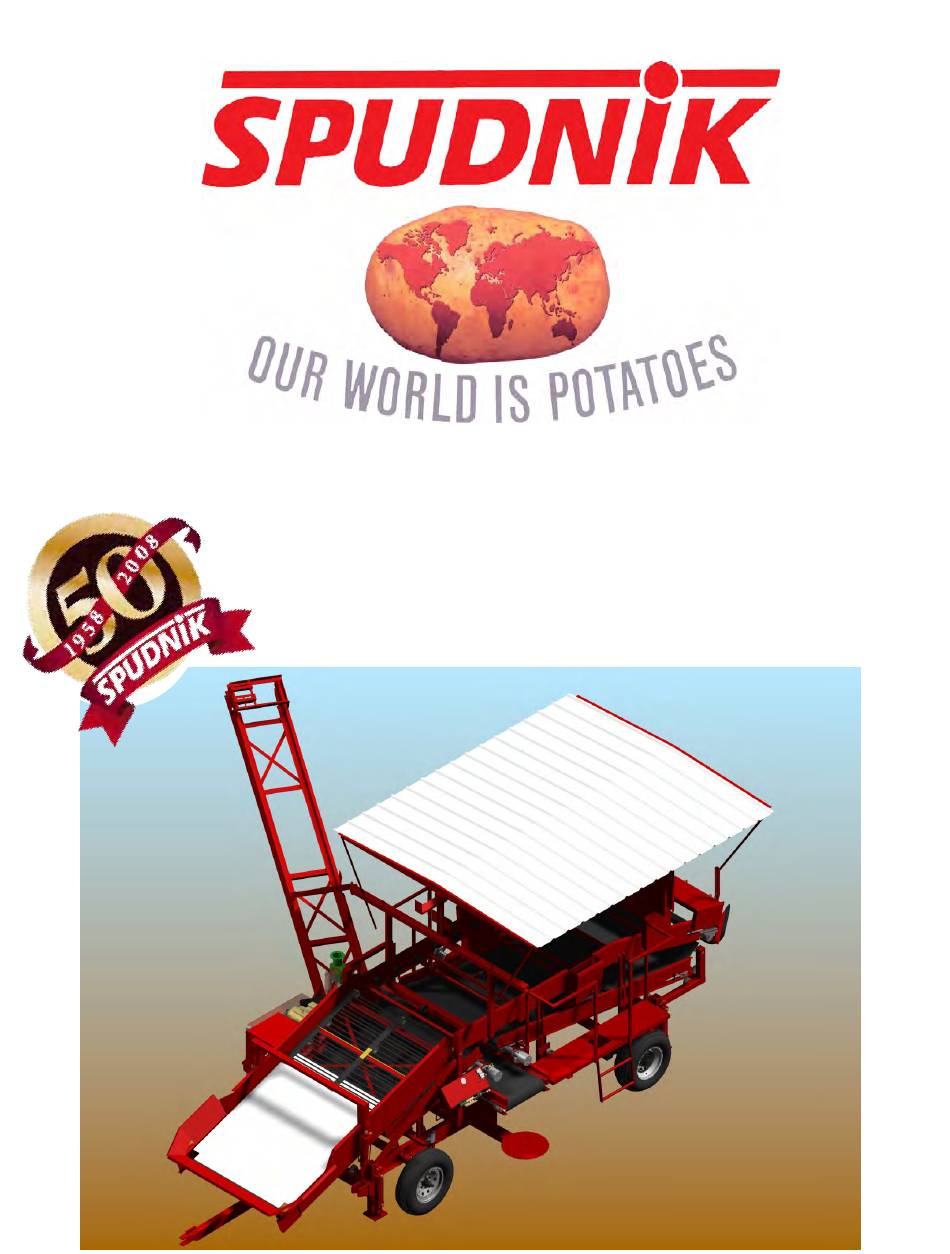

  • Page 1 Owner/Operator Manual Ser # 995-55-271 MODEL 995 Custom Eliminator...
  • Page 2 Operating Manual Overview The purpose of this Spudnik Operating Manual is to make the user familiar with this machine and to assure the machine is used for what it has been designed to do. This Operating Manual contains important information on how to operate this machine properly and efficiently while maintaining all safety regulations.
  • Page 3 Service Centers Phone: (208)785-0480-Fax: (208)785-1497 E-Mail: spudnik@spudnik.com Web Site: www.spudnik.com BLACKFOOT PASCO GRAFTON 584 West 100 North 5802 North Industrial Way 1410 12th St. West P.O. Box 1045 Pasco, Wa. 99301 Grafton, Nd. 58237 Blackfoot, ID 83221 Phone (509) 543-7166...

  • Page 4: Table Of Contents

    Table of Contents Warranty Policy ..................4 Safety ......................5 General Safety Practices .................6 Hydraulics Safety Practices ..............7 Transporting Safety Practices ..............8 Operation Safety Practices ................9 Safety Labels ....................10 Maintenance .....................12 Machine Parts Breakdown ……….……………..……………………..14 Schematics ………..................26...

  • Page 5: Warranty Policy

    Rock chips and other abuse to the painted surface will not be considered for warranty payment. When warranting workmanship or paint on equipment, Spudnik reserves the right to determine whether whole or part of the machine will be warranted. Reasons paint will be warranted for include: A .

  • Page 6: Safety

    When you see this symbol, be alert to the possibility of injury or death. You are responsible for the safe operation and maintenance of your Spudnik Eliminator. All operators and anyone doing work or maintenance on the must be trained in the operation, maintenance procedures, and related SAFETY information contained in this manual.

  • Page 7: General Safety Practices

    SAFETY General Safety and Accident Prevention Regulations •The primary responsibility for safe operation of the Spudnik Eliminator is with the owner/operator. •OSHA (Occupational Safety and Health Administration) requires that all operator’s be trained at the time of initial assignment, and annually thereafter by the employer, in the safe operation of the machine.

  • Page 8: Hydraulics Safety Practices

    SAFETY Specific Safety Instructions •Risk of injury when hitching up or unhitching machines to and from the tractor. •Never allow persons to stand between the tractor and the machine unless the towing vehicle is secured against rolling away by means of the parking brake and/or chocks. •Secure all moving parts before transport.

  • Page 9: Transporting Safety Practices

    SAFETY Transporting Safety Practices •Check to see if all bolts on tow tongue are in good condition, in place, and secure. •Remove the pin from the tow able gearbox wheel drive. •Release hydraulic pressure to the elevator lift cylinder. •It is recommended that all pups be removed from the Eliminator before transport.

  • Page 10: Operation Safety Practices

    SAFETY Operating Safety Practices •Eliminator should be operated on a flat secure surface. •When using leveling jacks, make sure that the jacks are on secure ground. Do not lift the wheels off of the ground. •Do not allow anyone to climb on or under the Eliminator while in operation.

  • Page 11: Safety Labels

    SAFETY Safety Labels • Keep Safety labels and signs clean and legible at all times, • Replace Safety labels and signs that are missing or have become illegible. • When replacing parts that display a safety label, make sure that the new parts also displays the safety label.
  • Page 12 MAINTENANCE The hydraulic system used to power auxiliary functions uses Dexron III ATF (automatic transmission fluid) for prime mover. Hydraulic reservoir fill level should be checked at start of each season, and filled as needed. Hydraulic oil reservoir has a 5-gallon capacity.

  • Page 13: Maintenance

    OPERATING INSTRUCTIONS 1. Center any machine that feeds the Eliminator squarely to the elevator. This allows the potatoes to spread out evenly and provides better sizing and dirt elimination. 2.Adjust the elevator to the required height to eliminate drop. 3.Any equipment that receives product from the Eliminator needs to be adjusted up close to the discharge chute.
  • Page 14 8625A010 ASSEMBLY,CHN ELEV.60"x9'-6" Item Quantity Title Subject Number CHN,BLTD,60"x11MMx56MM,2DN,1STR,CUSH,3RDx47.000LNF 35MISC COLLAR,SHAFT,SET,SCREW,1-1/4" 501950 CONNECTOR,BLTD CHN 56MM (PAIR) 351378 CPLG,HYD,90DEG,6801-6-8 (6MJ-8MB) 601323 CYL,3.00"x10",TIE ROD,22.25",REPHASE 602626 CYL,3.25"x10",TIE ROD,22.25",REPHASE 602627 ELEV.CHAIN 60"x9'-6" ELIM.BARE,HALF PAN 8625-010 LINK,CONNECTOR,BLTD,CHAIN 60" 351274 NUBBIN,1-1/4"ODx1-3/8"LONG DT 1/2" 181046 PIN,HINGE,ELEV,36" CHAIN 1-1/4"x7-1/8" 181215 RLR,BLTD,CHN,1/2"x4"...

  • Page 15: Machine Parts Breakdown

    8625A006 990 60"x5' FULL RTRN 9"FS (HYD) Item Quantity Description Part # Number ARM,TORQUE,HYD,DRV,4 HOLE 1/2" x 12" 901495 BELT,FLAT,12" 150# x 5.042 LNF 261000 BELT,FLAT,72" 150# x 10.000 LNF (LACED) 261496 BRNG,TU,1-7/16"BORE ECC LCK ASSY 9" BOLT 231098 BUSHING,P1x1-7/16" BORE SPLIT TAPER 781184 CONV,RETURN,CUST.ELIM,60"x5'-0"(HYD) 8625-006...
  • Page 16 8625A007 ASSY,TBL,PICKING,CHAIN,60"x12' ELEC,VARI,SPD Item Quantity Description Part # Number CHN,RLR,80 PITCH x 5.500 LNF 351275 CPLG,HYD,90DEG,6801-6-8 (6MJ-8MB) 601323 CYL,2.00"x8",TIE ROD,20.25",1.125",3/4 602610 GRBX,PAR,14:1,10HP,215TC D BROWN MDL580 571277 LETDOWN,60",ELIM DISCHARGE COMPLETE 171708 LINK,CHN,RLR,MASTER,80 PITCH 351278 MOUNTING PIPE,SHAKER ARM ADJUSTER 8625-019 NUBBIN,1-1/4"ODx1-3/8"LONG DT 1/2" 181046 PB BRNG, 2 BORE VPS-132 231069...
  • Page 17 8625A005 990 60"x10' FULL RTRN 9"FS (HYD) Item Quantity Description Part # Number ARM,TORQUE,HYD,DRV,4 HOLE 1/2" x 12" 901495 BELT,FLAT,12" 150# x 5.042 LNF 261000 BELT,FLAT,72" 150# x 20.000 LNF (LACED) 261496 BRNG,TU,1-7/16"BORE ECC LCK ASSY 9" BOLT 231098 BUSHING,P1x1-7/16" BORE SPLIT TAPER 781184 CONV,RETURN,CUST,ELIM,60"x10'-0"(HYD) 8625-005...
  • Page 18 8625A011 995 PICKER PLATFORM 12"x72" W/RAIL Item Quantity Description Part # Number LADDER,PICKER PLATFORM,ELIM, 2 RUNG 193614 PIN,PICKING TABLE PLATFORM 1/2"x3" G01577 PLATE,1/4" x 8" x 9-7/8" 022948 PLATE,ELIMINATOR,PLATFORM,MOUNTING 173467 PLATFORM,PICKING TABLE,16"x72",W/ RAIL 8625-011 NOTE: QUANTITIES ARE DOUBLE FOR ONE COMPLETE MACHINE...
  • Page 19 FA5014 990 HANG ON CHUTES 10' FULL OR SPLIT TBL Item Quantity Description Part # Number CHUTE,ELIM.HANG-ON,6"x 16" x 21" 194457...
  • Page 20 FA5072 990 CROSS CONV 24"x9' FLAT BELT Item Quantity Description Part # Number BELT,FLAT,24" 150# x 18.000 LNF (LACED) 261005 BRNG,TU,1-7/16"BORE ECC LCK ASSY 9" BOLT 231098 BUSHING,P1x1-7/16" BORE SPLIT TAPER 781184 CHN,RLR,60 PITCH x 58" LG 351005 CONVEYOR,CROSS,24"x9'-0" ELIM,BARE 171830 GRBX,ELECTRA,L/F,C-FACE,26AKV 15:1 2.77 571115...
  • Page 21 8625-STEERING 995 HYD STEERING INTAKE END LIFT & TOW Item Quantity Description Part # Number AXLE,ELIM,STEERING,60"&72" G00168 BRNG,THRUST,1-5/8"BORE TIMKEN T-163 231025 COLLAR,SHAFT,SET,SCREW,1-5/8" 501953 CPLG,HYD,90DEG,6801-6-8 (6MJ-8MB) 601323 CPLG,HYD,STR,6400-6-8 (6MJ-8MB) 601477 CYL,3.00"x8",TIE ROD,20.25",1.375",3/4 602619 HUB,COMPLETE,6 HOLE, AFTER 1/1/2001 951359 PLATE,1/2" x 3" x 8" (STEERING PADEYE) 8625-048 PLATE,1/2"x2-1/2"x9"...
  • Page 22 8625-WHL-DRV 9905 HYDRAULIC WHEEL DRIVE SINGLE AXLE Item Quantity Description Part # Number ARM,TORQUE,HYD,WHL,DRV,4 HOLE 3/8x6-1/4" 901575 AXLE,ELIM,DRIVE,60"&72" LARGE,SML PLT G00523 BOLT,HEX,HD,9/16"-18UNFx1-1/2" GR5*FINE* 502250 COUPLING,HYD,WHL,DRV,1" x 3" 1/2"WALL 181102 CPLG,HYD,90DEG,6801-06-10,NWO(6MJ-10MB) 602662 CPLG,HYD,STR,6400-8-8 (8MJ-8MB) 601457 GRBX,WHL,DRV,HUB,50:1 TOWABLE UMC#730UBT 571145 HUB,ASSY,FOR 730 LONG GRBX 571123 MTR,HYD,14.9 CU IN.
  • Page 23 FA5135 990 HYDRAULIC JACKS 4 EACH Item Quantity Description Part # Number CPLG,HYD,90DEG,6801-6-8 (6MJ-8MB) 601323 CPLG,HYD,STR,6400-6-8 (6MJ-8MB) 601477 CYL,3.00"x12",TIE ROD,22.25",1.375",3/4 602621 JACK,ASSEMBLY,LEVELING,ELIMINATOR 131173 PLATE,1/4" x 5" x 5" G00598 VALVE,ACCESORY,SAFETY LEVER M8x1.25x160m 602473 VALVE,ACCESORY,SAFETY LEVERBRACKET 602472 DETAIL A DETAIL B...
  • Page 24 FA5172 990 HYD UNIT 7-1/2 HP MTR 230V 3PH Item Quantity Description Part # Number BASE,FILTER W/3/4" PORTS 601040 BUSHING,SH 1-3/8" BORE 781474 CLPG,HYD,TEE,6602-08-08-08(MJ-FJS-MJ) 602367 CPLG,HYD,90DEG,2501-8-12 (8MJ-12MP) 601317 CPLG,HYD,90DEG,2501-8-8 (8MJ-8MP) 601370 CPLG,HYD,STR,6405-8-4 (8MB-4FP) 601256 FILTER ABSOLUTE 10 MICRON ZAE10 602154 GAUGE,PRESSURE 3000PSI 601410 MTR,FOOT,3PH 7.5HP 213T 1-3/8"...
  • Page 25 FA5279 990 CANOPY ROOF 10'x12' Item Quantity Description Part # Number ANGLE,1/8"x1"x1" x 45" (CUT TO FIT) G00504 ANGLE,1/8"x1"x1" x 57" (CUT TO FIT) G00505 CANOPY,ROOF FRAME ONLY 10'Wx12'L ELIM 981347 ROOFING,METAL,DELTA RIB WHITE,36"Wx126"L 901852...
