Introduction PURPOSE OF THE DOCUMENT This User Guide is designed to assist you with the installation, operation and maintenance of the Technimount Bracket Pro Serie 121-GR3 Technimount Bracket Pro Serie 121-GR3 for the Spectrum IQ Infusion System from Baxter®. PRODUCT DESCRIPTION The Bracket Pro Serie 121-GR3 is a complete mounting system for Baxter Spectrum IQ Infusion System on cots / stretchers.
Introduction POSSIBLE MOUNTING OPTIONS FOR THE BRACKET PRO SERIE® 121-GR3 Neonatal Stretcher System Safety MD-Transporter (vertical mounting system) Return To Table of Contents www.technimount.com UG-BP121GR3-202302EN-01...
Introduction SYMBOLS AND DEFINITIONS SYMBOL DEFINITION Alerts the reader of a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury to the user or patient or damage to the equipment or other property. This includes the special care necessary for the safe and effective use of the device and avoid damage that may occur from use or misuse.
Introduction WARNING / CAUTION The term warning, caution, or note carry special meaning and should be carefully reviewed. SYMBOL DEFINITION Warning Indicates a hazardous situation that, if not avoided, could result in death or serious injury. Caution Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

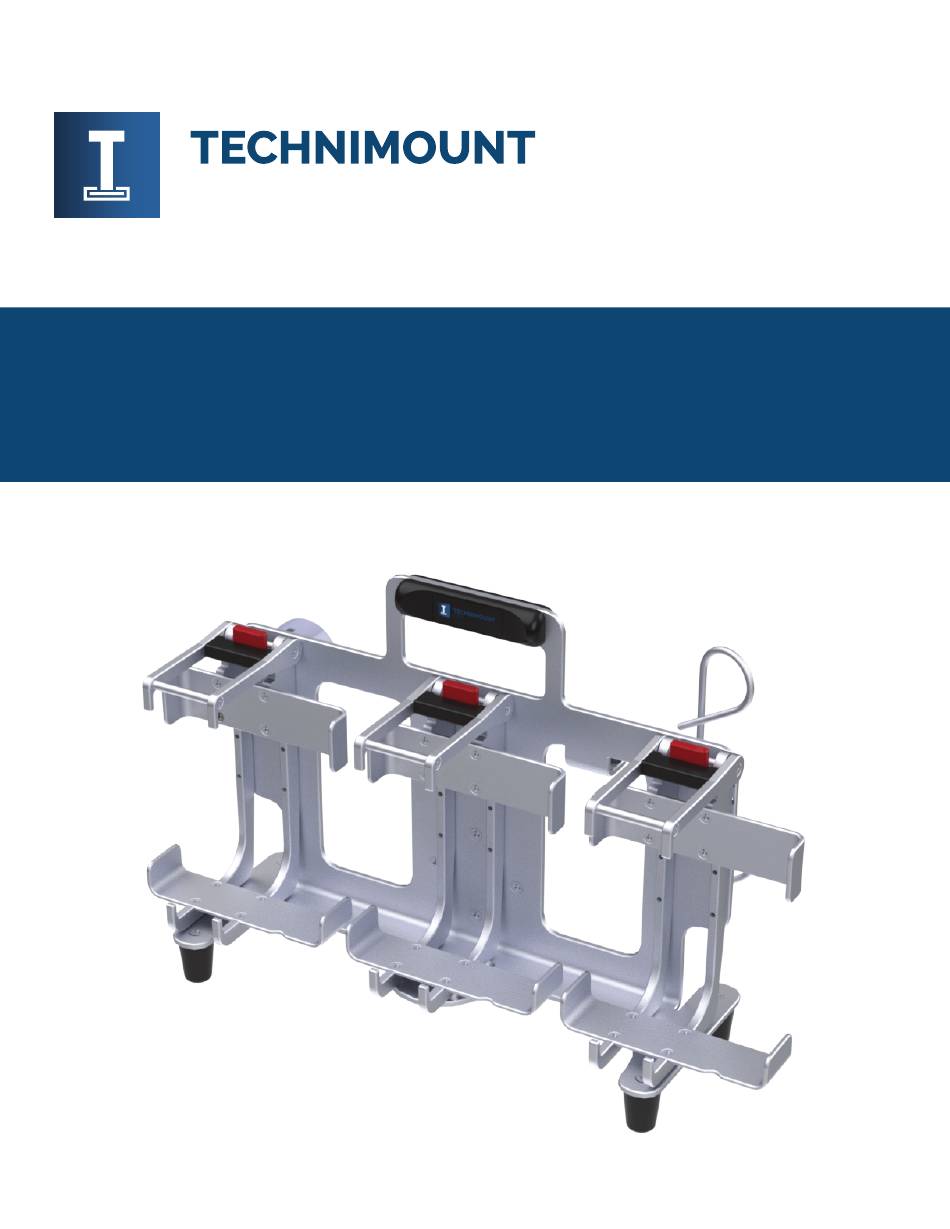

Introduction PRODUCT ILLUSTRATIONS BRACKET PRO SERIE 121-GR3 Front View Transport Handle Red Quick Release IV Pole Hook Mechanism Pump Holder Foot Return To Table of Contents UG-BP121GR3-202302EN-01 www.technimount.com...
Introduction PRODUCT ILLUSTRATIONS (CONTINUED) BRACKET PRO SERIE 121-GR3 (CONTINUED) Back View Pivoting IV Pole for temporary Transport IV Pole Red Quick Release Knob IV Pole Clip Anti-Rotation Micro Disc Return To Table of Contents www.technimount.com UG-BP121GR3-202302EN-01...
Introduction TECHNICAL SPECIFICATIONS Product Name Bracket Pro Serie® 121-GR3 Bracket mounting system to securely transport up to three Spectrum IQ Infusion Product Description Systems during intra and inter-hospital transport Compatibility of Medical Device* Baxter® Spectrum IQ Infusion System Environment of Usage EMS / CCT (Ground) –...
Notice The Bracket Pro Serie 121-GR3 is designed to comply with the essential requirements and other relevant provisions of SAE J3043 and AMD 028. For more information, please contact Customer Service at customerservice@technimount. com. Technimount E.M.S. Holding Inc. C/O: Regulatory Affairs 3770 Jean Marchand Street, Suite 100-C Quebec (QC) G2C 1Y6 Canada...
9 Always hold the Bracket with both hands when you manipulate it. 9 Operate the bracket only as described in this user guide. 9 Do not modify the bracket, or any component of Technimount system. Modifying the product can cause unpredictable operation resulting in injury to the patient or operator.
Page 15
Summary of Safety Precautions WARNING/CAUTION/NOTE (CONTINUED) CAUTION 9 Only certified technical personnel familiar with the bracket installation and use should manipulate it. Always refer to Technimount's user guides for all instructions for installing and using any Technimount mounting system. 9 Regulary inspect all of the equipment's components for any issue and loose screws, bolts and nuts. 9 Never install the mount into or onto other similar mounting systems or brackets without written confirmation by Technimount EMS as these different systems may be from other brands or models and may not be compatible with Technimount systems.
Installation Guide REMOVING THE PACKAGING FOR INSTALLATION 1. Unpack boxes and check all items. 2. Ensure that all shipping and packaging materials have been properly removed from the product(s) prior to installation. 3. Identify all of the product components and hardware prior to starting the installation. 4.
Installation Guide INSTALLATION OF THE BAXTER PUMPS ONTO THE BRACKET 1. Place the bracket on a stable surface for installation. 2. Pull the Red Quick Release Mechanism towards you and lift the top part of the holder. 3. Insert the Baxter Pump into the holder. Return To Table of Contents www.technimount.com UG-BP121GR3-202302EN-01...
Page 18
Installation Guide INSTALLATION OF THE BAXTER PUMPS ONTO THE BRACKET (CONTINUED) 4. Lower the top part of the holder over the pump until you hear the click sound. NOTE: Make sure the pump is securely fastened in its holder. 5. Repeat steps 2 to 4 to install up to three pumps onto the bracket.
Installation Guide INSTALLATION OF THE IV POLE 1. Pivot the IV Pole to a vertical position, until you hear the click sound. 2. The IV Pole is now ready to be used with IV bags. WARNING 9 The IV Pole is only for temporary transport from hospital to ambulance.
Mounting System Part Numbers KITS AND OTHER OPTIONS DESCRIPTION PART NUMBER Bracket Pro Serie 121-GR3 1520-10-BXIQ-GR3 WARNING Do not modify any component of this system. Modifying the products can cause unpredictable operation resulting in injury to the patient or operator. NOTE Technimount reserves the right to change Part Numbers and Products without notice.
Maintenance Guide CLEANING THE BRACKET SYSTEM CLEANING PROCESS WARNING Follow your EMS service protocol or medical device's manufacturer user guide for the recommended cleaning procedures of your medical devices. The cleaning procedures below do NOT provide recommendations for the maintenance of other medical devices. The following cleaning guidelines consider the Technimount mounting system and its components.
Maintenance Guide CLEANING THE BRACKET SYSTEM (CONTINUED) CLEANING SOLUTIONS Phenolic type or quaternary type disinfectants can be used (excluding Virex® TB). Iodophor type disinfectants, Peracetic Acid, Chlorine, and especially Hydrogen Peroxide are not recommended for use because staining and corrosion may result.
Maintenance Guide INSPECTION PROCESS AND SCHEDULE MAINTENANCE PLAN The following inspection routine and schedule is intended as a general guide for preventive maintenance of the Bracket. Factors such as weather, environment, geographical location, and individual usage will necessitate different maintenance. If you are unsure as to how to perform these maintenance inspections or at what interval to perform these inspections, please contact Technical Support at techsupport@technimount.com.
Maintenance Guide TRAINING LOG TRAINING DATE TRAINING METHOD BASIC TRAINING TRAINEE NAME TRAINING UPDATE Return To Table of Contents www.technimount.com UG-BP121GR3-202302EN-01...
Maintenance Guide REPLACEMENT PARTS The parts and accessories listed below are all currently available for purchase. Some of the parts illustrated in this user guide may not be individually available for purchase. Please contact Customer Service at customerservice@ technimount.com or +1.888.639.2758. DESCRIPTION PART NUMBER IV Pole...
Warranty WARRANTY POLICY This statement constitutes TECHNIMOUNT’s entire warranty policy with regards to the TECHNIMOUNT Products. TECHNIMOUNT MAKES NO OTHER WARRANTY OR REPRESENTATION NEITHER EXPRESSED NOR IMPLIED, EXCEPT AS SET FORTH HEREIN. THERE IS NO WARRANTY OF MERCHANTABILITY AND THERE ARE NO WARRANTIES OF FITNESS FOR ANY PARTICULAR PURPOSE.
Warranty RETURN POLICY Mounting systems and bracket systems for portable medical devices may be returned up to 60 days of receipt if: ▪ The product is not what was originally ordered ▪ The product does not meet specifications with TECHNIMOUNT’s technical sheets ▪...
Warranty DAMAGED MERCHANDISE ICC Regulations require that claims for damaged merchandise must be made with the carrier within fifteen (15) days of receiving merchandise. DO NOT ACCEPT DAMAGED SHIPMENTS UNLESS SUCH DAMAGE IS NOTED ON THE DELIVERY RECEIPT AT THE TIME OF RECEIPT. Upon prompt notification, TECHNIMOUNT will file a freight claim with the appropriate carrier for damages incurred.
