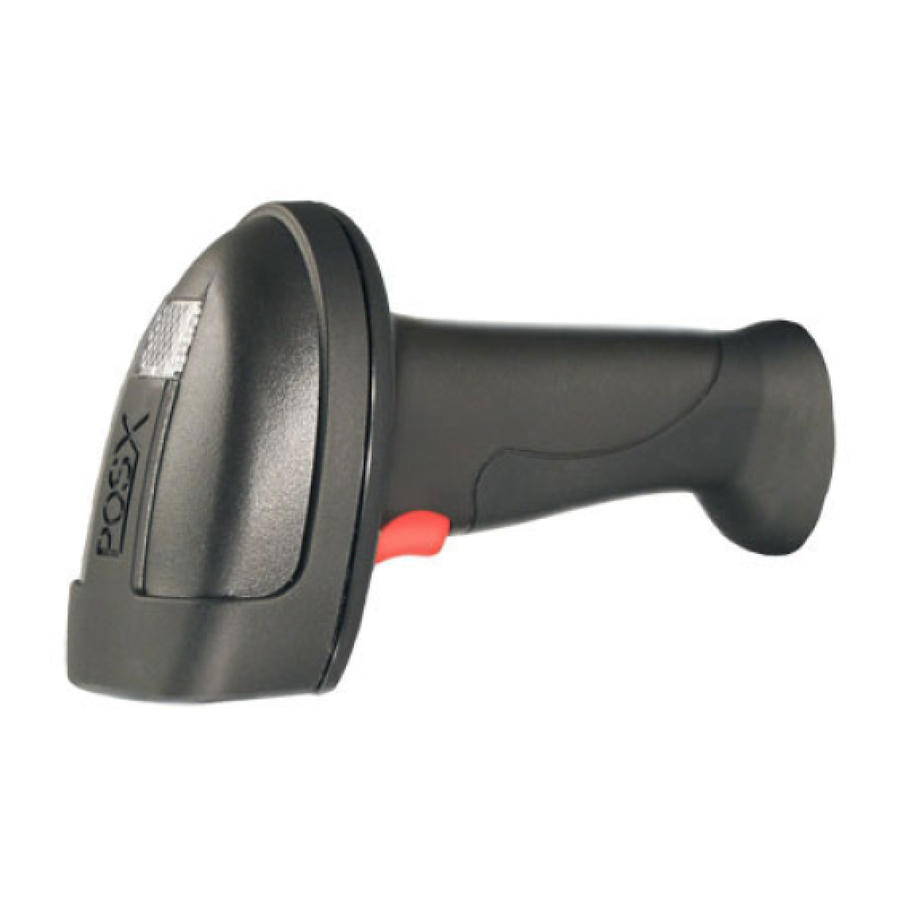

POS-X Xi3000 Manual

Your new POS-X scanner has been pre-configured to the most common settings found amongst scanners in the US.
If you are integrating this scanner into a pre-existing system, you may need to configure your scanner to replicate the
same formatting used by your previous barcode scanner. Often times extra digits appear or are missing from the front
or end of a barcode number.
If your barcode scanner is not outputting the correct barcode, plug your new scanner into your computer and scan a
barcode into 'Notepad'. Compare the barcode number you see in Notepad to the barcode with the correct formatting.
If the numbers do not match up, configuration of your scanner will be needed.
To begin configuration, scan 'Enter Setup', then the desired effect, then 'Save' to complete the process. Repeat
process until desired formatting is achieved. For more formatting options, see included floppy.
ENTER SETUP
ENABLE AUTO-SENSE MODE:
ENABLE CHARACTER DELAY
(Required for USB models only):
UPC-A FORMATTING (UPCA is the most common barcode found on products – 12 digits long)
CONVERT TO EAN13
(Euro Standard)
SYSTEM NUMBER TRANMISSION
(First digit of barcode)
CHECKSUM TRANMISSION
(Last digit of barcode)
UPC-E FORMATTING (UPCE barcodes are found on a variety of products such as cigarettes & soda cans – 8 digits long)
CONVERT TO UPC-A (Converts the 8 digit
barcode to a 12 digit barcode)
SYSTEM NUMBER TRANMISSION
(First digit of barcode)
CHECKSUM TRANMISSION
(Last digit of barcode)

Barcode Scanner Formatting Guide

Phone 1(800) 790-8657
EXIT SETUP WITHOUT CHANGES
ENABLE
SCAN #1
0177 ENABLE
0193 ENABLE
0185 ENABLE
0175 ENABLE
0191 ENABLE
0183 ENABLE
Email: sales@pos-x.com Web:
- 1 -
Fax 1(360) 738-3495
*
SCAN #2
*
*
*
www.pos-x.com
SAVE
DISABLE
SCAN #3
*
0178 DISABLE
0194 DISABLE
0186 DISABLE
*
0176 DISABLE
*
0192 DISABLE
0184 DISABLE
*
Default setting
