ATEN VanCryst VE2812AEUT - HDMI & VGA HDBaseT Transmitter Manual

Package Contents

1 x VE2812AEUT HDMI & VGA HDBaseT Transmitter with EU Wall Plate / POH
1 x 3 Pin RS-232 Terminal Block
1 x 2 Pin Power Terminal Block
1 x Mounting Kit
1 x Power Adapter
1 x User Instructions

Hardware Review

Hardware Review

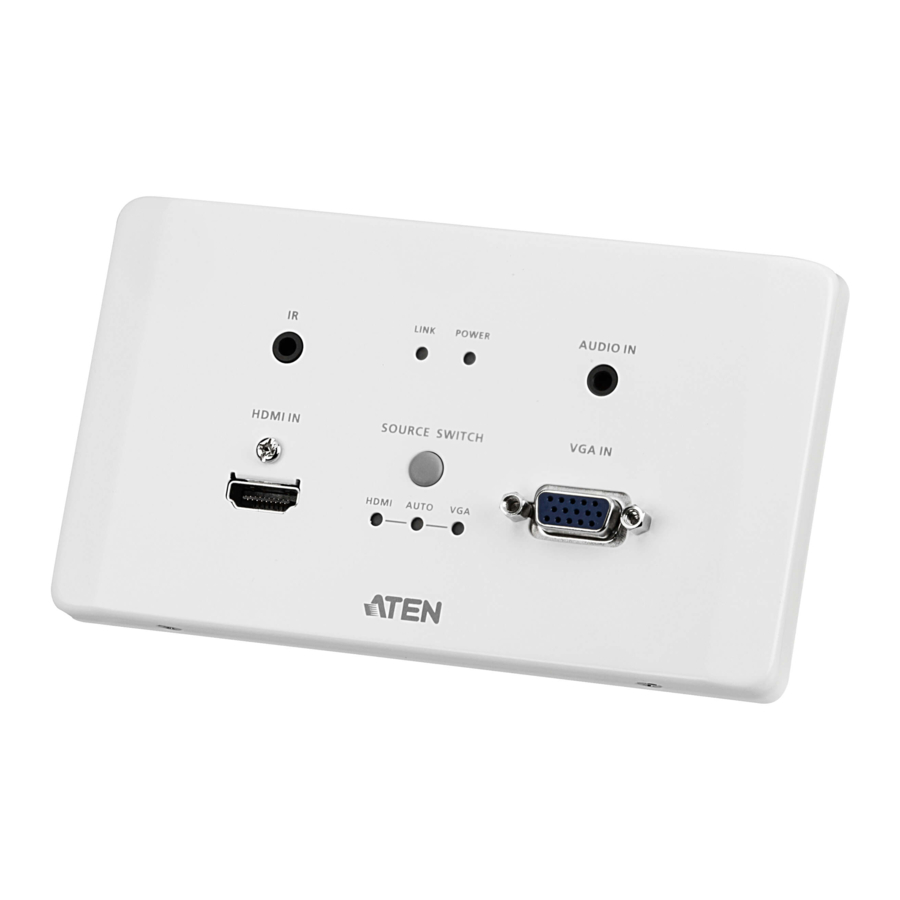

Top View

  1. IR Port
  2. HDMI Input Port
  3. Audio Input Port
  4. VGA Input Port
  5. Source Switch Pushbutton

System Status LEDs

  1. Link LED
  2. Power LED

Source Input Status LEDs

  1. HDMI LED
  2. AUTO LED
  3. VGA LED

Side Panel View 1 & 2

  1. Firmware Upgrade Switch
  2. HDBaseT Long Reach Mode Switch
  3. Power Terminal Block
  4. RS-232 Port
  5. HDBaseT Out Port

Troubleshooting

The Firmware Upgrade Switch is reserved for technical support. If you would like to do a fi rmware upgrade yourself, please contact ATEN technical support.

Installation

Wall Mounting
Wall Mounting

  1. Secure the supplied frame to your installation site using 4 screws (EU type) or 2 screws (MK type). This installation site can be a wall or ceiling.
  2. Secure the unit to the installation site using 4 screws. Note: Screws are not included in the package contents.

Power Supply Information

  1. Cut the connector end of the power adapter.
  2. Strip 5 mm (0.5 cm) off the insulation cover of the Power Adapter cable to expose two wires: a +5V wire and a GND (grounding) wire.
  3. Insert the exposed +5V wire and GND (grounding) wire tightly into the provided 2-pin Terminal Block Connector.

Note: One method to determine an exposed wire's polarity (i.e., +5V or GND) is by using a voltmeter.

Hardware Installation

Hardware Installation

  1. Connect the HDMI / VGA Input Port on the VE2812AEUT to the HDMI / VGA Output port on your video source device using an HDMI / VGA cable. For a VGA source, also connect the Audio Output port of the source device to the Audio Input Port on the VE2812AEUT.
  2. With the built-in PoH PD capability, the VE2812AEUT can be powered on through an Ethernet cable. Connect one end of a Cat5e/6/6a cable to the HDBaseT Output port on the transmitter, and then connect the other end to the HDBaseT Input port on the receiver.
  3. (Optional) Connect the RS-232 control interface of your computer or control to the RS-232 Serial Port on the VE2812AEUT.
  1. (Optional) Connect an IR transmitter / receiver to the IR Port on the VE2812AEUT.
  2. Please follow the instructions described in Power Supply Information. (Optional) Plug the Power Adapter cable into the Power Terminal Block on the VE2812AEUT to power on the device.

Note: The VE2812AEUT prioritizes the power supply from the power adapter when the Power Adapter is plugged in.

Operation

Source Input Operation
The VE2812AEUT can be used as a switch by connecting two source devices to the transmitter. Press the Source Switch Pushbutton on the VE2812AEUT to switch between different input modes – Auto, HDMI, and VGA mode. Refer to the table below for details.

Input Mode Description
Auto (Default)
  • Before power on, the VE2812AEUT prioritizes HDMI transmission if both HDMI Input and VGA Input ports are connected.
  • After powered on, the VE2812AEUT prioritizes the latest detected input source transmission to the connected receiver.
HDMI VGA The VE2812AEUT only transmits the HDMI source to the connected receiver. The VE2812AEUT only transmits the VGA source and its audio input to the connected receiver.

In addition, the source input can be remotely selected by RS-232 command. Please refer to the VE2812AEUT user manual for further details.

RS-232 Channel Transmission
You can connect an RS-232 serial device to the VE2812AEUT RS-232 Serial Port, such as a touchscreen and bar code scanner. The RS-232 signal transmission fl ow is shown in the following example: From a source device, the RS-232 signal is transmitted (Tx) to the receiving (Rx) unit; the VE2812AEUT transmits (Tx) signals to the display device (Rx).

Working in Long Reach Mode
The VE2812AEUT supports long reach mode. When this mode is applied, the maximum range can be enhanced to 150 meters at resolutions up to 1080p. Please refer to the VE2812AEUT user manual for further details.

Compatible Products
Receivers
The VE2812AEUT is compatible with the VE2812R, VE1812R, VE811R, VE812R, VE814AR, VE801R, VE802R, VE601R, VP1421, or future ATEN HDBaseT Receivers.
POH PSE
The VE2812AEUT is compatible with VE44PB, VP1421, or future ATEN PoH PSE products, which can power the VE2812AEUT.

Support and Documentation Notice

All information, documentation, fi rmware, software utilities, and specifi cations contained in this package are subject to change without prior notifi cation by the manufacturer. To reduce the environmental impact of our products, ATEN documentation and software can be found online at http://www.aten.com/download/

Technical Support
www.aten.com/support

Scan for more information

© Copyright 2019 ATEN® International Co., Ltd.
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights reserved.
All other trademarks are the property of their respective owners.
