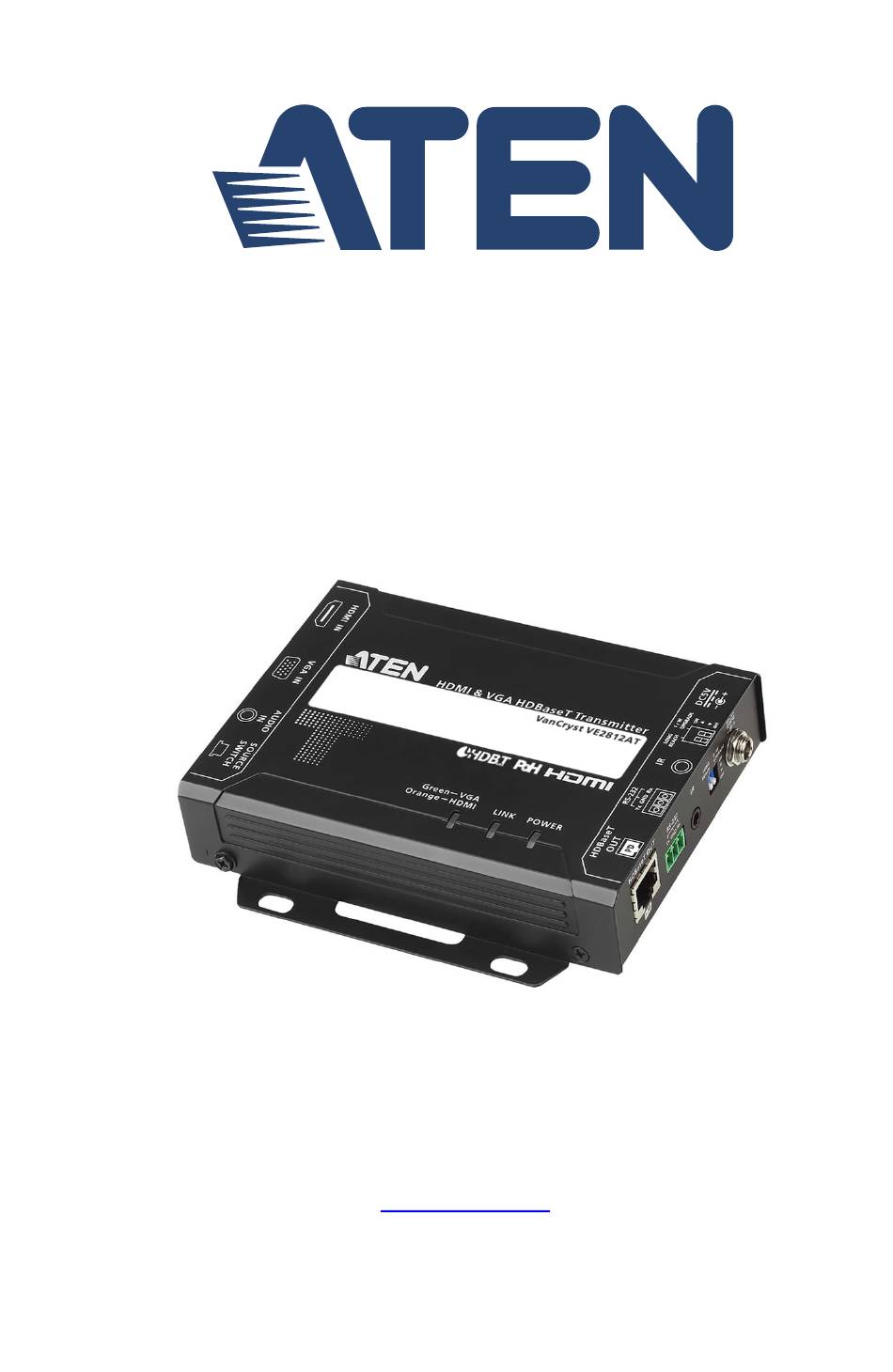

- Page 1 HDMI & VGA HDBaseT Transmitter with POH VE2812AT User Manual www.aten.com...
-
Page 2: Emc Information
VE2812AT User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: User Information
VE2812AT User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988... -
Page 4: Package Contents
VE2812AT User Manual Package Contents 1 VE2812AT HDMI & VGA HDBaseT Transmitter with POH 1 RS-232 Terminal Block 4 Foot Pads 1 Power Adapter 1 User Instructions Note: 1. Check to make sure that all the components are present and that nothing got damaged in shipping. -
Page 5: Table Of Contents
Mounting the VE2812AT Unit ........7... - Page 6 VE2812AT User Manual International ..........20 North America .
-
Page 7: About This Manual
VE2812AT User Manual About this Manual This user manual is provided to help you get the most from the VE2812AT unit. It covers all aspects of installation, configuration, and operation. An overview of the information found in the manual is provided below. -
Page 8: Conventions
VE2812AT User Manual Conventions This manual uses the following conventions: Indicates text that you should key in. Monospaced Indicates keys you should press. For example, [Enter] means to press the Enter key. If keys need to be chorded, they appear together in the same bracket with a plus sign between them: [Ctrl+Alt]. -
Page 9: Product Information
VE2812AT User Manual Product Information For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... - Page 10 VE2812AT User Manual This Page Intentionally Left Blank...
-
Page 11: Introduction
Overview ATEN VE2812AT is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring built-in PoH (Power over HDBaseT) function, the VE2812AT receives power supply from the HDBaseT output port on the connected device. This eliminates the need for a power adapter and reduces the hassel of power line deployment behind the wall. -
Page 12: Features
Extends HDMI or VGA signals, providing superior video quality: HDMI: 4K / 1080p at distance up to 100 m via a Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable ... -
Page 13: Planning The Installation
(up to 1080p in Long Reach Mode) Extender A compatible ATEN Video HDMI Extender to the display Compatible ATEN Video Extenders The VE2812AT is designed to work with a wide range of ATEN HDBaseT video extenders. Visit our official web site for more details. -
Page 14: Components
The input mode status is indicated by the three LEDs to the right of this pushbutton. For details, see VE2812AT Top View, page 5. To switch between Bypass Mode and Command mode, see RS-232 Serial Transmission, page 13. -
Page 15: Ve2812At Top View
VE2812AT User Manual Component Description Power Jack Connects to the Power Adapter. Auto LED Lights orange when the unit is set to the Auto Switch mode. For details, see Selecting the Input Mode, page 11. HDMI LED Lights orange when the unit is set to transmit HDMI input. - Page 16 Chapter 1. Introduction This Page Intentionally Left Blank...
-
Page 17: Hardware Setup
Mounting the VE2812AT Unit You can mount the VE2812AT to the wall or on a rack. Wall Mounting Secure or hang the VE2812AT unit to the wall using the built-in mounting brackets. Rack Mounting Use the VE-RMK 1U Rack Mount Kit to rack-mount the VE2812AT. For more information about this accessory, go to www.aten.com/products... -
Page 18: Connecting The Ve2812At Unit
VE2812AT (Rear) VE2812AT (Front) 1. Connect the HDMI Input Port on the VE2812AT to the HDMI or VGA Output port on your video source device using an HDMI or VGA cable. If VGA cable is connected, then you need to connect the VGA audio jack to the... - Page 19 4. (Optional) To receive IR signals to remotely control a device (e.g. blu-ray disc) connected to the video receiver, connect an IR emitter to the VE2812AT’s IR Port and an IR receiver to the VE2812R’s IR Port or vice versa.
-
Page 20: Rs-232 Channel Transmission
(Rx) unit; the a compatible ATEN Video Receiver transmits (Tx) signals to the display device (Rx). You can set the VE2812AT to either bypass serial data or to receive RS-232 commands. By default, the VE2812AT is set to receive serial data. To set the unit to bypass RS-232 commands, press the Input Switch pushbutton for 3 seconds. -
Page 21: Operation
HDMI and VGA inputs are (LED lights orange) plugged in at the same time. After power on, the VE2812AT prioritizes the latest detected input source transmission to the connected receiver. Note: You can disable this part of the Auto Switch mode (automatic input switching) using an RS-232 command. -
Page 22: Source Switch Pushbutton
Chapter 3. Operation Source Switch Pushbutton Press the Source Switch Pushbutton located on the front panel to switch among the Auto Switch, HDMI, and VGA input mode. VE2812AT Front Panel Auto LED HDMI LED VGA LED Source Switch Pushbutton... -
Page 23: Rs-232 Serial Transmission
0.3 seconds for three seconds. Note: 1. By default, the VE2812AT is set to Command mode. 2. The RS-232 status is kept even VE2812AT is powered on and off. For detailed LEDs behavior, see VE2812AT Top View, page 5. - Page 24 Chapter 3. Operation Type the corresponding command to execute a task. For example, to enable automatic switching, type swmode next and then press [Enter]. Command Task Control Input Port Enable automatic input switching swmode plugin auto Disable automatic input switching swmode plugin off Enable automatic plug-out switching swmode plugout prev...
-
Page 25: Long Reach Mode
HDBaseT Long Reach Mode Switch to ON at either the transmitter or the connected receiver. HDBaseT Long Reach Mode Switch VE2812AT Rear Panel Note: When Long Reach Mode is enabled, the VE2812AT will not be able to transmit 4K signals, in which case, the output display will be blank. - Page 26 Chapter 3. Operation This Page Intentionally Left Blank...
-
Page 27: Appendix
Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 28 Appendix If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
-
Page 29: Rack Mounting
VE2812AT User Manual Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack. -
Page 30: Technical Support
Support Documentation Software Updates Telephone Support 1-888-999-ATEN ext 4988 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase Your computer configuration, including operating system, revision level, expansion cards, and software ... -
Page 31: Specifications
HDCP Compatible Consumer Electronics Control (CEC) Max. Resolutions / HDMI: Distances Up to 4k @70m (Cat 5e/6) / 100m (Cat 6a/ATEN.2L- 2910 Cat6) Up to 1080p @100m (Cat 5e/6/6a) VGA: Up to 1920 x 1200 & 1600 x 1200 @70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat 6) ... - Page 32 Appendix Function VE2812AT RS-232 Connector 1 x Terminal Block, 3 Pole; Type: DTE Baud Rate 19200 Data Bits Stop Bits 1, no parity and flow control 1 x Mini Stereo Jack Female (Black) Switches Video Input Port 1 x Pushbutton - HDMI, VGA, and AUTO...
-
Page 33: Supported Vga Resolutions
VE2812AT User Manual Supported VGA Resolutions The VE2812ATsupports the following VGA resolutions: VGA Resolution Frame Rate (Hz) 640 x 480 640 x 480 800 x 600 800 x 600 1024 x 768 1024 x 768 1152 x 564 1152 x 564... -
Page 34: Limited Warranty
ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
