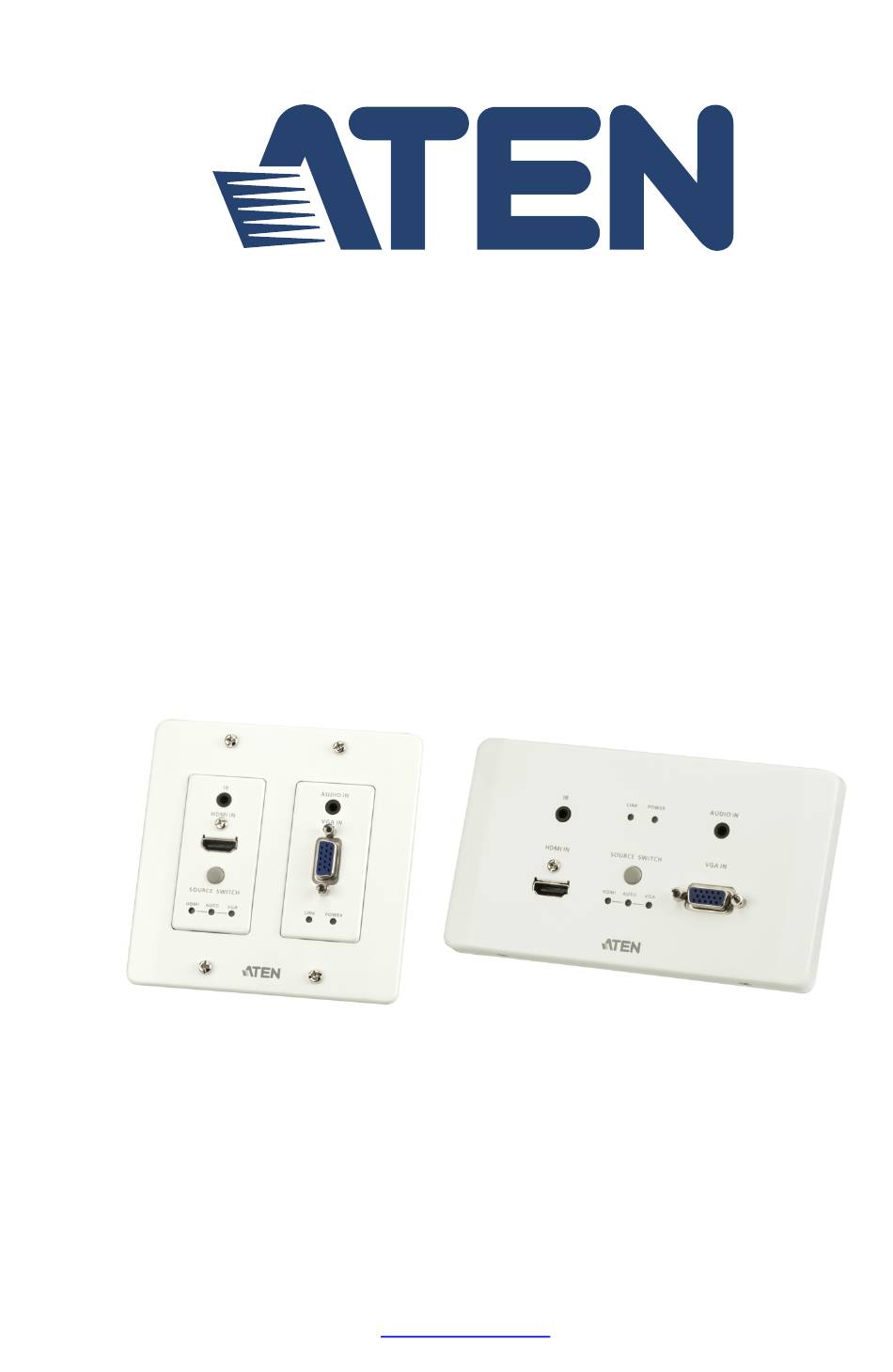

- Page 1 VE2812UST / VE2812EUT HDMI & VGA HDBaseT Transmitter with US / EU Wall Plate User Manual www.aten.com...
-
Page 2: Emc Information
VE2812UST / VE2812EUT User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: User Information
VE2812UST / VE2812EUT User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America... -
Page 4: Package Contents
VE2812UST / VE2812EUT User Manual Package Contents 1 VE2812UST / VE2812EUT HDMI & VGA HDBaseT Transmitter 1 3-Pin RS-232 Terminal Block 1 2-Pin Power Terminal Block 1 Mounting Kit (VE2812EUT only) 1 Faceplate (VE2812UST only) 1 Power Adapter 1 User Instructions Note: Make sure that all of the components are present and in good order. -
Page 5: Table Of Contents
VE2812EUT......... . . 9 VE2812UST Wall Mount ........10 VE2812EUT Wall Mount . - Page 6 VE2812UST / VE2812EUT User Manual RS-232 Commands........17 Long Reach Mode .
-
Page 7: About This Manual
VE2812UST / VE2812EUT User Manual About this Manual This user manual is provided to help you get the most from the VE2812UST / VE2812EUT unit. It covers all aspects of installation, configuration, and operation. An overview of the information found in the manual is provided below. -
Page 8: Conventions
VE2812UST / VE2812EUT User Manual Conventions This manual uses the following conventions: Indicates text that you should key in. Monospaced Indicates keys you should press. For example, [Enter] means to press the Enter key. If keys need to be chorded, they appear together in the same bracket with a plus sign between them: [Ctrl+Alt]. -
Page 9: Product Information
VE2812UST / VE2812EUT User Manual Product Information For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... - Page 10 VE2812UST / VE2812EUT User Manual This Page Intentionally Left Blank...
-
Page 11: Introduction
Overview ATEN VE2812UST / VE2812EUT is a video transmitter that can send VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L- 2910 Cat 6 cable. The VE2812UST / VE2812EUT guarantees reliable transmission of HDMI signals, supporting 3D, Deep Color, and embedded HD lossless audio formats. -
Page 12: Features
HDMI 4K up to 100 m via a Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable VGA 1600 x 1200 / 1920 x 1200 up to 100 m via a Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable Supports HDBaseT Long Reach Mode – extends signals up to 150 m, 1080p via a single Cat 5e/6 cable Supports Auto Switch –... -
Page 13: Planning The Installation
1 Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable Considerations To ensure video quality, ATEN recommends using a Cat 5e/6/6a cable. Note: ATEN recommends using the ATEN 2L-2910 Cat 6 cable for best results. The maximum transmission distance varies at different parts of the... -
Page 14: Components
VE2812UST / VE2812EUT User Manual VE901R Future ATEN HDBaseT receivers Components Front View Component Description IR Port Connects to an IR transmitter/receiver. HDMI In Connects to the HDMI Out port on the source device. Audio In Connects to the Audio Out port on the source device. -
Page 15: Side View 1
Chapter 1. Introduction Side View 1 No. Component Description Firmware Upgrade Switch This port is reserved for ATEN Technical Support. If you would like to do a firmware upgrade yourself, please contact your dealer. HDBaseT Long Reach Put the switch to ON to enable the Long Reach Mode Switch Mode. -
Page 16: Led Display
VE2812UST / VE2812EUT User Manual LED Display You can find the unit’s LEDs on the top and front panel as illustrated below. See the table below for details on LED indication. No. LED Indication Description Link LED Lights orange The transmission to the receiver is stable. -
Page 17: Hardware Setup
2. Do not power on the VE2812UST / VE2812EUT until all the necessary hardware is connected. Mounting the VE2812UST / VE2812EUT Unit VE2812UST / VE2812EUT is designed to be installed in a wall or ceiling. Site Preparation Choose a location where cables are free of interference and install the cables into the wall before installing the unit. -
Page 18: Ve2812Eut
VE2812UST / VE2812EUT User Manual VE2812EUT Depth (into the wall): 35.5mm Length x Width: 111mm x 52.5mm Drawing Screw Site Screw sites are required to secure the unit into the wall. There are regional template screw sites and the unit can use the sites easily. -
Page 19: Ve2812Ust
Chapter 2. Hardware Setup VE2812UST VE2812EUT... -
Page 20: Ve2812Ust Wall Mount
VE2812UST / VE2812EUT User Manual VE2812UST Wall Mount 1. Insert the VE2812UST to your installation site and secure it by tightening 4 screws to the screw holes as shown: Note: Screws stabilizing the unit to the site are not included in the package content The installation site can be a wall or ceiling. -
Page 21: Ve2812Eut Wall Mount
Chapter 2. Hardware Setup VE2812EUT Wall Mount 1. Secure the supplied mounting kit to your installation site by tightening 4 screws (EU type) or 2 screws (MK type) to the screw holes as shown: Note: Screws stabilizing the mounting kit are not included in the package content. -
Page 22: Connecting The Ve2812Ust / Ve2812Eut Unit
VE2812UST / VE2812EUT User Manual Connecting the VE2812UST / VE2812EUT Unit Follow the steps below to connect the VE2812UST / VE2812EUT to a source, a compatible ATEN Video Extender, and other controls as required. VE2812UST Top View Side View VE1812 Receiver... -
Page 23: Terminal Block Connection
Chapter 2. Hardware Setup Note: The RS-232 Serial Port is a terminal block connector. Please refer to Terminal Block Connection on page 13 for more details. 4. (Optional) Connect an IR transmitter/receiver to the IR port. 5. Connect power to the unit. Please refer to Power Supply Information on page 13 for more details. -
Page 24: Rs-232 Channel Transmission
(Rx) end of another unit. The RS-232 signals can be transmitted back the other way. You can set the VE2812UST / VE2812EUT to either bypass serial data or to receive RS-232 commands. By default, the VE2812UST / VE2812EUT is set to bypass serial data. -
Page 25: Operation
(automatic input switching) using an RS-232 command. For more details, see RS-232 Commands, page 17. HDMI The VE2812UST / VE2812EUT only transmits HDMI source to the connected receiver. (LED lights orange) The VE2812UST / VE2812EUT only transmits VGA source and its audio input to the connected receiver. -
Page 26: Input Selection Pushbutton
VE2812UST / VE2812EUT User Manual Input Selection Pushbutton Press the Input Switch Pushbutton located on the front panel to switch among the Auto Switch, HDMI, and VGA input mode. -
Page 27: Rs-232 Commands
Chapter 3. Operation RS-232 Commands You can change the input mode using RS-232 commands. Refer to the table below for a list of available tasks and the corresponding commands. Note: To switch to RS-232 mode, press the Input Switch pushbutton for 5 seconds. -
Page 28: Long Reach Mode
HDBaseT Long Reach Mode Switch to ON at either the transmitter or the connected receiver. Note: When Long Reach Mode is enabled, the VE2812UST / VE2812EUT will not be able to transmit 4K signals, in which case, the output display will... -
Page 29: Appendix
Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 30 VE2812UST / VE2812EUT User Manual extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes. To help protect your system from sudden, transient increases and decreases in electrical power, use a surge suppressor, line conditioner, or uninterruptible power supply (UPS).
-
Page 31: Technical Support
Support Documentation Software Updates Telephone Support 1-888-999-ATEN ext 4988 1-949-428-1111 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase Your computer configuration, including operating system, revision level, expansion cards, and software... -
Page 32: Specifications
Consumer Electronics Control (CEC) Max. Resolutions / HDMI: Distances Up to 4k @70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6) Up to 1080p @100m (Cat 5e/6/6a) VGA: Up to 1920 x 1200 & 1600 x 1200 @70m (Cat 5e/6) /... - Page 33 Appendix Function VE2812UST VE2812EUT Switches Video Input Port 1 x Pushbutton - HDMI, VGA, and AUTO Selection Long Reach Mode 1 Slide Switch - ON/OFF Switch Firmware Upgrade 1 Slide Switch - ON/OFF Power Connectors 1 x Terminal Block, 2 Pole Consumption DC 5V, 3.04W...
-
Page 34: Supported Vga Resolutions
VE2812UST / VE2812EUT User Manual Supported VGA Resolutions The VE2812UST / VE2812EUT supports the following VGA resolutions: VGA Resolution Frame Rate (Hz) 640 x 480 640 x 480 800 x 600 800 x 600 1024 x 768 1024 x 768... -
Page 35: Limited Warranty
ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product. -
Page 36: Template Printing
VE2812UST / VE2812EUT User Manual Template Printing Please use 1:1 ratios when printing. We also recommend using A4 sized paper or larger. After printing, please measure the print so that the labeled measurement is correct. - Page 37 VE2812UST Screw Sites Template 4.6cm 4.6cm 0.80cm...
- Page 38 VE2812EUT Screw Sites Template 1.1cm 6.0cm...
