VE1901AEUT / VE1901AUST User Manual Compliance Statements FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Page 3
VE1901AEUT / VE1901AUST User Manual Industry Canada Statement This Class A digital apparatus complies with Canadian ICES-003. RoHS This product is RoHS compliant.
Read this manual thoroughly and follow the installation and operation procedures carefully to prevent any damage to the unit or any connected devices. ATEN regularly updates its product documentation for new features and fixes. For an up-to-date VE1901AEUT / VE1901AUST documentation, visit...
VE1901AEUT / VE1901AUST User Manual Conventions This manual uses the following conventions: Indicates text that you should key in. Monospaced Indicates keys you should press. For example, [Enter] means to press the Enter key. If keys need to be chorded, they appear together in the same bracket with a plus sign between them: [Ctrl+Alt].
VE1901AEUT / VE1901AUST User Manual Package Contents VE1901AEUT 1 VE1901AEUT DisplayPort HDBaseT-Lite Transmitter with EU Wall Plate / PoH 1 5-pin terminal block 1 rubber pad set (4 pcs) 1 faceplate 2 pan head screws 4 PF screws 1 power adapter 1 user instructions* VE1901AUST 1 VE1901AUST DisplayPort HDBaseT-Lite Transmitter with US Wall Plate /...
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com...
VE1901AEUT / VE1901AUST User Manual User Notice All information, documentation, and specifications contained in this manual are subject to change without prior notification by the manufacturer. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties as to merchantability or fitness for any particular purpose.
Overview The ATEN VE1901AEUT / VE1901AUST DisplayPort HDBaseT-Lite transmitter delivers 4K signals up to 40 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable, ensuring users to stabilize DisplayPort signal transmission with support of Deep color and embedded HD lossless audio formats.
VE1901AEUT / VE1901AUST User Manual Features Extends DisplayPort signals with superior video quality over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable 4K up to 40 m 1080p up to 70 m Built-in PoH (Power over HDBaseT) function – the VE1901AEUT / VE1901AUST receives power supply from the HDBasT output port ...
1 DisplayPort source device 1 Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable Considerations To ensure video quality, ATEN recommends using a Cat 5e/6/6a cable. Note: ATEN recommends using the ATEN 2L-2910 Cat 6 cable for best results.

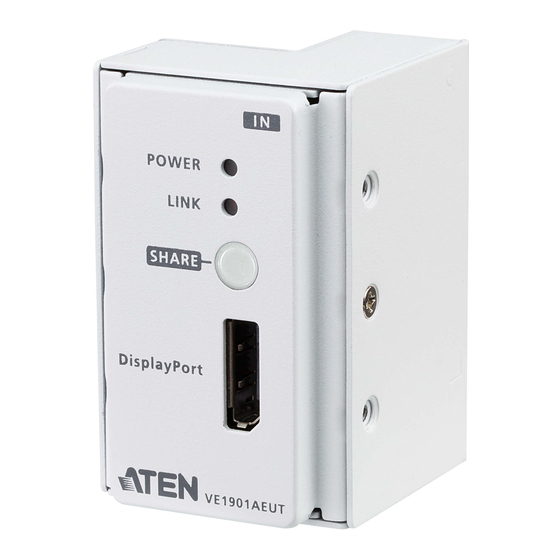

VE1901AEUT / VE1901AUST User Manual Components Front View VE1901AEUT VE1901AUST No. LED Indication Description power LED Lights green The unit is receiving power. link LED Lights orange The transmission to the receiver is stable. Blinks orange The transmission to the receiver is unstable. share pushbutton Press this pushbutton to share source with the VP1421 (example).
Support. If you would like to do a firmware upgrade yourself, please contact your dealer. firmware upgrade port This port is reserved for ATEN Technical Support. If you would like to do a firmware upgrade yourself, please contact your dealer.
Page 16
VE1901AEUT / VE1901AUST User Manual No. Component Description RS-232 terminal (Tx & Rx) Connects to the 5-pin terminal block for the following purposes. DO contact closure terminal For remotely control on the connected device (DO for share pushbutton) via RS-232 serial commands, connect the RS- +5V DC power-in terminal 232 main controller, such as a PC or a control (+5V)
Chapter 1. Introduction Top View VE1901AEUT VE1901AUST No. Component Description HDBaseT out port with Connects to the HDBaseT input port on a compatible PoH PD power receiving ATEN HDBaseT receiver via an RJ-45 cable.
Page 18
VE1901AEUT / VE1901AUST User Manual This Page Intentionally Left Blank...
Chapter 2 Hardware Setup 1. Please review the safety information regarding the placement of this device in Safety Instructions, page 19. 2. Do not power on the VE1901AEUT / VE1901AUST until all the necessary hardware is connected. Mounting the VE1901AEUT / VE1901AUST Unit VE1901AEUT / VE1901AUST is designed to be installed in a wall, ground, or a table.
VE1901AEUT / VE1901AUST User Manual VE1901AEUT Wall Mount 1. Secure the faceplate to the unit using the 4 PF screws provided. 2. Secure the unit to the installation site using the 2 pan head screws provided, and attach the rubber pads onto the pan head screws. This installation site can be a wall, ground, or table.
Chapter 2. Hardware Setup VE1901AUST Wall Mount 1. Secure the unit to a wall box or mud ring using the flat head screws provided. Note: The wall box and mud ring are not provided in the package. mud ring wall box 2.
VE1901AEUT / VE1901AUST User Manual Connecting the VE1901AEUT / VE1901AUST Unit Follow the steps below to connect the VE1901AEUT / VE1901AUST to a source, a compatible ATEN HDBaseT receiver, and other controls as required. VE1901AUST Front View Rear View Top View...
Chapter 2. Hardware Setup 4. Connect the DisplayPort output port on the VE901R to a display device using a DisplayPort cable. 5. (Optional) Connect the RS-232 interface of your computer or control system to the RS-232 and ground terminals on the unit using the 5-pin terminal block provided.
VE1901AEUT / VE1901AUST User Manual Power Supply Information (Optional) If you wish to use power adapter for power, follow the steps below. 1. Cut the connector end of the power adapter. 2. Strip 5 mm (0.5cm) off the insulation cover of the power adapter cable to expose two wires: a +5V wire and a GND (grounding) wire.
Chapter 2. Hardware Setup RS-232 Channel Transmission You can manage the connected devices via RS-232 serial devices, such as computers or bar code scanners. The RS-232 signal transmission flow can be illustrated as follows: Note: The unit used in the diagram below is VE1901AUST, the procedure for connecting VE1901AEUT is identical.
Page 26
VE1901AEUT / VE1901AUST User Manual This Page Intentionally Left Blank...
Chapter 3 Operation RS-232 Serial Transmission The RS-232 Serial Transmission allows you to bypass serial data to remotely control the device connected to the VE1901AEUT / VE1901AUST using serial commands. Bypass RS-232 serial data is bypassed from the controller PC or Pad to other connected devices.
VE1901AEUT / VE1901AUST User Manual Connecting the Unit with VP1421 To share source device to the VP1421, follow the steps below. For more information on how to connect the VP1421, see VP1421-VP1421 user manual. Note: The unit used in the diagram below is VE1901AUST, the procedure for connecting VE1901AEUT is identical.
Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result.
Page 30
VE1901AEUT / VE1901AUST User Manual If the following conditions occur, unplug the device from the wall outlet and bring it to qualified service personnel for repair. The power cord or plug has become damaged or frayed. Liquid has been spilled into the device. ...
Support Documentation Software Updates Telephone Support 1-888-999-ATEN ext 4988 1-949-428-1111 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase Your computer configuration, including operating system, revision level, expansion cards, and software ...
Page 33
Appendix Function VE1901AEUT VE1901AUST Environmental Operating Temperature 0 - 40°C Storage Temperature -20 - 60°C Humidity 0 x 80% RH, Non-Condensing Physical Properties Housing Metal Weight 0.20kg (0.44 lb) 0.21kg (0.46 lb) Dimensions (L x W x H) 6.86 x 4.44 x 5.00 cm 10.41 x 4.44 x 5.00 cm (2.7 x 1.75 x 1.97 in) (4.1 x 1.75 x 1.97 in)
Appendix Template Printing Please use 1:1 ratios when printing. We also recommend using A4 sized paper or larger. After printing, please measure the print so that the labeled measurement is correct.
