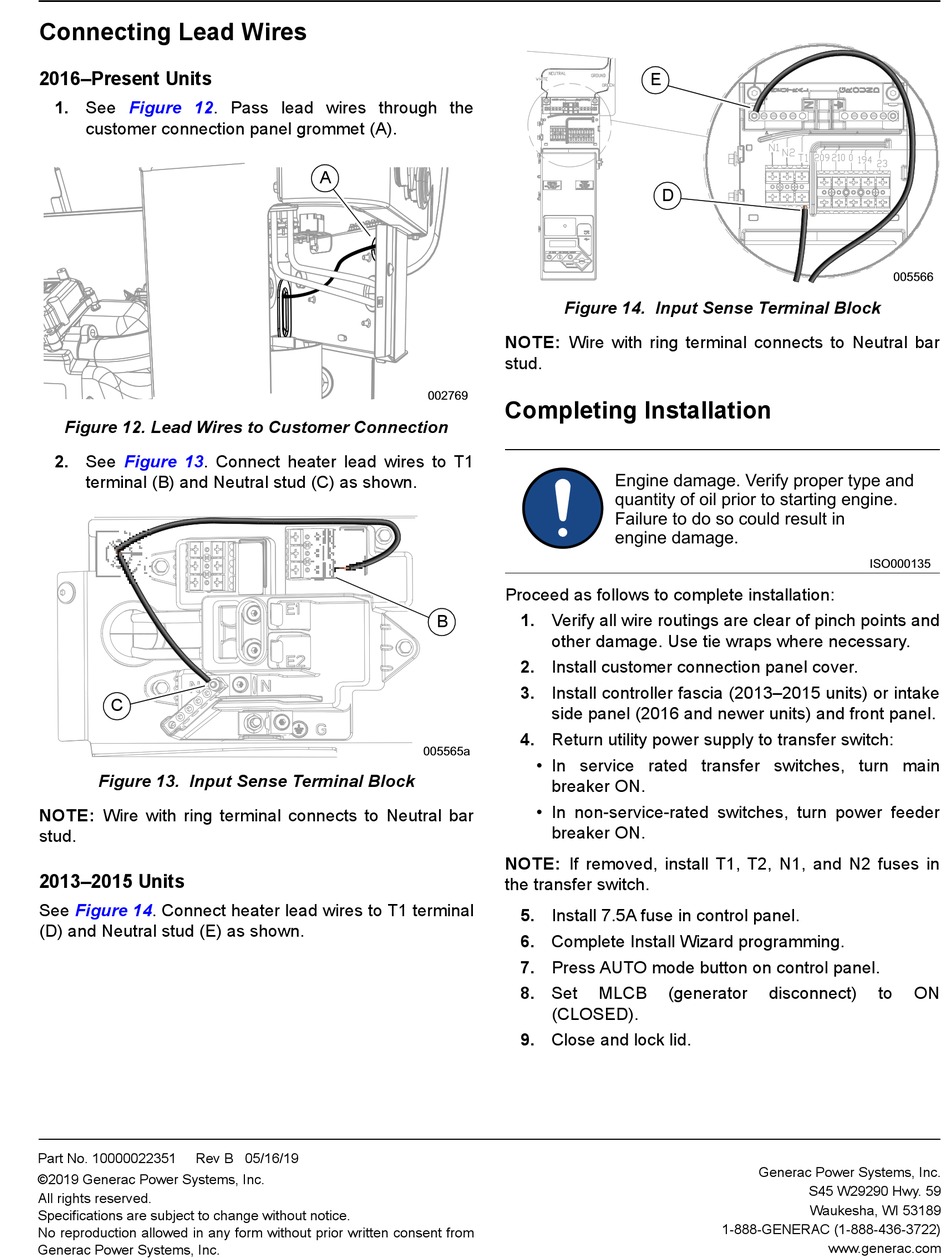

Connecting Lead Wires

2016–Present Units
1. See 12. Pass lead wires through the
Figure
customer connection panel grommet (A).
Figure 12. Lead Wires to Customer Connection
2. See 13. Connect heater lead wires to T1
Figure
terminal (B) and Neutral stud (C) as shown.
C
Figure 13. Input Sense Terminal Block
NOTE: Wire with ring terminal connects to Neutral bar
stud.
2013–2015 Units
See 14. Connect heater lead wires to T1 terminal
Figure
(D) and Neutral stud (E) as shown.
Part No. 10000022351 Rev B 05/16/19
©2019 Generac Power Systems, Inc.
All rights reserved.
Specifications are subject to change without notice.
No reproduction allowed in any form without prior written consent from
Generac Power Systems, Inc.
A
002769
B
005565a
E
D
Figure 14. Input Sense Terminal Block
NOTE: Wire with ring terminal connects to Neutral bar
stud.

Completing Installation

Engine damage. Verify proper type and
quantity of oil prior to starting engine.
Failure to do so could result in
engine damage.
Proceed as follows to complete installation:
1. Verify all wire routings are clear of pinch points and
other damage. Use tie wraps where necessary.
2. Install customer connection panel cover.
3. Install controller fascia (2013–2015 units) or intake
side panel (2016 and newer units) and front panel.
4. Return utility power supply to transfer switch:
• In service rated transfer switches, turn main
breaker ON.
• In non-service-rated switches, turn power feeder
breaker ON.
NOTE: If removed, install T1, T2, N1, and N2 fuses in
the transfer switch.
5. Install 7.5A fuse in control panel.
6. Complete Install Wizard programming.
7. Press AUTO mode button on control panel.
8. Set MLCB (generator
(CLOSED).
9. Close and lock lid.
005566
ISO000135
disconnect) to
Generac Power Systems, Inc.
S45 W29290 Hwy. 59
Waukesha, WI 53189
1-888-GENERAC (1-888-436-3722)
www.generac.com
ON
