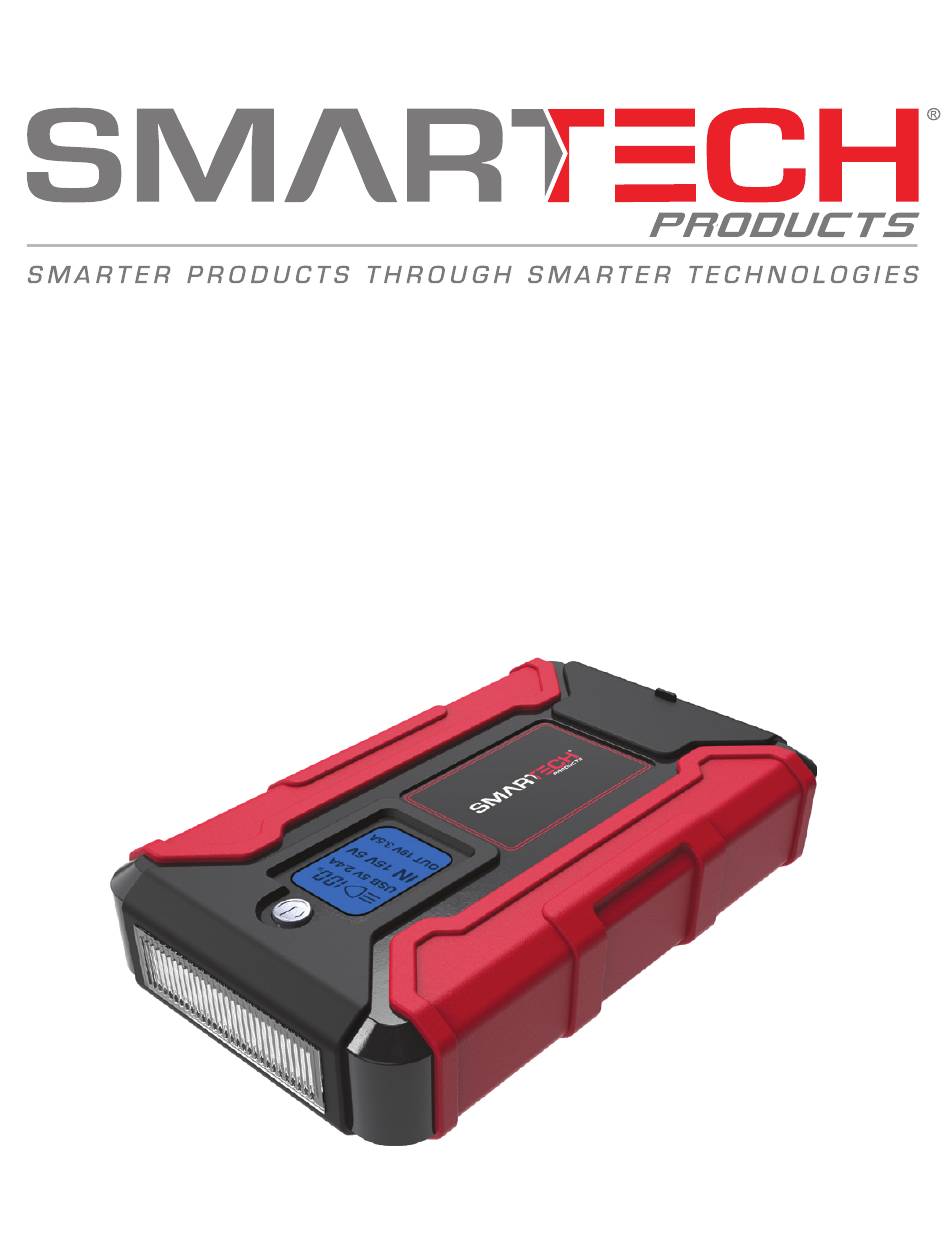

User Guide
Guía del usuario
Jump • Charge • Power

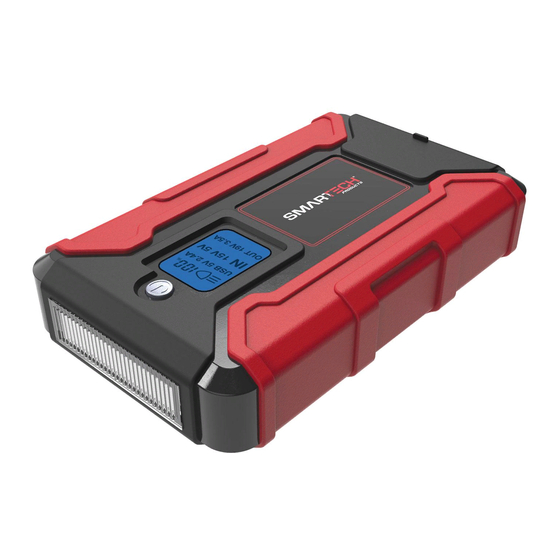

Jump Starter / Power Bank
Model/Modelo: JS-15000N
CRANKING CURRENT: 400 Amps
PEAK CURRENT: 800 Amps
OUTPUT: 2x5V/2.4A, 12V/10A, 19V/3.5A
BATTERY CAPACITY: 15000mAh/55.5Wh
FULLY CHARGE IMMEDIATELY AFTER PURCHASE.
Fully recharge after each jumpstarting, or every 3 months to ensure
long battery life.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Smartech JS-15000N
Summary of Contents for Smartech JS-15000N
- Page 1 User Guide Guía del usuario Jump • Charge • Power Jump Starter / Power Bank Model/Modelo: JS-15000N CRANKING CURRENT: 400 Amps PEAK CURRENT: 800 Amps OUTPUT: 2x5V/2.4A, 12V/10A, 19V/3.5A BATTERY CAPACITY: 15000mAh/55.5Wh FULLY CHARGE IMMEDIATELY AFTER PURCHASE. Fully recharge after each jumpstarting, or every 3 months to ensure...
- Page 2 Savage, MD 20763 (888) 288.5148 www.smartechproduct.com Copyright © 2018 by Smartech Products, Inc. Reproductions of this work, in whole or in part, without written permission of the publisher are strictly prohibited. The publisher does not assume and herby disclaims any liability to any party for any loss or damage caused by any error or omission in this manual, whether such error results from negligence, accident, or any other cause.
-
Page 3: Safety Information
10. When jump starting your vehicle do not place Jump Starter on the ground or at a height less than 18 inches. 11. Never charge or jump start a frozen battery. Store this item and charger in a cool dry place. JS-15000N USER GUIDE PAGE 3... - Page 4 State of California to cause cancer and birth defects or other reproductive harm (California law requires this warning to be given to customers in the State of California). Wash hands after handling. JS-15000N USER GUIDE PAGE 4...
-
Page 5: Included Accessories
Heat Protection. This product can instantly jump start most single battery vehicles, up to 70+ (over 70) times on a full charge. This product is also equipped with USB power output, LED flashlight, 12VDC power output and a 19V output for laptops. JS-15000N USER GUIDE PAGE 5... - Page 6 About the JS-15000N: 1) Flashlight 2) Battery Capacity 3) 5V/2.4A Output 4 & 7) 5V/2A Input 5 & 7) 15V/1A Input 2.4A 6) 19V/3.5A Output Built-In 8000mAh Lithium Ion Battery 15V 5V Battery Status / Power Button Output Display OUT 19V 3.5A...
-
Page 7: Technical Specification
Up to 6.0L Gas Engine, 5.0L Diesel Engine USB Output 5V/2.4A, 5V/2.4A LED Flashlight 12V Output 10A Max 19V Output 19V/3.5A for Laptops Operating Temperature -22°F - +122°F Charging Temperature 32°F - +104°F Storage Temperature -4°F - +95°F (For 3 months) JS-15000N USER GUIDE PAGE 7... - Page 8 Fast flash Fast buzzer are connected with each other. Reverse connection of Fast flash Fast buzzer clamps. Fast flash No buzzer Engine is started. Vehicle’s battery voltage Fast flash No buzzer is higher than Jump Starter’s. JS-15000N USER GUIDE PAGE 8...
-
Page 9: Connecting To The Battery
Connect the EC5 plug of jumper cables to the ENGINE START socket of jump starter. If the Green LED doesn’t turn on use BOOST. Refer to the “BOOST” OPERATION section. Try starting the vehicle (turn on the ignition switch). Most vehicles will JS-15000N USER GUIDE PAGE 9... - Page 10 Recharge the unit as soon as possible to be activated and fully charge it to ensure long battery life. In addi- tion, we recommend not to charge and discharge the unit at the same time. JS-15000N USER GUIDE PAGE 10...
-
Page 11: Usb Charging
The number of times you can recharge a USB device will vary between devices. FLASHLIGHT Press and hold Power button for 3 seconds to start flashlight. Press once to switch lighting modes: Steady On – Strobe – SOS – Off. JS-15000N USER GUIDE PAGE 11... - Page 12 Do not return the unit to the place of purchase. Contact Smartech Inc. Customer Service and Smartech Inc. will troubleshoot any issue via phone or e-mail. If the problem is not corrected by this method, Smartech Inc. will, at its option,...
- Page 13 SMARTECH INC. LIMITED WARRANTY (continued) component at a Smartech Inc. Service Center. Repairs or replacements without prior authorization, or at an unauthorized repair facility, will not be covered. Warranty Exclusions This warranty does not cover the following repairs and equipment:...
- Page 14 SMARTECH INC. LIMITED WARRANTY (continued) Limits of Implied Warranty and Consequential Damage Smartech Inc. disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental or consequential claim by anyonefrom using this product. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
- Page 15 JS-15000N USER GUIDE PAGE 15...
