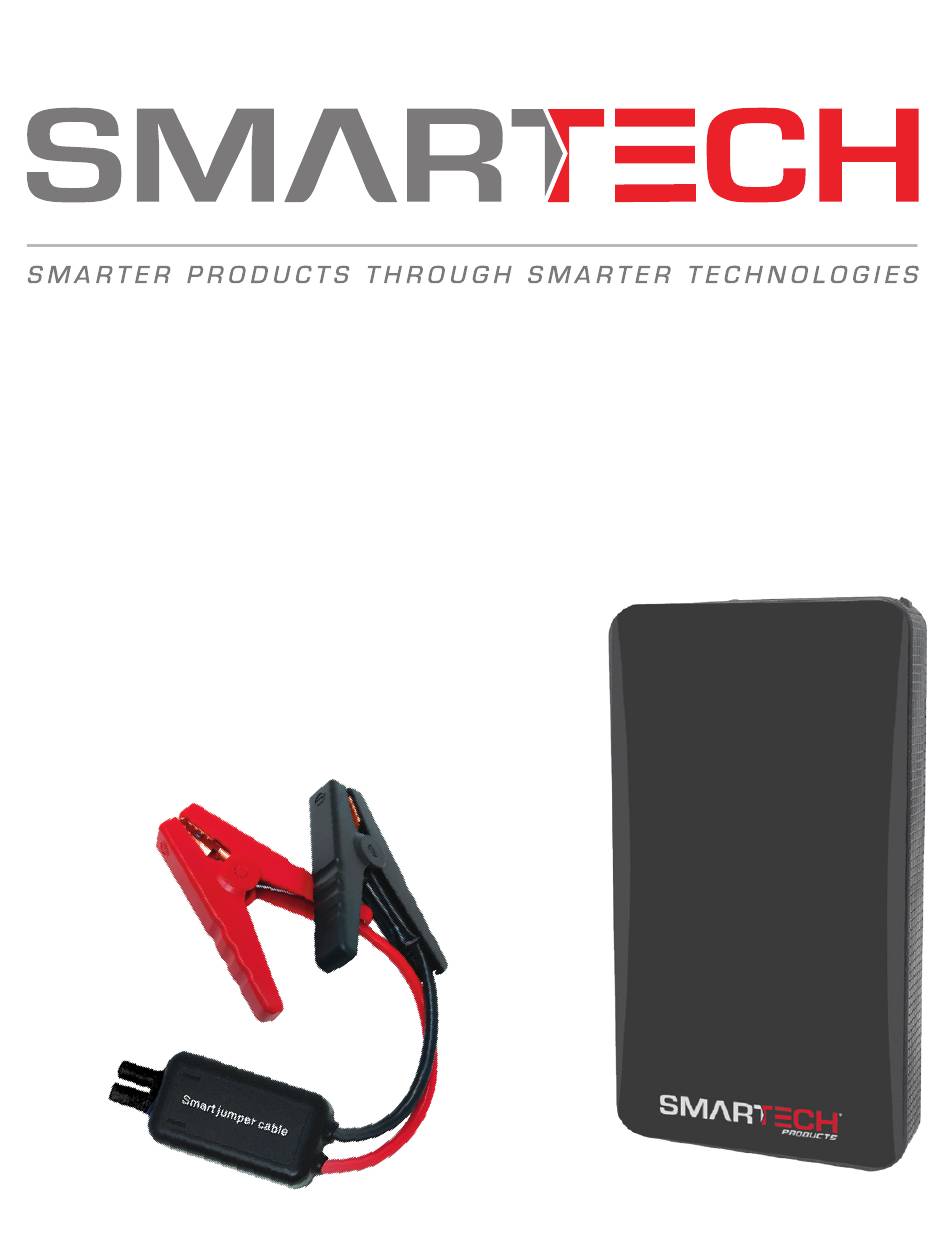

- Page 1 User Guide ILLUMINATE • POWER • JUMP Model: GSK-8000 Rechargeable Jump Starter / LED Flashlight / Portable Power Bank PEAK CURRENT: 650 Amps USB OUTPUT: 5V/2.1A BATTERY CAPACITY: 8000mAh...
- Page 2 To reduce risk of battery explosion, follow these instructions and those published by battery manufacturer and manufacturer of any equipment intended to be used in vicinity of battery. Review cautionary marking on these products and on engine. GSK-8000 USER GUIDE PAGE 2...
-
Page 3: Safety Information
10. When jump starting your vehicle do not place Jump Starter on the ground or at a height less than 18 inches. 11. Never charge or jump start a frozen battery. Store this item and charger in a cool dry place. GSK-8000 USER GUIDE PAGE 3... - Page 4 State of California to cause cancer and birth defects or other reproductive harm (California law requires this warning to be given to customers in the State of California). Wash hands after handling. GSK-8000 USER GUIDE PAGE 4...
- Page 5 ABOUT THE GSK-8000 Features a 3-mode rechargeable LED flashlight with 8000mAh power bank with 650 peak Amp jump starter function. The jump starter features: Spark Proof Protection, Reverse Polarity Pro- tection, Short Circut Protection, Over Current Protection, Over Discharge Protection, Over Charge Protection, Self Discharging Protection and Over Heat Protection.
- Page 6 ABOUT THE GSK-8000 GSK-8000 USER GUIDE PAGE 6...
-
Page 7: Technical Specifications
To check the battery level of the internal lithium battery press the Power/Mode Button. The blue battery power level indicators will show the internal battery level. See image below. Indicator Lights Flashing Flashing Solid Solid Solid Solid Battery 100% Capacity GSK-8000 USER GUIDE PAGE 7... - Page 8 Option 1: Wall Charging To charge the GSK-8000 internal battery, plug the Mini USB Charg- ing Cable into the Mini USB Port on the front of the GSK-8000. Plug the other end of the cable into a USB wall charger adaptor. Plug the wall charger adaptor into a wall outlet.
- Page 9 To charge the GSK-8000 from your car, plug the Mini USB Charging Cable into the Mini USB Port on the front of the GSK-8000. Plug the other end of the cable into a 12V to USB car adaptor. Plug the USB adaptor into the car cigarette lighter socket power outlet.
-
Page 10: Using The Led Flashlight
USING THE LED FLASHLIGHT The GSK-8000 has 3 light modes. Bright Strobe S.O.S To turn on the flashlight, press the power button for 3 seconds. Press the power button repeatedly to cycle through the Bright/ Strobe/S.O.S./Off modes. ABOUT THE SMART JUMPER CABLES... -
Page 11: Jump-Starting Procedure
This unit is only for emergency use, not for frequent commercial use! The ENGINE START socket is ALWAYS activated! Do not attempt to jumpstart your vehicle when the GSK-8000 Power Bank battery capacity is below 30%. Turn off the vehicle ignition and all accessories (radios, lights, air conditioners, etc.), and disconnect electronic devices. - Page 12 5 seconds of engine cranking. The jumpstart feature is designed for short term operation only, and more than 5 seconds may cause damage to the unit. Allow the GSK-8000 to cool down for at least 3 minutes after each jumpstarting.
- Page 13 POWER / CHARGE USB DEVICES To power or charge your USB devices, connect the USB device to the USB port on the front of the GSK-8000. The number of times you can recharge a USB device will vary between devices.
-
Page 14: California Proposition
Crystalline silica from bricks and cement and other masonry products • Arsenic and chromium from chemically treated lumber. Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce your exposure, work GSK-8000 USER GUIDE PAGE 14... - Page 15 Contact Smartech Inc. Customer Service and Smartech Inc. will troubleshoot any issue via phone or e-mail. If the problem is not corrected by this method, Smartech Inc. will, at its option, authorize evaluation, repair or replacement of the defective part or component at a Smartech Inc.
- Page 16 Problems caused by parts that are not original parts. Limits of Implied Warranty and Consequential Damage Smartech Inc. disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental or consequential claim by anyonefrom using this product. THIS WARRANTY IS IN...
- Page 17 Published by: Smartech Inc. Copyright © 2020 by Smartech Inc. Reproductions of this work, in whole or in part, without written permission of the publisher are strictly prohibited. The publisher does not assume and herby disclaims any liability to any party for any loss or damage caused by any error or omission in this manual, whether such error results from negligence, accident, or any other cause.
