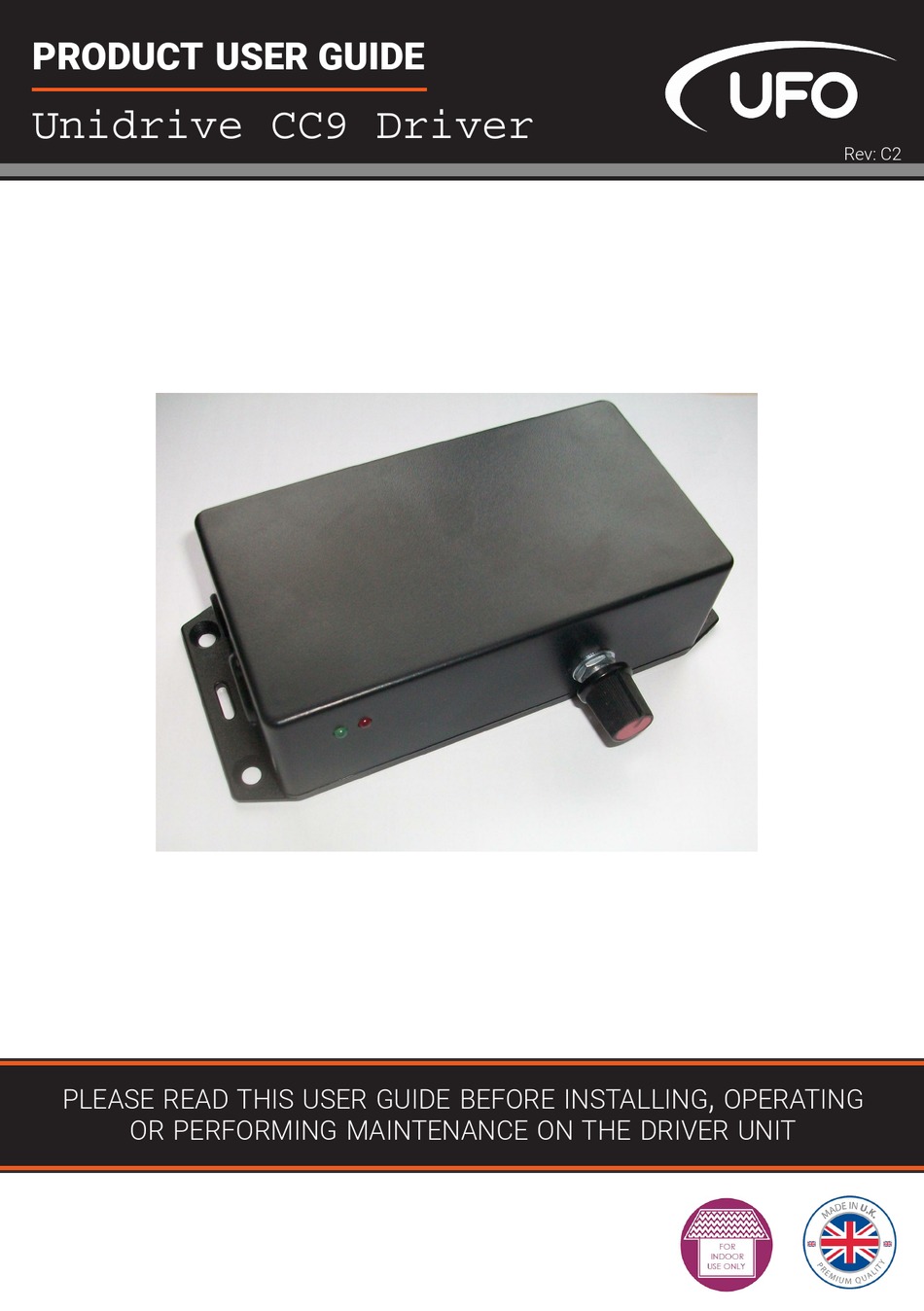

  • Page 1 PRODUCT USER GUIDE Unidrive CC9 Driver Rev: C2 PLEASE READ THIS USER GUIDE BEFORE INSTALLING OPERATING OR PERFORMING MAINTENANCE ON THE DRIVER UNIT...

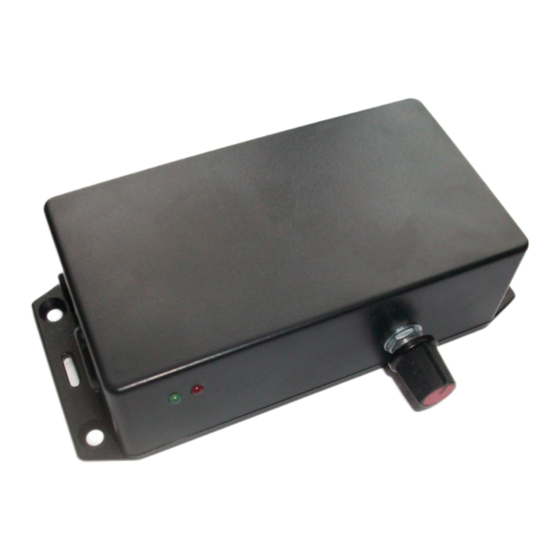

  • Page 2 The CC9 is a compact 350mA output constant current multi-function driver designed to drive UFO constant current LED fittings up to 16W. Constant voltage LEDs cannot be connected to this driver. Please refer to the specific section within this manual for wiring/connection guidance.

  • Page 3: Output Capacity

    3.2V DC and provide a 1.1 Watt output. The UFO Unidrive CC9 driver has a low voltage DC input. Therefore the PSU used to supply the CC9 is selected based upon the total number of fittings the CC9 will be driving.

  • Page 4: Functional Information

    FUNCTIONAL INFORMATION Device Function Power input jack socket (2.5mm centre positive). DC input voltage 12V to 48V dependent on number of LED fittings connected DMX input/output screw terminals. Data positive, data negative and ground. Occupies two DMX channels – Channel 1 ­ LED dimming, Channel 2 LED ON/OFF. Use for DMX control or Master Slave link to other CC9 drivers Function LED –...

  • Page 5: Typical Wiring Connections

    BEFORE setting up the driver and connecting the driver PSU to the mains supply – see drawing above and set up instructions below. Never hot swap LED fittings. When adding or removing LED fittings always power down the system first. UFO LIGHTING...

  • Page 6: Driver Setup

    For manual dimming using an electronic potentiometer, the current sink screw terminal link must first be removed – and a potentiometer connected, in its place. Only compatible electronic potentiometers recommended by UFO are to be used. DIP SWITCH 1-9 OFF...

  • Page 7: Sensor Input

    REMOVE CURRENT SINK LINKS (G) CONNECT SENSOR TO N/C TERMINALS (M) NOTE Where a movement sensor is used to trigger the input, the DELAY and FADE OUT timers will not run to completion until all movement has ceased. UFO LIGHTING...

  • Page 8: Dmx Channel Table

    INFORMATION TABLES DMX CHANNEL TABLE Channel Function Value LED Output Dimming 0­255 ­ No light to maximum light ouput LED Output On 0­250 LED Output Off 251­255 0-10 V CHANNEL TABLE Value ­DC Description Volts 0 ­ 0.47 LED Output Off 0.48 LED Output Minimum Illumination LED Output Maximum Illumination SENSOR TABLE Trimmer...

  • Page 9: Dmx Address

    93 125 157 189 221 253 285 317 349 381 413 445 477 509 94 126 158 190 222 254 286 318 350 382 414 446 478 510 95 127 159 191 223 255 287 319 351 383 415 447 479 511 Switches S1 to S5 DMX Address UFO LIGHTING...

  • Page 10: Troubleshooting

    TROUBLESHOOTING Problem Probable Causes Remedy Mains supply off Check supply and reinstate Loose mains plugs Check plugs [GENERAL] Check all connections Loose DC output wire or System is dead ­ power LED (D) not lit connection No light output from LED PSU failed - check output with Replace PSU Driver PCB failure...
  • Page 11 Check all connections and output [N/O or N/C SENSOR OPERATION] of sensor using DVM Power LED (D) lit ­ function LED (C) not lit. Output LED devices not illuminated Sensor wired to wrong input Check input connections and rewire and not responding to sensor UFO LIGHTING...
  • Page 12 TROUBLESHOOTING Problem Probable Causes Remedy Short circuit between LED output Check for short circuit on output [SHORT CIRCUIT] and GND cables using a DVM. Repair or Output LED devices go out and power replace faulty cables or devices. LED (D) flashes rapidly System overloaded beyond 30W Reduce load by removing some [OVER CURRENT]...

  • Page 13: Technical Specifications

    TECHNICAL SPECIFICATIONS Product Name UFO Unidrive CC9 DR­CC­48­16­D­CU ­ driver with single integral dimming potentiometer UFO Product Code DR­CC­DC­48­16­ALL­CU ­ driver with fully functional manual / dmx / 0­10V / sensor control Description 16W fully functional dimmable constant current driver Input Power 12­48V DC...
  • Page 14 NOTES UNIDRIVE CC 9 USER GUIDE...
  • Page 15 NOTES UFO LIGHTING...
  • Page 16 INSTALL United Kingdom • United States • Germany • Europe • Universal Fibre Optics Ltd Universal Fiber Optics USA LLC UFO Licht GmbH Home Place Coldstream 1749 Northgate Blvd Friendsfactory AG Gutenbergstraße 1 TD12 4DT Sarasota FL34234 85737 Munchen Deutschland...
