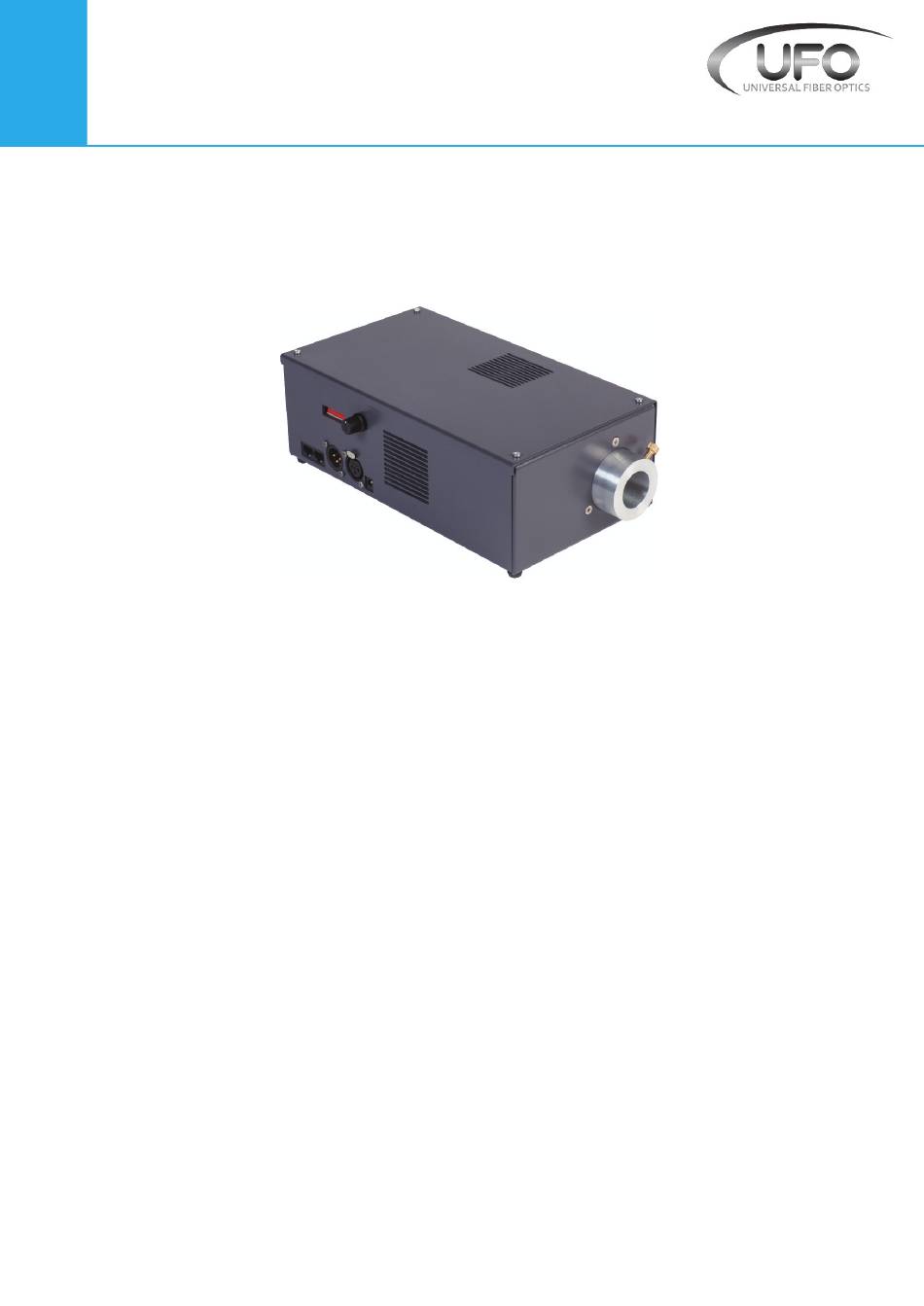

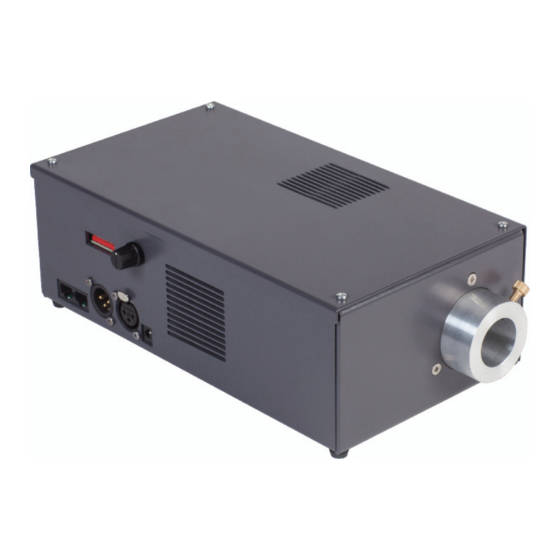

- Page 1 Illuminator User Guide Sirius Illuminator Range Models covered by this manual: UFOSIRCW | UFOSIRCW-C | UFOSIRCW-T | UFOSIRCW-Cs | UFOSIRCW-Ts UFOSIRSW | UFOSIRSW-C | UFOSIRSW-T | UFOSIRSW-Cs | UFOSIRSW-Cs UFOSIRNW | UFOSIRNW-C | UFOSIRNW-T | UFOSIRNW-Cs | UFOSIRNW-Ts UFOSIRWW | UFOSIRWW-C | UFOSIRWW-T| UFOSIRWW-Cs | UFOSIRWW-Cs Please read this manual fully before installing, operating or performing maintenance on the illuminator unit.
- Page 2 Please read these instructions fully before connecting your unit to the electrical supply, and keep them for future reference. The UFO Sirius range of illuminators are suitable for use with either glass or PMMA fiber-optic harnesses. The Sirius is powered by a 100-240 VAC remote desktop power supply unit.
-
Page 3: Model Types
MODEL TYPES The Sirius LED illuminator incorporates a range of LED arrays focussed through a series of static lenses to provide optimum display and illumination within the following optical range. Model Description CRI Color Temperature Lumen Output SIRCW Cool White 5500K 5700 SIRSW... -
Page 4: Construction Details
CONSTRUCTION DETAILS Model Description UFOSIRCW White light LED - cool white output - manual, DMX or 0-10V dimming UFOSIRSW White light LED - studio white output - manual, DMX or 0-10V dimming UFOSIRNW White light LED - neutral white output - manual, DMX or 0-10V dimming UFOSIRWW White light LED - warm white output - manual, DMX or 0-10V dimming UFOSIRGW... -
Page 5: Power Supply Requirements
POWER SUPPLY REQUIREMENTS The LED Light source is powered from a multifunction, multi-voltage, desk top Power Supply Unit. Remove the 24V Desk Top PSU from its box. This PSU is an IEC input device catering for UK, European and USA mains supplies using the relevant power cord. - Page 6 GENERAL The SIRIUS is a 90W White Light LED Light source with optional decorative wheel capability. The SIRIUS LED Light source driver PCB has all the control functionality fitted as standard. The following control functionality is available (see following image) and configurations are available. 1.
- Page 7 DIP Switch 10 ON (down) for manual or 0-10V DMX ADDRESS AND MANUAL MOTOR MANUAL DIP SWITCH DIP Switch 10 OFF (up) for CONTROL DMX operation MANUAL DIMMING 24V DC INPUT 0-10V 0-10V MOTOR DIMMING CONTROL Universal Fiber Optic Lighting...
- Page 8 CONNECTION – MANUAL OPERATION There are 2 connections required – the fiber port and the mains supply cable. The fiber port should be connected first. Connect and secure the fiber optic connector into the green collar and secure using the M5 locking screw. Connect the IEC power cord into the Desk Top PSU and plug the mains plug into the electrical supply socket.
-
Page 9: Manual Operation
MANUAL OPERATION Switch Position Speed (RPM) Stop NORMAL MANUAL OPERATION – DECORATIVE COLOR WHEEL CONTROL WITH SENSOR For normal manual operation DIP switch 10 must be ON During normal manual decorative operation the Illuminator can be dimmed from 0 to 100% using the Manual Dimming Control and the motor can be controlled from stop to 4 speeds (see table below) using the push button Manual Motor Control on the side panel. - Page 10 CONNECTION – 0-10V OPERATION There are 3 connections required – the fiber port, the mains supply cable and the 0-10V cable. The fiber port should be connected first. Connect and secure the fiber optic connector into the aluminium collar and secure using the M5 locking screw.
- Page 11 0-10V OPERATION - STANDARD WHITE LIGHT DIMMING For 0-10v dimming operation DIP switch 10 must be ON, the Manual Dimming Control on the side panel must be turned to minimum (fully counter clockwise), and the RJ45 plug must be plugged into the right hand RJ45 socket on the side panel.
- Page 12 0-10V OPERATION – DECORATIVE COLOR/TWINKLE WHEEL CONTROL SENSOR For 0-10v wheel control DIP switch 10 must be ON, and the RJ45 plug must be plugged into the left hand RJ45 socket on the side panel. The Illuminator decorative wheel can be controlled with a receiving 0-10V signal as detailed in the following table.
- Page 13 0-10V OPERATION – DECORATIVE TWINKLE WHEEL CONTROL SENSOR For 0-10v wheel control DIP switch 10 must be ON, and the RJ45 plug must be plugged into the left hand RJ45 socket on the side panel. NOTE: for this configuration of a twinkle wheel with sensor, the wheel is supplied with a cut out segment The Illuminator decorative twinkle wheel can be controlled with a receiving 0-10V signal to give stop (0V DC) to varying speeds (0.5 to 10V DC) ranging...
- Page 14 CONNECTION – DMX OPERATION There are 3 connections required – the fiber port, the mains supply cable and the DMX cables. The fiber port should be connected first. Connect and secure the fiber optic connector into the aluminium collar and secure using the M5 locking screw.
-
Page 15: Dmx Channels
DMX CHANNELS Each Sirius occupies 3 DMX channels as detailed in the following tables. When selecting DMX addresses 3 channels must be available, for example if the first Sirius is addressed to 009, the next must be 012, the next must be 015 and so SETTING THE DMX ADDRESS The DMX address of each illuminator is set manually using the DIP switch accessible on the side panel as shown below. - Page 16 DMX OPERATION - DECORATIVE COLOR/TWINKLE WHEEL CONTROL NO SENSOR NOTE: for this configuration of a twinkle wheel without sensor, the wheel is solid without a cut out segment. For DMX wheel control DIP switch 10 must be OFF and the XLR plug(s) must be plugged into the XLR sockets on the side panel.
- Page 17 DMX OPERATION – DECORATIVE COLOR WHEEL CONTROL SENSOR For DMX wheel control DIP switch 10 must be OFF and the XLR plug(s) must be plugged into the XLR sockets on the side panel. The Illuminator decorative wheel can be controlled on DMX channel 2 as shown in the following DMX table.
- Page 18 DECORATIVE WHEELS The following decorative wheels are available. Color Wheel The standard decorative color wheel has 6 glass segments as follows:- White (Clear), Yellow, Green, Orange, Magenta, Blue Alternatively, a 6 segment or 4 segment vari-color wheel can be fitted providing the following color segment options:- Orange Golden Amber...
- Page 19 DMX OPERATION – DECORATIVE TWINKLE WHEEL CONTROL SENSOR For DMX wheel control DIP switch 10 must be OFF and the XLR plug(s) must be plugged into the XLR sockets on the side panel. The Illuminator decorative wheel can be controlled on DMX channel 2 as shown in the following DMX table.
-
Page 20: Maintenance
MAINTENANCE Please Note that a record of all maintenance MUST be kept in the table below, indicating what maintenance was undertaken and when. This MUST be dated for warranty purposes. Date Maintenance Undertaken Sirius Illuminator Range... -
Page 21: Troubleshooting
TROUBLESHOOTING Problem Possible causes Remedy Mains supply off Check supply and reinstate Unit is dead - no Loose mains plug Check plugs light output and PSU power indicator Plug blown fuse (UK) Check fuse & replace if necessary is out PSU failed Replace PSU Dimming control at minimum... - Page 22 TECHNICAL SPECIFICATIONS Description Details Port connector size 30mm Diameter Fiber type Glass/PMMA Mains supply voltage 100-240V AC, 47-63 Hz. 0.58A PSU output 24V DC, 3.75A, 90W Maximum LED type LED engine LZP 24 die emitter LED power Mains running current 400mA Max.
- Page 23 NOTES Universal Fiber Optic Lighting...
- Page 24 Universal Fiber Optic Lighting LLC 6119A Clark Center Avenue | Sarasota | FL34238 Tel: +941-343-8115 www.fiberopticlighting.com...
