GEMÜ 1205

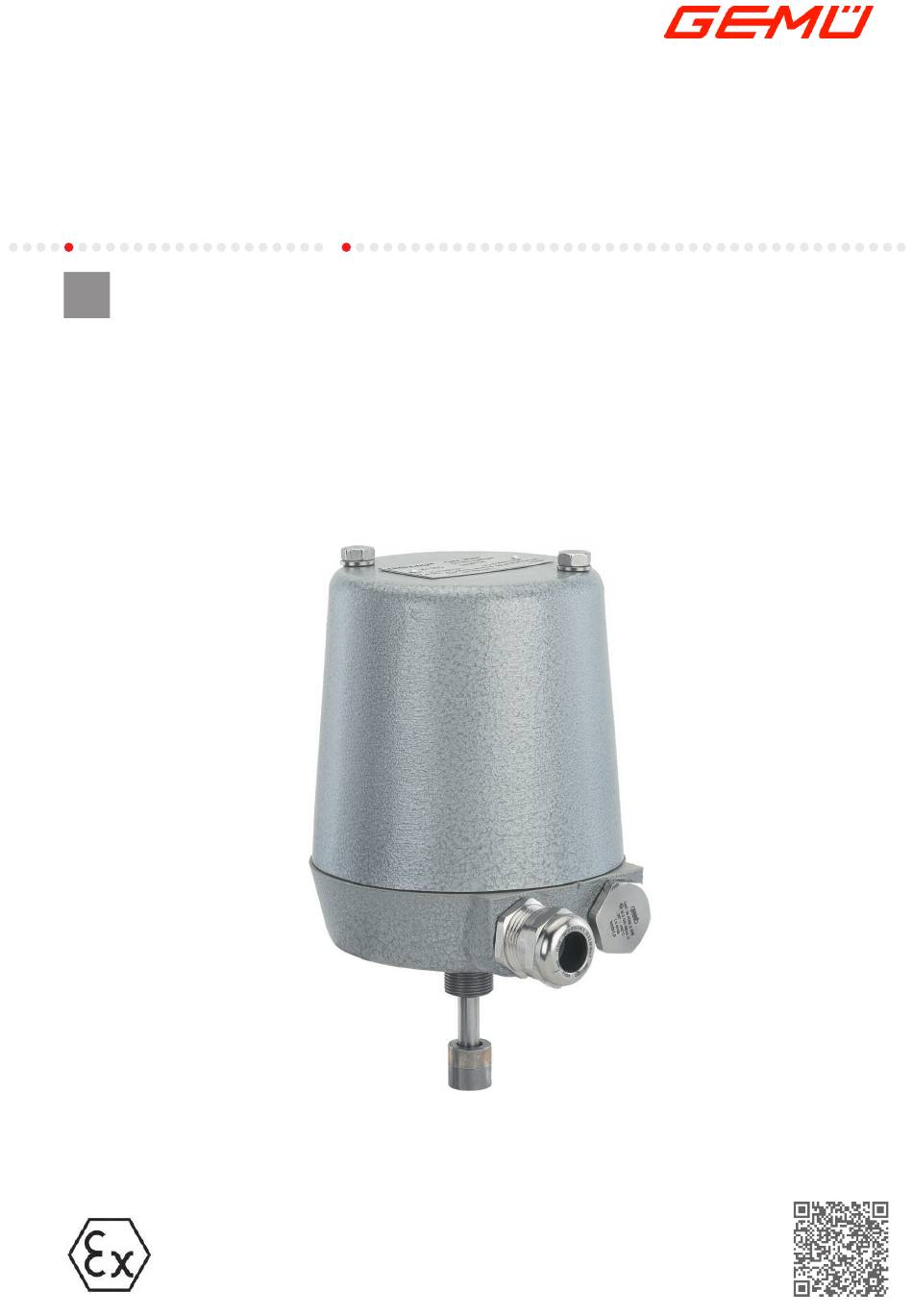

Electrical position indicator ATEX
Operating instructions
EN
further information
webcode: GW-1205

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1205 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GEM 1205

  • Page 1 GEMÜ 1205 Electrical position indicator ATEX Operating instructions further information webcode: GW-1205...
  • Page 2 All rights including copyrights or industrial property rights are expressly reserved. Keep the document for future reference. © GEMÜ Gebr. Müller Apparatebau GmbH & Co. KG 16.03.2023 GEMÜ 1205 2 / 20 www.gemu-group.com...
  • Page 3: Table Of Contents

    Setting the limit switches ......12.3 Cleaning the product ........13 Disassembly ............14 Disposal .............. 15 Returns ..............16 EU Declaration of Conformity in accordance with 2014/34/EU (ATEX) ..........17 EU type examination certificate ......www.gemu-group.com 3 / 20 GEMÜ 1205...
  • Page 4: General Information

    6. Define the areas of responsibility. CAUTION 7. Observe the safety data sheets. Potentially dangerous situation! 8. Observe the safety regulations for the media used. ▶ Non-observance can cause moderate to light injury. GEMÜ 1205 4 / 20 www.gemu-group.com...
  • Page 5: Product Description

    Traceability number Serial number turer first. The month of manufacture is encoded in the traceability num- ber and can be obtained from GEMÜ. The product was manu- In cases of uncertainty: factured in Germany. 15. Consult the nearest GEMÜ sales office.
  • Page 6: Correct Use

    The GEMÜ 1205 electrical position indicator is designed for use in potentially explosive atmospheres of zones 1 and 2 with gases, mists or vapours and zones 21 and 22 with flam- mable dusts.
  • Page 7: Order Data

    The order data provide an overview of standard configurations. Please check the availability before ordering. Other configurations available on request. Note: Mounting kit 1205 S01 Z...AT dependent on valve type. Please order separately specifying valve type, DN, control function and actuator size.
  • Page 8: Technical Data

    1 x available (Type Bartec 03-6020-0016) type: 1 x prepared (blanking cover) Cable diameter: 7 to 13 mm Terminal diameter: 2.5 mm² Earth terminal: 4.0 mm² Potential equalisation: Stranded wire, yellow/green, H 07 V-K 4.0 Tightening torque 10 Nm GEMÜ 1205 8 / 20 www.gemu-group.com...
  • Page 9: Dimensions

    7 Dimensions 7 Dimensions 55,0 M4 x 6 Ø100,0 20,0 20,0 Dimensions in mm www.gemu-group.com 9 / 20 GEMÜ 1205...
  • Page 10: Manufacturer's Information

    ▶ Destruction of the electrical position indicator when dis- 4. Do not store solvents, chemicals, acids, fuels or similar assembling the valve body fluids in the same room as GEMÜ products and their spare Disassemble the electrical position indicator before dis- parts.
  • Page 11: Information On Use In Damp Conditions

    3. Screw in guide piece 3 using the wrench surface. 1. Screw in adapter 2 using wrench surface 1. 4. Mounting kit 1 is correctly assembled. 2. Screw in guide piece 3 using the wrench surface. www.gemu-group.com 11 / 20 GEMÜ 1205...
  • Page 12: Assembly And Installation Of The Electrical Position Indicator

    2 (taking care that the trip cams do 3. Remove cover 2. not damage the switches! 6. Turn the electrical position indicator into the desired connection direction and fix the position with grub screw 1. GEMÜ 1205 12 / 20 www.gemu-group.com...
  • Page 13 28. Use a screw M4x6 to attach the potential equalization device to the electrical position indicator. ð Potential equalization for metal housings in potentially explosive areas: Minimum 4 mm². 29. Secure the connection against working itself loose. www.gemu-group.com 13 / 20 GEMÜ 1205...
  • Page 14: Electrical Connection

    10 Electrical connection 10 Electrical connection 10.1 Terminals, microswitch (code 104) On-site wiring On-site wiring Limit switch CLOSED Limit switch OPEN GEMÜ 1205 14 / 20 www.gemu-group.com...
  • Page 15: Troubleshooting

    Voltage is not con- Connect voltage No spare parts are available for this product. If it is faulty, nected please return it to GEMÜ for repair. Cover cannot be at- Sealing ring inser- Insert sealing ring 12.2 Setting the limit switches...
  • Page 16 15 Returns no return delivery note is included with the product, GEMÜ cannot process credits or repair work but will dispose of the goods at the operator's expense. 1. Clean the product. 2. Request a return delivery note from GEMÜ.
  • Page 17: Eu Declaration Of Conformity In Accordance With 2014/34/Eu (Atex)

    Description of the product: Electrical position indicator GEMÜ 1205 Marking - 1205 000 Z AL A00 03 00 M2 M2 X - 1205 000 Z AL A01 03 00 M2 M2 X - 1205 000 Z AL A02 03 00 M2 M2 X EC type examination certificate IBExU18ATEX1008.
  • Page 18: Eu Type Examination Certificate

    17 EU type examination certificate 17 EU type examination certificate GEMÜ 1205 18 / 20 www.gemu-group.com...
  • Page 19 17 EU type examination certificate www.gemu-group.com 19 / 20 GEMÜ 1205...
  • Page 20 GEMÜ Gebr. Müller Apparatebau GmbH & Co. KG Fritz-Müller-Straße 6-8, 74653 Ingelfingen-Criesbach, Germany Subject to alteration Phone +49 (0) 7940 1230 · info@gemue.de www.gemu-group.com 03.2023 | 88593512...
