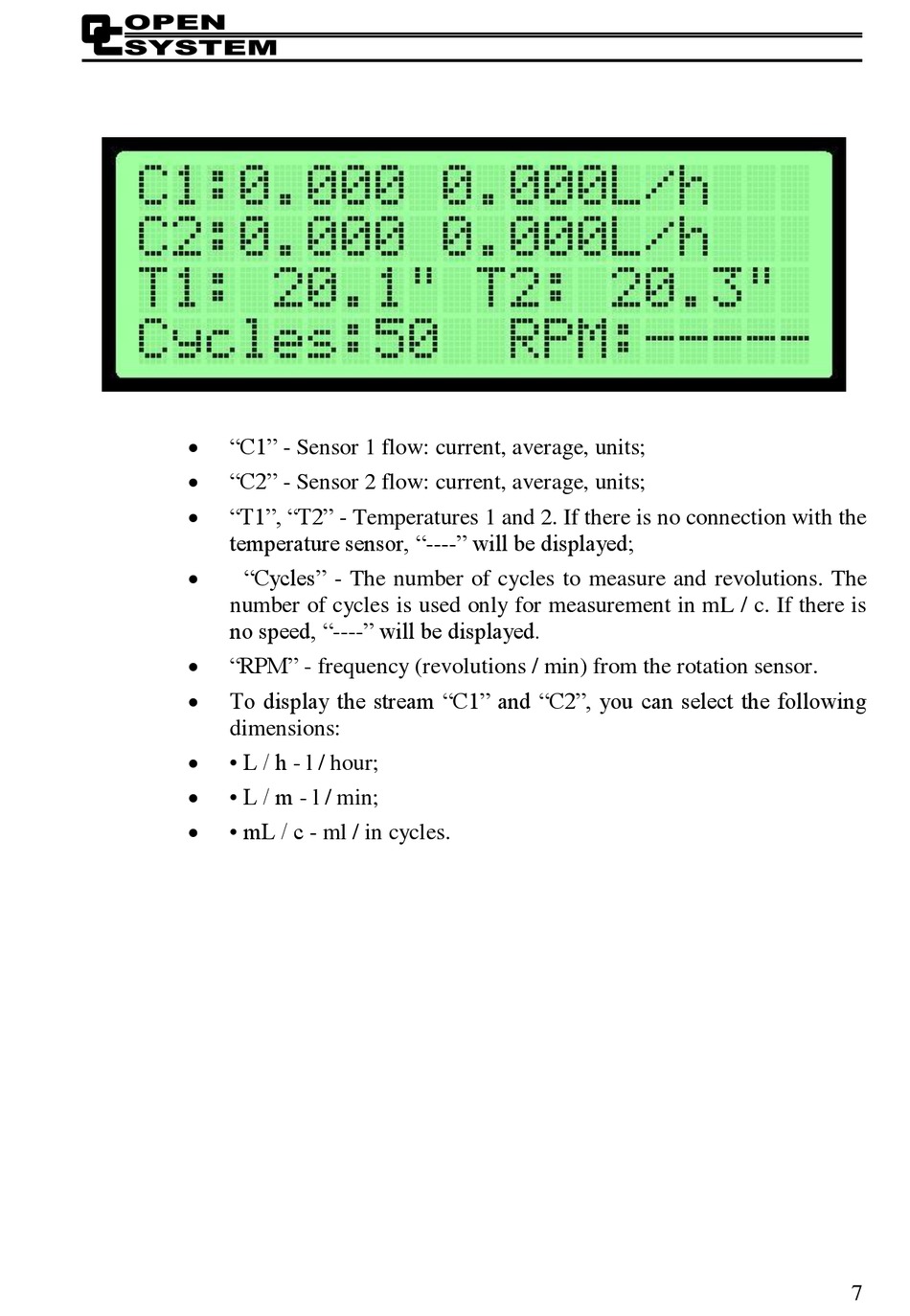

Open System CPFM-Tester User Manual page 7


"C1" - Sensor 1 flow: current, average, units;

"C2" - Sensor 2 flow: current, average, units;

"T1", "T2" - Temperatures 1 and 2. If there is no connection with the
temperature sensor, "----" will be displayed;

"Cycles" - The number of cycles to measure and revolutions. The
number of cycles is used only for measurement in mL / c. If there is
no speed, "----" will be displayed.

"RPM" - frequency (revolutions / min) from the rotation sensor.

To display the stream "C1" and "C2", you can select the following
dimensions:

• L / h - l / hour;

• L / m - l / min;

• mL / c - ml / in cycles.
7
