Summary of Contents for Reely Nanocam RtF

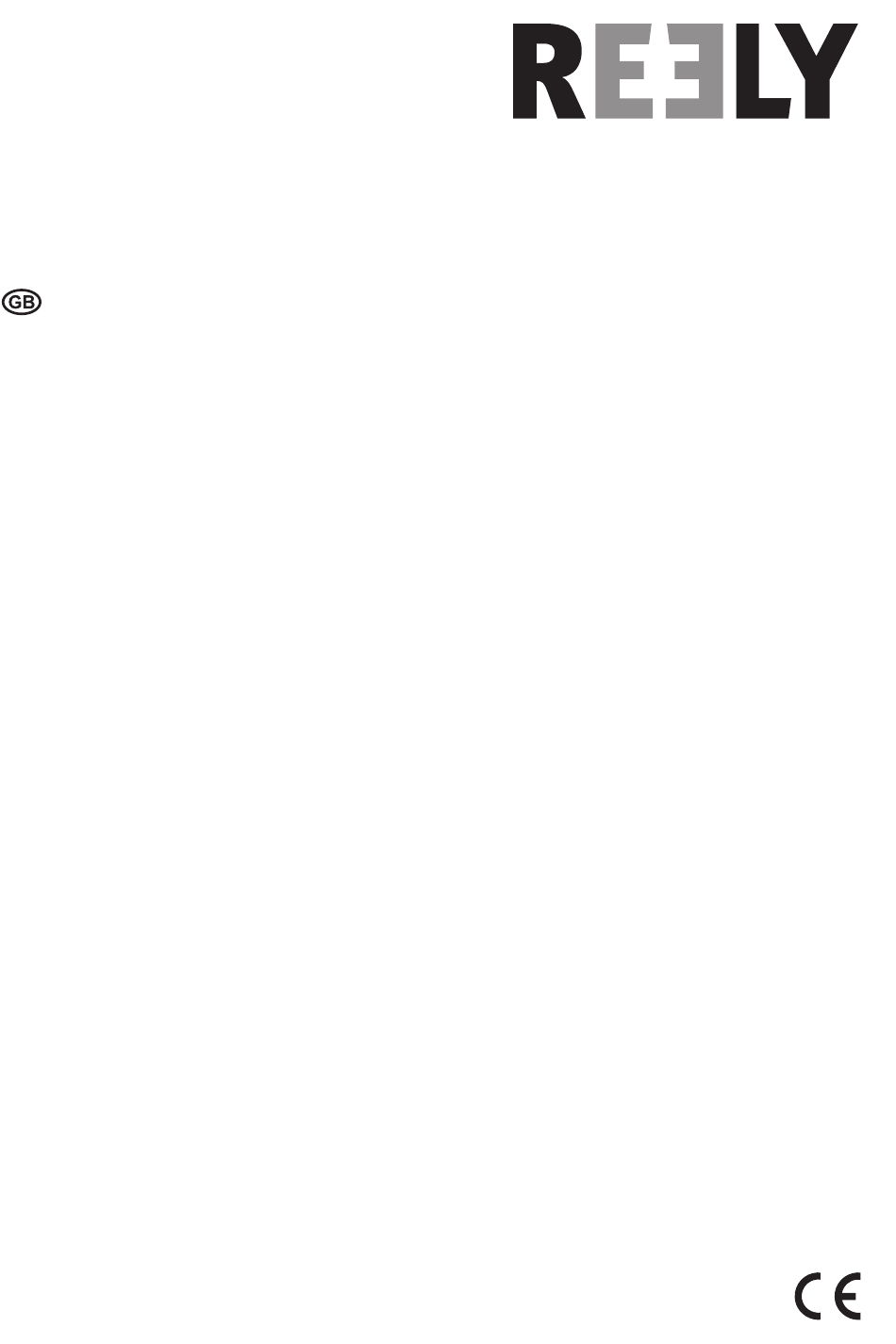

- Page 1 Operating instructions Electro-Quadrocopter "Nanocam" RtF Item No. 1413269 Version 03/16...
-
Page 2: Table Of Contents
Table of Contents Page Introduction ................................4 Explanation of Symbols ............................4 Intended Use ...............................5 Scope of Delivery ..............................5 Product Description .............................6 Safety Notes ................................7 a) General ................................7 b) Before Commissioning ..........................8 c) During Operation ............................8 Battery and Rechargeable Battery Notes ......................9 Operating Elements of the Transmitter ......................10 Setting up the Transmitter .......................... - Page 3 Page 17. Maintenance and Care ............................31 a) General ................................31 b) Replacing the Propellers ..........................31 18. Disposal ................................32 a) General ................................32 b) Batteries and Rechargeable Batteries ......................32 19. Declaration of Conformity (DOC) ........................32 20. Troubleshooting ..............................33 21. Technical Data ..............................34 a) Transmitter..............................34 b) Quadrocopter ...............................34...
-
Page 4: Introduction
Introduction Dear Customer, Thank you for purchasing this product. This product complies with the statutory national and European requirements. To maintain this status and to ensure safe operation, you as the user must observe these operating instructions! These operating instructions are part of this product. They contain important notes on commissioning and handling. -
Page 5: Intended Use
Intended Use This product is an electrically powered helicopter-like model with wireless radio control via the remote control system included in the delivery. The quadrocopter is solely designed for private use in the field of model construction and the operating times associated with it. The model is designed for operation indoor but may also be used outdoors at totally calm conditions. -
Page 6: Product Description
Product Description The ready-to-fly quadrocopter has 4 separate motors that drive one propeller each. Concurrent acceleration of all propellers permits the quadrocopter to lift off of the ground and hover stably in the air at the corresponding propeller speeds. For stabilisation in flight, the quadrocopter has elaborate gyro electronics able to recognise uncontrolled movements of the model and balance them out without delay. -
Page 7: Safety Notes
Safety Notes In case of damage caused by non-compliance with these operating instructions, the warranty/guar- antee will expire. We do not assume any liability for consequential damage! We do not assume any liability for property damage or personal injury caused by improper use or non-compliance with the safety instructions! In such cases the warranty/guarantee is voided. -
Page 8: B) Before Commissioning
b) Before Commissioning • Switch on the transmitter and then the quadrocopter. This is the only way for an attunement function to take place between transmitter and receiver, so that your model will react reliably to the control commands of your transmitter. •... -
Page 9: Battery And Rechargeable Battery Notes
Battery and Rechargeable Battery Notes Although use of batteries and rechargeable batteries in everyday life is a matter of course today, there are many dangers and problems. Ensure that you observe the following general information and safety information when handling batteries and rechargeable batteries. -
Page 10: Operating Elements Of The Transmitter
Operating Elements of the Transmitter View from the front: Figure 1 1 LED display 2 Trim buttons for nod function 3 Pushbutton for photo function 4 Control lever for nod and roll functions 5 Trim buttons for roll function 6 On/off switch 7 Pushbutton for return function 8 Pushbutton for headless mode 9 Control lever for the pitch and yaw functions... -
Page 11: Setting Up The Transmitter
Setting up the Transmitter In the further course of these instructions, figures in the text always refer to the adjacent figure or the figures within the section. References to other figures are indicated with the corresponding figure number. a) Inserting the Batteries The power supply of the transmitter requires 3 AAA/micro batteries (e.g. -
Page 12: B) Switching On The Transmitter
b) Switching on the Transmitter Move the control lever for the pitch and yaw functions (also see figure 1, item 9) to the bottom position right at your body. Slide the on/off switch (also see figure 1, item 6) from the left position "OFF"... -
Page 13: Commissioning Of The Quadrocopter
Commissioning of the Quadrocopter a) Charging the Flight Battery Caution, important! The flight battery is firmly integrated in the quadrocopter and cannot be removed for charging. Therefore, place the quadrocopter on a fire-proof underground when charging and do not charge the flight battery unsupervised. -
Page 14: B) Checking The Drive
The operating system does not recognize any new hardware after connection, because the USB port is only used for power supply. Please observe that the USB ports of your computer/notebook are usually only active when the computer/notebook is switched on. Therefore, we recommend to only connect the charging cable to a computer/notebook that is switched on. -
Page 15: C) Switching On The Quadrocopter
c) Switching on the Quadrocopter For the receiver in the quadrocopter to react to the transmitter signals, the receiver and transmitter must have the same digital encoding (binding). For this reason, it is important that you perform the activation process according to the following description. - Page 16 Attention! The quadrocopter has two more LED displays at the top. If no memory card is inserted in the quadrocop- ter, the red LED at the front left motor arm (1) will flash. When a memory card is inserted and has been recognised, the red LED will remain dark after activation.
-
Page 17: D) Basic Information Relevant To The Control Of Quadrocopters
d) Basic Information Relevant to the Control of Quadrocopters Before you fly your model, you should first familiarise yourself with the control possibilities open to you and thereby be able to fly safely. The symmetrical setup of the model makes it very difficult to assign the alignment (front/rear). Therefore, the two front propellers are of white plastic and the two rear propellers of black plastic. - Page 18 Yaw Function The two right-ward turning and the two left-ward turning propellers balance out the torques acting on the model. The quadrocopter hovers stably. If the control lever for the yaw function (also see figure 1, item 9) is moved to the left, the electronics in the model will increase the speed of the propeller turning to the right (clockwise) viewed from above and at the same time reduce the speed of the propellers turning to the left (counter-clockwise).
- Page 19 Nod Function The nod function allows you to move your quadrocopter forward and backward (see figure 11). This is also controlled with the right control lever (also see figure 1, item 4). If the lever is slightly pushed to the front, the electronics in the quadrocopter change the propeller speeds so that the model will turn to the front slightly and thus also fly forward.
-
Page 20: E) Practical Flight Advice For The First Start
e) Practical Flight Advice for the First Start • Even if the model can fly in the narrowest spaces, for the first test flights, we recommend using a free space of about 3 x 3 m. • The support should be flat (tiles, parquet flooring, or similar) to allow you to determine even before take-off if the model tends to drift off in a particular direction. -
Page 21: F) Trimming The Quadrocopter
f) Trimming the Quadrocopter First start the transmitter, then the model. Push the pitch lever (also see figure 1, item 9) from the bottom position (motors off) carefully forward and observe the response of your model. Shortly before the quadrocopter starts hovering, you can already determine in which direction your model wants to move. - Page 22 Nod trimming: If the quadrocopter tries to drift forward, reduce the speed until the quadrocopter is safely on its landing struts again. Push the bottom trim button for the nod function several times (also see figure 1, item 2). Push the pitch lever carefully forward and check if the adjustment was sufficient. Repeat the procedure until the model does not show any tendency to drift to the front.
-
Page 23: Dual Rate Switching
Dual Rate Switching The remote control permits individual adjustment of the control sensitivity of the quadrocopter with the dual rate func- tion. The following modes are available to you: Beginner mode After activating the remote control transmitter, beginner mode is activated automatically. In this flight mode, the quad- rocopter reacts less strongly to the control commands of the transmitter and thus can be controlled very precisely. -
Page 24: Flip Function
Flip Function The quadrocopter is able to fly flips as well if desired. The first flips should be flown outdoors on a wind-still day. For this, first let the quadrocopter rise to a safety height of approx. 3 - 4 m and then let it hover. To switch the transmitter to flip mode, push the control lever for the nod and roll functions from above (also see figure 1, item 4). -
Page 25: Flying In The Headless Mode
Flying in the Headless Mode The movement direction of the quadrocopter always depends on the direction in which the model is aligned with the pilot or from which side the pilot looks at the quadrocopter. It is very easy to give the wrong command if you are not looking at the model from behind, but from the side or front. -
Page 26: Return Function
Return Function The quadrocopter has a return function where it flies backwards independently. This is the opposite direction from that in which it was aligned when switching on (see figure 18, ill. A). As in headless mode, it is not relevant in which direction the front of the quadrocopter is currently pointing (see figure 18, ill. -
Page 27: Commissioning Of The Installed Camera
Commissioning of the Installed Camera The quadrocopter has an integrated camera that is aligned forward in the flight direction. With the help of this camera, videos or photographs can be recorded on the enclosed microSDHC memory card during the flight. Use the two control buttons at the transmitter to start and stop the video recording or record photographs (see figure 1, items 10 and 3). -
Page 28: B) Recording Videos
b) Recording Videos First switch on the transmitter and then the quadrocopter. If the memory card has not been inserted or not correctly inserted, the LED of the camera electronics (see figure 20, item 3) will flash red. If the memory card is inserted cor- rectly and has been recognised by the electronics, the LED will not be lit. -
Page 29: D) Read Videos And Photographs
d) Read Videos and Photographs After touch-down, switch off the quadrocopter and remove the memory card (1) from the card chute. The photo and video data can then be read on a notebook or PC with the enclosed USB memory card reader (2). For this, the memory card must be pushed into the USB memory card reader gently. -
Page 30: Calibration Of The Position Sensors
Calibration of the Position Sensors If the quadrocopter does not hover stably in place, but keeps flying in one direction, this can be fixed with the trim. If the trim must be adjusted very far, you may need to recalibrate the position sensors in the model. Proceed as follows: First switch on the transmitter and then the quadrocopter. -
Page 31: Maintenance And Care
Maintenance and Care a) General Clean the exterior of the model and the remote control only with a soft, dry cloth or brush. Never use abrasive cleaning agents or chemical solutions as these could damage the surfaces of the casings. The propellers must move smoothly and the motor shafts must neither be bent nor have any play in their bearings. -
Page 32: Disposal
Disposal a) General Electronic devices are recyclable and should not be disposed of in household waste. At the end of its service life, dispose of the product according to the relevant statutory regulations. Remove any inserted batteries/rechargeable batteries and dispose of them separately from the product. b) Batteries and Rechargeable Batteries You as the end user are required by law (Battery Ordinance) to return all used batteries/rechargeable batteries. -
Page 33: Troubleshooting
Troubleshooting Even though the model and the remote control system were built to the state of the art, there may still be malfunctions or faults. For this reason, we would like to give you some information on how to deal with possible problems. Problem Remedy Transmitter doesn’t respond. -
Page 34: Technical Data
Technical Data a) Transmitter Frequency range ..........2.4 GHz Channel number ..........4 Operating voltage ..........4.5 V/DC via 3 AAA/micro batteries Transmitter range ..........30 - 50 m Dimensions (W x H x D) ........120 x 80 x 55 mm Weight incl. - Page 36 Legal Notice This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication represent the technical status at the time of printing.
