INSTALLATION INSTRUCTION FOR #2260V SERIES

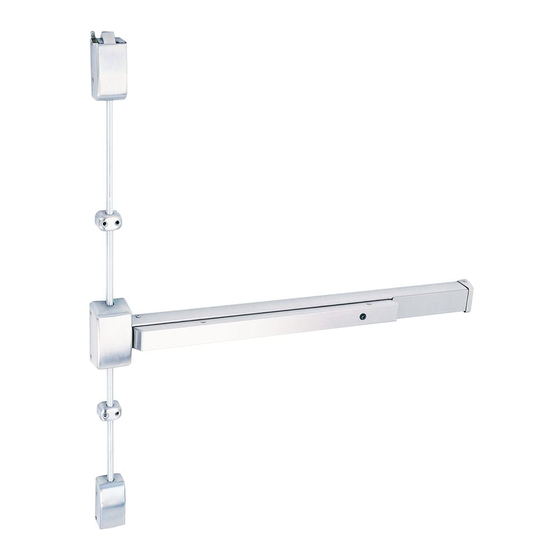

FIRE VERTICAL ROD EXIT DEVICE

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2260V Series and is the answer not in the manual?

Questions and answers

Related Manuals for Cal-Royal 2260V Series

Summary of Contents for Cal-Royal 2260V Series

  • Page 1 INSTALLATION INSTRUCTION FOR #2260V SERIES FIRE VERTICAL ROD EXIT DEVICE...

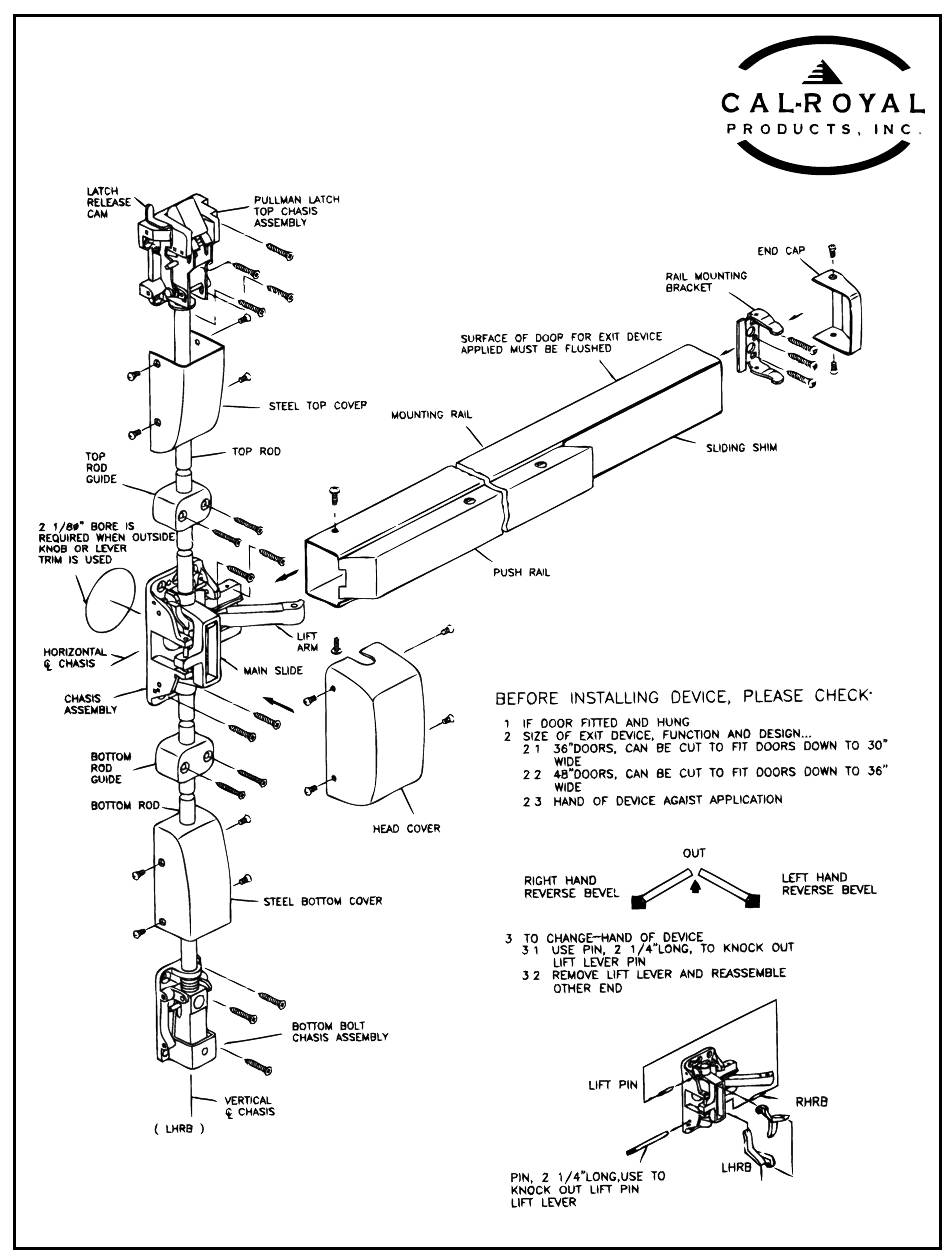

  • Page 2 MARK VERTICAL AND HORIZONTAL ATTACH TOP AND BOTTOM CHASSIS REFERENCE LINE ON DOOR PULLMAN LATCH TOP CHASSIS ASSEMBLY ADJ PIN RETRACTOR TOP DOOR STRIKE TOP ROD MAIN SLIDE BOTTOM ROD GUIDE MOUNT TOP STRIKE PER LOCATION IN 2ND STEP. SCREW TOP ROD INTO MAIN SLIDE. SLIDE GUIDE AND COVER ON TO TOP ROD AND ASSEMBLE CHASSIS BY INSERTING ADJ PIN THRU BOTTOM ROD...
