Helmholz TS 300 GSM User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

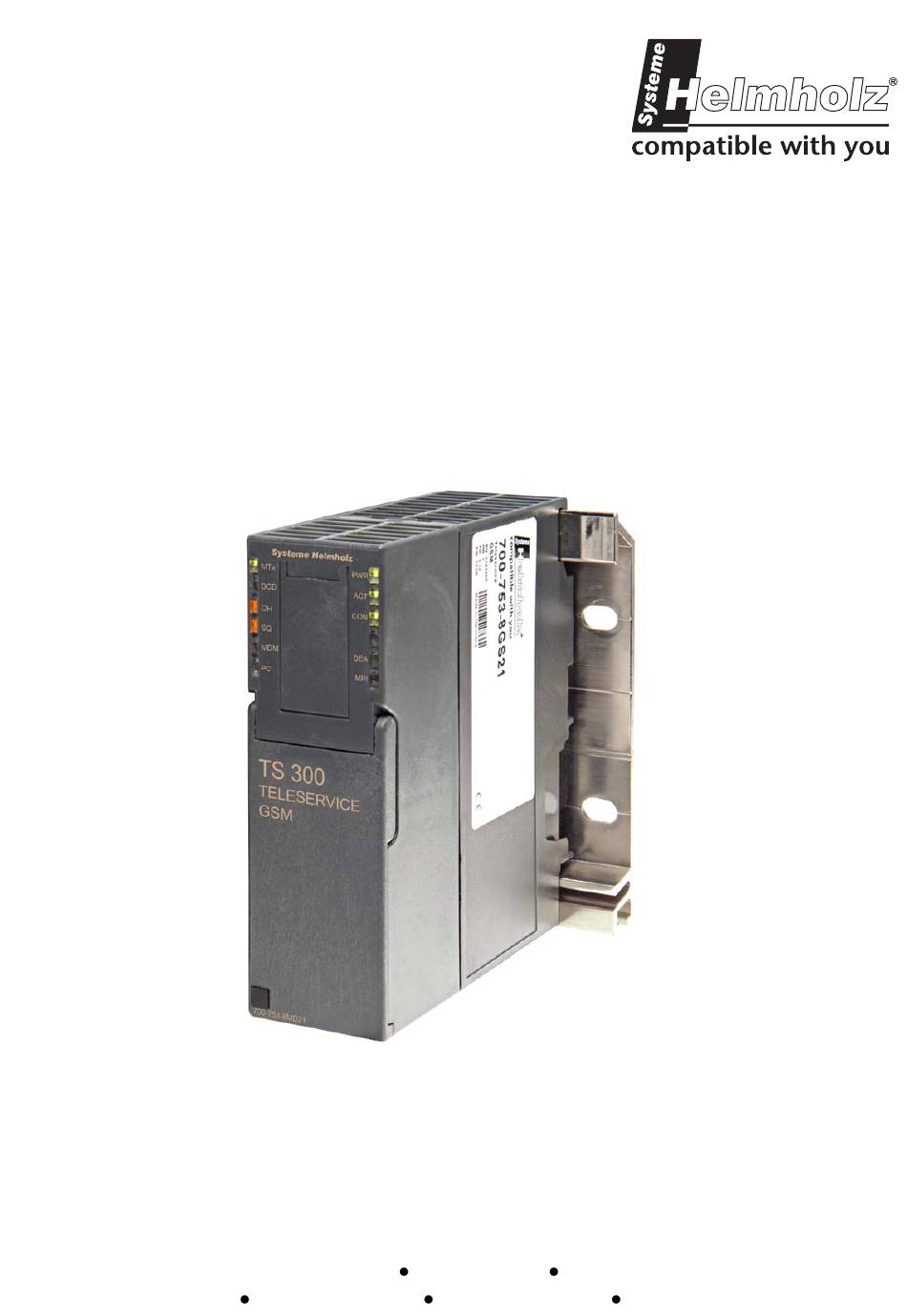

TS 300 GSM
700-753-8GS21
User Manual
Edition 3 / 16.03.2009
HW 2-2 and FW 3.22 and higher
Order number of manual: 900-753-8GS21/en
Systeme Helmholz GmbH
Hannberger Weg 2
91091 Großenseebach
Phone: +49 9135 7380-0
Fax: +49 9135 7380-110
E-Mail: info@helmholz.de
Internet: www.helmholz.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS 300 GSM and is the answer not in the manual?

Questions and answers

Related Manuals for Helmholz TS 300 GSM

Summary of Contents for Helmholz TS 300 GSM

  • Page 1 TS 300 GSM 700-753-8GS21 User Manual Edition 3 / 16.03.2009 HW 2-2 and FW 3.22 and higher Order number of manual: 900-753-8GS21/en Systeme Helmholz GmbH Hannberger Weg 2 91091 Großenseebach Phone: +49 9135 7380-0 Fax: +49 9135 7380-110 E-Mail: info@helmholz.de...
  • Page 3 (photocopy, microfilm, or other method) without the express written permission of Systeme Helmholz GmbH, not even for use as training material, or using electronic systems. All rights reserved in the case of a patent grant or regis- tration of a utility model or design.
  • Page 4 Revision history of this document: Edition Date Revision 16.03.2009 Edit technical specifications (P 58)

  • Page 5: Table Of Contents

    Contents Safety Information General Restriction of access Information for the user Use as intended Avoiding use not as intended! Installation and Mounting Vertical and horizontal mounting Minimum clearance Mounting of the module on the DIN rail System Overview Requirements for a GSM connection via CSD Application and function description Connections LED displays...
  • Page 6 Installation of the driver software and service tools System requirements Installation of the USB driver Installation of the modem driver Parameterizing and updating with SHTools 4.4.1 Firmware update 4.4.2 Parameterization with SHTools 4.4.3 Switching routes and outputs 4.4.4 Parameterization of the alarm messages Operation on a programmable controller MPI modes 5.1.1...
  • Page 7 Appendix Technical Data Pin assignments 9.2.1 Assignment of the MPI interface 9.2.2 Assignment of the USB interface 9.2.3 Power supply socket Further documentation TS 300...

  • Page 8: Safety Information

    Safety Information For your own safety and for the safety of others, always heed the safety information given here. The safety information indicates possible hazards and provides information about how you can avoid hazardous situations. The following symbols are used in this manual. Caution, indicates hazards and sources of error gives information hazard, general or specific...

  • Page 9: Restriction Of Access

    Restriction of access The modules are open equipment and must only be installed in electrical equipment rooms, cabinets, or housings. Access to the electrical equipment rooms, barriers, or housings must only be Only authorized persons must have access to the possible using a tool or key and only permitted to personnel modules! having received instruction or authorization.

  • Page 10: Installation And Mounting

    Installation and Mounting Installation and mounting must be effected in compliance with VDE 0100 / IEC 364. Because it is an IP20 module, you must in- Before you start stall it in a cabinet. installation work, all An ambient temperature of 0 to 60 ºC must be ensured for reliable system components must operation.

  • Page 11: Mounting Of The Module On The Din Rail

    The following diagram shows the minimum spacing between the module racks and between these and any adjacent cabinet walls, equipment, cable ducts, etc. for S7-300s mounted in several mod- ule racks. Non-observance of the minimum distances can destroy the module at high ambient temperatures! Mounting of the module on the DIN rail...
  • Page 12 Take the backplane bus connector off the last module and insert it into the CPU. Do not plug a backplane bus connector into the last module of the tier. Hook on the modules (1), slide them up to the left module (2), and click them downward (3).

  • Page 13: System Overview

    System Overview Requirements for a GSM connection via CSD The TS 300 GSM can be operated on all GSM-compliant networks with the frequencies 850 MHz, 900 MHz, 1800 MHz, and 1900 MHz. By selecting the provider whose SIM card is inserted in the TS 300, the TS 300 should, after correct parameterization, auto- matically sign on to the available GSM network.

  • Page 14: Application And Function Description

    Application and function description The TS 300 is a gateway between the USB or modem and an MPI bus. The USB interface can also be directly connected to the modem to implement communication away from the MPI bus. The integrated quadband GSM module of the TS 300 is suitable for industrial applications and supports the common GSM trans- mission standard CSD (Circuit Switched Data).

  • Page 15: Connections

    • On the rear of the module, there is the connection for the backplane bus of a S7-300 system to make it as easy as possible to exchange data between the CPU and the TS 300. Systeme Helmholz LED displays OFF / ON...

  • Page 16: Led Displays

    LED displays The TS 300 has nine LEDs, including two two-color LEDs, to indi- cate its operating status. These LEDs can be roughly divided into four groups: • Status LEDs for standard and MPI functions • Status LEDs for backplane bus functions •...

  • Page 17: Status Leds For Modem Functionality

    3.4.3 Status LEDs for modem functionality The three LEDs “MTx”, “DCD”, and “SQ”, indicate the status of the integrated modem. LED status for operating MTx LED DCD LED SQ LED SQ LED status (green) (orange) (orange) (green) Modem transmitting data to TS 300 or USB without tele- BLINK communication link...

  • Page 18: Dip Switches Dea And Mpi

    The TS 300 can be operated on the local computer as the TS adapter (MPI) or as a PC adapter (MPI) (see Section 5.2). The modem is inactive in this switch position. • In switch position “MDM”, the internal modem functions di- rectly with the USB interface.

  • Page 19: Interface Switchover Via A Telecommunication Link

    3.6.3 Interface switchover via a telecommunication link The operating mode of the TS 300 set by default with the micro- switch can be reset using the SHTools locally or remotely. On changing the operating mode with SHTools, a timeout be- tween one minute and 20 minutes is passed.

  • Page 20: Gsm Antennas And Antenna Accessories

    3.8.3 GSM antennas and antenna accessories Stationary triband antenna 700-751-ANT01 Quadband magnetic mount antenna 700-751-ANT02 Patch triband antenna 700-751-ANT03 Portable quadband antenna 700-751-ANT04 GSM antenna extension cable, 5 m 700-751-ANK01 GSM antenna extension cable, 10 m 700-751-ANK02 GSM antenna extension cable, 15 m 700-751-ANK03 3.8.4 Miscellaneous...

  • Page 21: Installation Of The Driver Software And Service Tools

    Installation of the driver software and service tools The CD supplied contains various drivers and service tools that have to be used for their respective purposes. System requirements To operate the driver and service tools of the TS 300, a PC or lap- top is required with a 32-bit Windows operating system and a CDROM drive.
  • Page 22 • The operating system starts an installation wizard that per- forms the installation, which is largely automatic. In the first step, you must enter whether the driver is to be searched for online or locally. • To be able to specify the search path for the driver (generally the CD supplied), it is necessary to make the following setting and confirm it with “Next”.
  • Page 23 • The next step is a prompt to specify the location of the driver. It is generally enough to set a checkmark next to “Search re- movable media…” and then to click the “Next” button. • If the SSW7-Teleservice-Modem CD is in a local drive, the search for the driver now begins.
  • Page 24 • If the driver is found, a Windows XP logo compatibility query appears. • Confirm with the button “Continue anyway”. The driver is then installed. TS 300...

  • Page 25: Installation Of The Modem Driver

    • After successful installation, the operation is completed by clicking the “Finish” button. • The operating system starts the installation wizard a second time to install the virtual COM port driver, too. The installa- tion routine is identical to that described above. A new COM port is now added in the device manager.
  • Page 26 in the central position “MDM” and the USB cable plugged into the TS 300. • The internal GSM module does not support plug & play functionality. The "Phone and Modem Options" in the Control Panel are used to install the modem manually. •...
  • Page 27 • Setting the “Don’t detect my modem” checkmark causes the sys- tem’s own standard modem drivers to be listed. These can be selected once you have pressed the “Next” button. • Under Models, select “Standard 9600 bps Modem”. • The next step is to assign the COM port. The COM port must be selected that was set up by the USB driver in the device manager (see section 4.2).

  • Page 28: Parameterizing And Updating With Shtools

    • After successful installation, the operation is completed by clicking the “Finish” button. • A new modem with the corresponding COM port is now added in the phone and modem options. The TS 300 can now be used as the local modem for a telecom- munication link.

  • Page 29: Firmware Update

    COM port. The SHTools contain update functions for many adapters of Sys- teme Helmholz GmbH. How to perform an update is explained below. • Via menu item “Adapter / … select”, the required device is se- lected by its order number (in this case, the TS 300 with a GSM modem).
  • Page 30 • After selection of the “Adapter / Update adapter” menu item, it is possible to define the access path in step 1 (local or remote). • After step 1 is confirmed, an attempt to establish a link to the TS 300 follows. If this is successful, updating of the firmware sections, of which later versions are available, begins automati- cally.

  • Page 31: Parameterization With Shtools

    For updating via modem link, up to three automatic dial-up op- erations are required. • Step 4 shows that the update has been successful. • If the update is performed locally, the current version of the imported firmware can be read with menu item “Adapter / Read out information from the adapter”.
  • Page 32 With the “Adapter / Read parameters” menu item, it is possible to read the current parameterization out of the TS 300. The read parameters are displayed in the „Settings – TS adapter“ window. The window contains four tabs providing access to functionally independent parameterization options: •...
  • Page 33 In the figure above, the standard initialization string now in- cludes the function that presets the PIN of the SIM card (see Sec- tion 6.2.3.2). • Setting the transmission rate between the modem and TS 300 • Setting the access protection for remote access With the “Save / End”...
  • Page 34 4.4.2.1 PIN transfer during direct modem operation In micro-switch setting “MDM”, direct access to the modem of the TS 300 GSM is possible. However, in many cases a PIN is neces- sary to be able to use and query functions of the GSM network and the SIM card used.
  • Page 35 The “Request Data Mode” button is used to check whether your SIM card is activated for incoming data transfer (CSD). If this is not the case, the TS 300 GSM cannot be used for teleservice in a system. TS 300...

  • Page 36: Switching Routes And Outputs

    To query the data mode, it is necessary to select the TS 300 GSM through an analog or ISDN modem during the query by clicking the “Request Data Mode” button. 4.4.2.2 Activating the PIN with a personal unblocking key (PUK)
  • Page 37 After selection of the “Adapter / Control path/outputs” menu item, it is possible to define the access path in step 1 (local or remote). Select the correct COM port first! After the link to the TS 300 has been established, a selection win- dow appears in which control functions can be selected (depends on the type of access).

  • Page 38: Parameterization Of The Alarm Messages

    By operating the micro-switch for the operating modes of the TS 300, it is possible to overwrite mode settings made in the software locally at any time. • The outputs that are reflected on the IO image on the back- plane bus of the TS 300, can optionally be switched individu- ally or together.
  • Page 39 After the alarming function has been enabled, you can state a ser- vice number and configure the two alarm messages as you re- quired. The required parameterization is stored permanently by pressing the “Set” button. Activation of the alarm inputs by a user program in a S7-300 con- troller is described in Section 7.1.1.

  • Page 40: Operation On A Programmable Controller

    CPU, a Profibus or MPI cable is used to interconnect the commu- the front MPI connector of nication components. the TS 300. Systeme Helmholz GmbH offers a 50-cm MPI connecting cable made up especially for the TS 300 (see Section 3.8.4). But any Profibus connecting cable can be used. 5.1.2...

  • Page 41: Usb Direct Operation On A Programming Device/Pc

    USB direct operation on a programming device/PC To be able to use the TS 300 like a local TS adapter, in addition to the existing USB link to the local computer, the micro-switch for the operating modes must be in the “PC” position. The LED with the name “PC”...

  • Page 42: Configuration Of The Simatic Tools

    Configuration of the Simatic tools TS 300 in direct operation The TS 300 is connected with the programming device or PC for direct operation via the USB cable supplied. If the micro-switch is in the “PC” position, which is indicated by a green "PC"...

  • Page 43: Ts 300 For Teleservice (Modem Operation)

    Under “Properties”, the MPI settings and the COM port have to be changed before first use. TS 300 for TeleService (modem operation) To select a TS 300, an analog, GSM, or ISDN modem is required on the programming device or PC. If a modem is already installed under Windows, this can also be used for TeleService.

  • Page 44: Settings On The Ts 300

    • The call-back function must be assigned an MSN (multiple sub- scriber number) for the data port on the local ISDN modem. • Call-back of the TS 300 GSM to an ISDN modem is only possi- ble if the B channel protocol in the GSM modem is set to V.110.

  • Page 45: Settings In The Programming Device Or Pc Interface

    6.2.2 Settings in the programming device or PC interface In the programming unit or PC interface, the “TS adapter” must be selected as the access point to be able to communicate with the remote programmable controller after selecting the TS 300 through TeleService.

  • Page 46: 6.2.3 Settings Through Teleservice

    6.2.3 Settings through TeleService For teleservice, you will also need an additional software module for your programming software, e.g. TeleService from Siemens (version 3.0 and later), to establish a link and manage further links (telephone book of stored systems). After you have created a telephone book entry for a system, a telecommunication link can be established via the telephone network.
  • Page 47 Via the SHTools, parameterization can only be performed locally. Direct (local) parameterization using the USB cable supplied on the programming device or PC interface and the TeleService soft- ware is described below. The micro-switch on the TS 300 must be in the “PC” position, which is indicated by the lit green “PC”...
  • Page 48 6.2.3.2 Modem parameters The “Modem” tab of the “Parameterize adapter” window contains all modem-specific parameters that can be influenced. The semicolon separates the first and second AT command sequence and must not be omitted! For call-back from GSM to an ISDN modem, further parameters must be set.
  • Page 49 The command sequence for passing on the PIN has the following meaning: Initiate modem commands +CPIN= Command identifier for PIN transfer “9135“ The actual PIN that is placed in quotation marks Separator between two AT command sequences The PIN is generally four digits long, for example “9135” or “1111”.
  • Page 50 When combined with the standard initialization string, the AT can be omitted. 6.2.3.3 Serial parameters The “Serial parameters” tab of the “Parameterize adapter” window contains all parameters for serial communication that can be in- fluenced. 6.2.3.4 Access protection and the call-back function The “Access protection”...
  • Page 51 Via this tab card, the TS 300 can be configured to permit teleser- vice via the TeleService software only with the relevant authoriza- tion. Please note that “Users” created via a telecommunication line can only reparameterize their own access account. The administrator, on the other hand, can change all three user accounts via a tele- communication link.

  • Page 52: Io Functionality Of The Ts 300

    IO functionality of the TS 300 If the TS 300 is implemented as a digital IO module in the hard- ware configuration of an S7-300, 16 inputs and 16 outputs are available for service and parameterization purposes. In this case, it is necessary to select the module with order num- ber “6ES7 323-1BL00-0AA0”...

  • Page 53: Output Word Of The Dio16

    Output word of the DIO16 The following table shows which output bits of the CPU trigger functionality in the TS 300. If output address byte “0..1” is assigned to the TS 300 in the hardware configuration, • output byte “n” stands for output address “0” and •...

  • Page 54: Further Functions Of The Output Word

    7.1.2 Further functions of the output word If required, a modem reset can be initiated via bit 0 of output byte n+1 by applying a 1. This can be useful, for example, for parame- terization using third-party tools. Further functionalities are currently not implemented. Input word of the DIO16 The following table shows which input bits of the CPU function- ality/status information are mapped by the TS 300.

  • Page 55: Operating Status Of The Ts 300

    7.2.3 Operating status of the TS 300 The LEDs for status display of the TS 300 (“PWR”, “ACT”, and “CON”) are reflected on the backplane bus and can be evaluated by the user program of the S7-300 controller. 7.2.4 Status of the interface If the internal modem of the TS 300 is involved in the current communication, the status of the “DCD”...

  • Page 56: Troubleshooting

    If a problem is not described here and this manual does not pro- vide any information on how to remedy it, the support of Sys- teme Helmholz GmbH will gladly help you to solve the problem. Q: I have installed the USB driver for the TS 300 to use directly on my PC.
  • Page 57 Q: What must I observe when calling your technical support? A: Please have all relevant data of your system constellation with the connected stations and program modules at hand when you contact technical support at Systeme Helmholz GmbH. TS 300...
  • Page 58 Appendix Technical Data Device type 700-753-8GS21 (GSM) Degree of protection IP 20 Dimensions 116 x 40 x 124 mm (LxWxH) Weight Approx. 280 g +24 V DC ± 25 %, external Operating voltage Current consumption Typically 170 mA Temperature during operation 0 °C to +60 °C Temperature during storage/transportation -20 °C to +60 °C...
  • Page 59 USB hubs with an external power supply. 9.2.3 Power supply socket If an external power supply is used, please make sure the polarity is correct and all technical data are complied with. Further documentation Internet: http://www.helmholz.de http://www.usb.org http://www.siemens.com TS 300...
  • Page 60 Notes TS 300...
